Expanding and assigning parameters to the device
5.3 Installing and removing M.2 NVMe/ SATA SSD
SIMATIC IPC227G
48 Operating Instructions, 07/2022, A5E50059933-AC

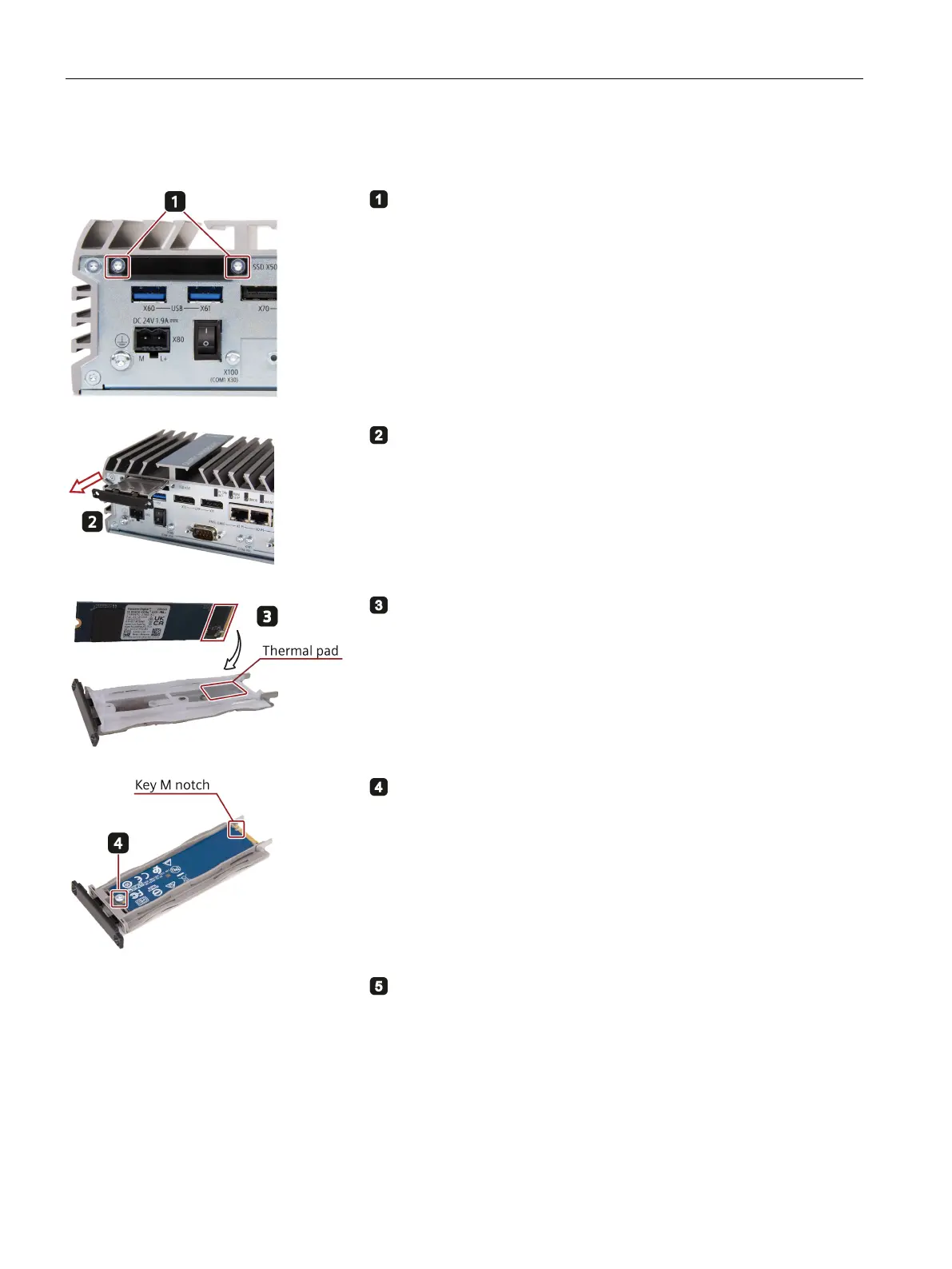

Procedure - installing the M.2 NVMe/SATA SSD
Remove the two retaining screws.
Pull out the M.2 SSD slot.
Place the thermal pad to the corresponding position of the
M.2 NVMe/SATA SSD chip.
Place the M.2 NVMe/SATA SSD in the slot and secure it with
the designated screw.
Keep the Key M notch on the left side of the module as
Plug in the slot back into the device and tighten it with
designated screws.
Procedure - removing the M.2 NVMe/SATA SSD
To remove the M.2 NVMe/SATA SSD, carry out the steps for installing the M.2 NVMe/SATA
SSD in the reverse order.
