Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
82 Operating Instructions, 04/2020, A5E49948632-AA

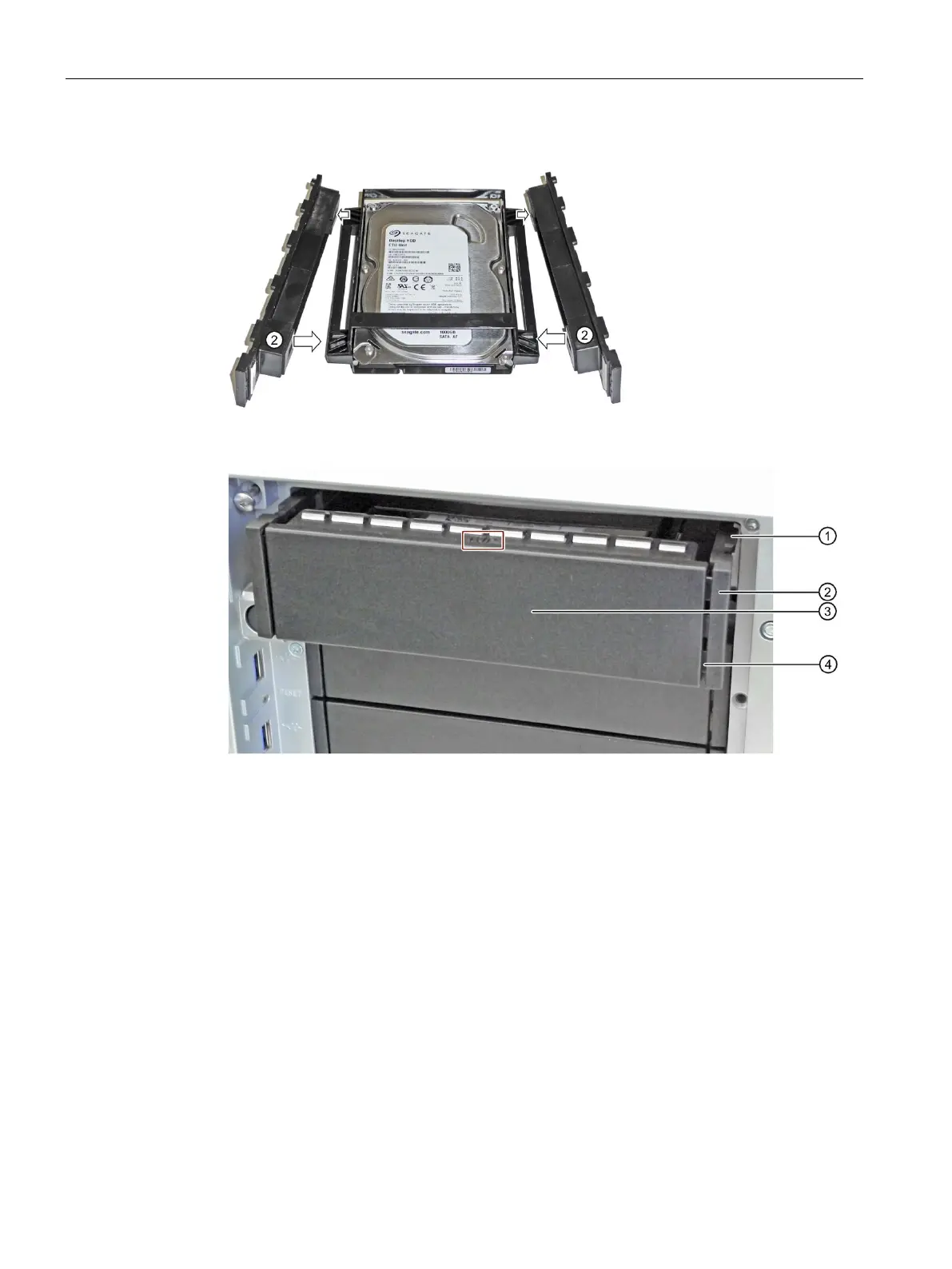

7. Attach the left and right drive mounting bars ② as shown.
8. Push the drive bay in the guide rail
① on the left and right 3/4 into the drive cage evenly
without tilting.
9. Insert the drive bay cover
③ between the drive mounting bars ②. The pins ④ must lock
into the openings
② on the left and right.
10.Push the drive bay in fully and evenly on the left and the right until you hear it click into
the drive cage.
11.Connect the power and data cables to the drive.
