Communication Ports
4
The RUGGEDCOM RST916C can be equipped with various types of communication
ports to enhance its abilities and performance.

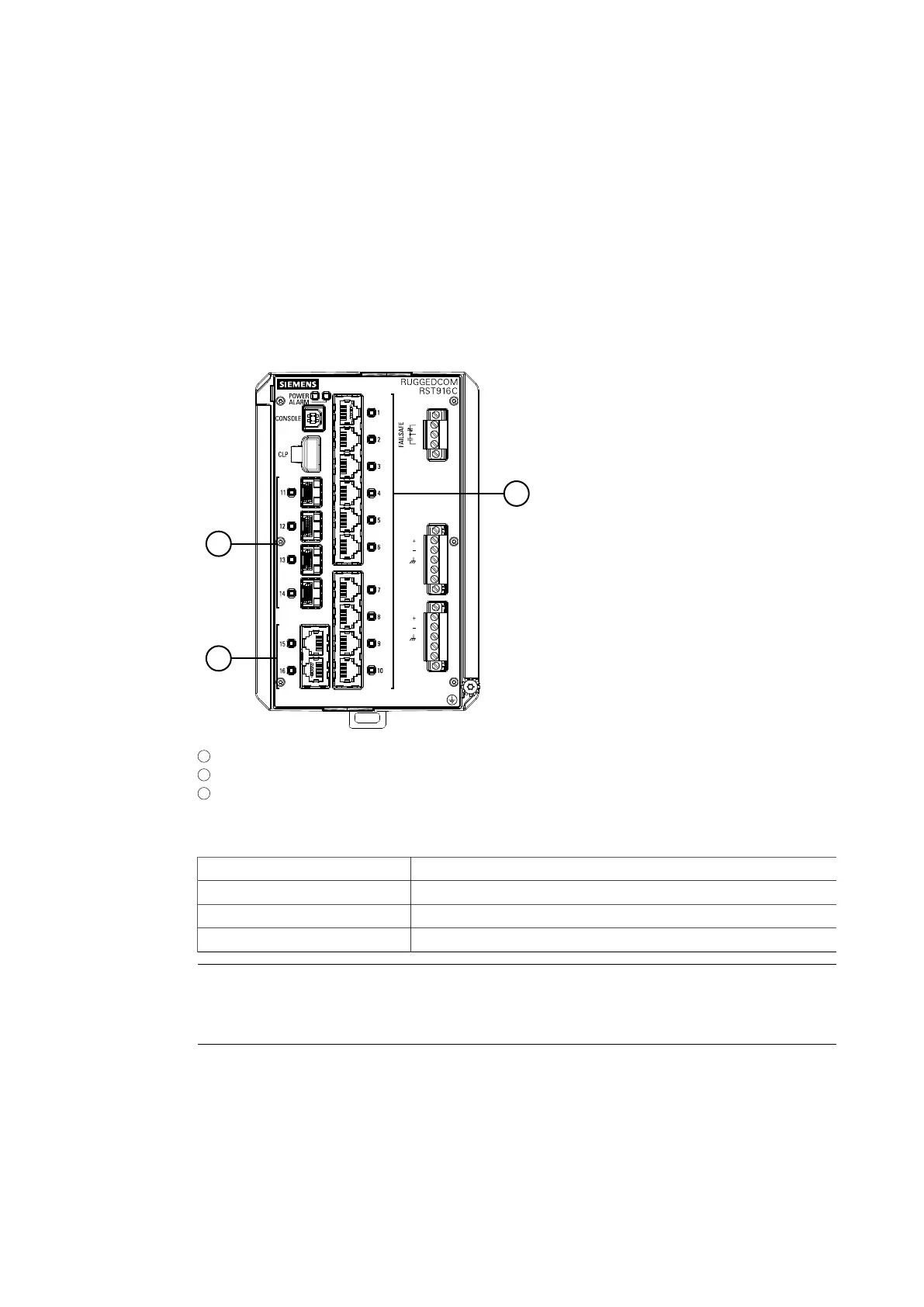

2
3
1
1
Ports 1 to 10
2
Ports 11 to 14
3
Ports 15 to 16
Figure4.1 Port Assignment
Port Type
1 to 10 Copper (10/100/1000Base-T) Ethernet Ports
11 to 14 SFP/SFP+ Transceivers
15 and 16 Copper (10/100/1000Base-T) Ethernet Ports
Note
When connecting the device to a 10 Gbps network, connect ports 11 and 12 and
ports 13 and 14 in pairs to guarantee non-blocking operation.
RUGGEDCOM RST916C
Installation Manual, 04/2023, C79000-G8976-1490-07
25
