Configuring with Web Based Management
5.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 03/2015, C79000-G8976-C267-08
111

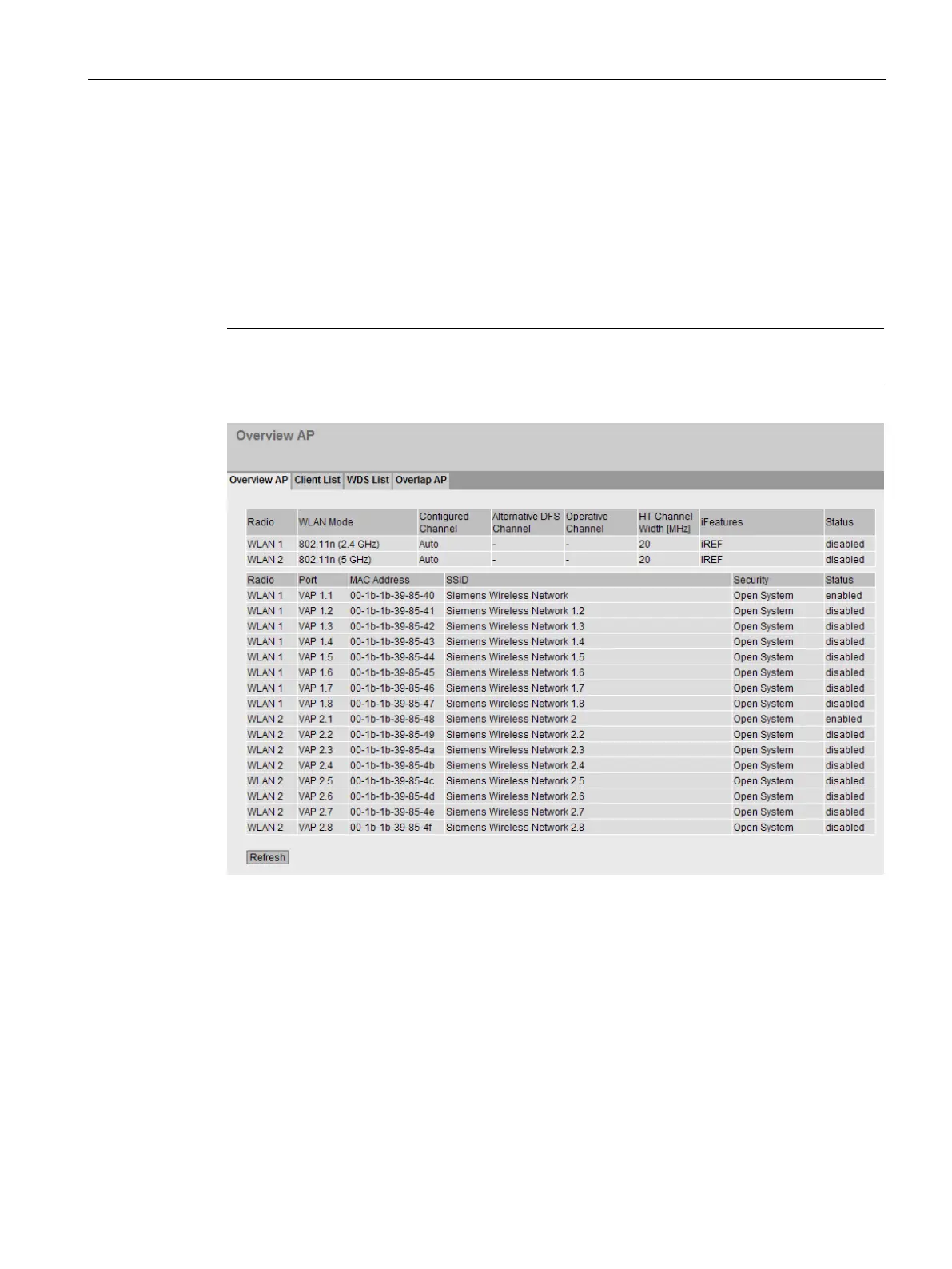

Overview AP
Overview of the configuration
This page shows these settings/properties of the WLAN or the WLAN interface.
Note
This tab is available only in access point mode.
Table 1 has the following columns:
●
Shows the available WLAN interfaces.
●
Shows the transmission standard. If DFS is activated, the transmission standard
"802.11h" is not shown additionally but only the configured transmission standard
"802.11a".
