Configuring with Web Based Management
5.7 "Layer 2" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
264 Configuration Manual, 03/2015, C79000-G8976-C267-08
5.7.5
LLDP
Identifying the network topology
LLDP (Link Layer Discovery Protocol) is defined in the IEEE 802.AB standard.
LLDP is a method used to discover the network topology. Network components exchange
information with their neighbor devices using LLDP.
Network components that support LLDP have an LLDP agent. The LLDP agent sends
information about itself and receives information from connected devices at periodic
intervals. The received information is stored in the MIB.
Applications
PROFINET uses LLDP for topology diagnostics. In the default setting, LLDP is enabled for
all ports; in other words, LLDP frames are sent and received on all ports. With this function,
you have the option of enabling or disabling sending and/or receiving per port.

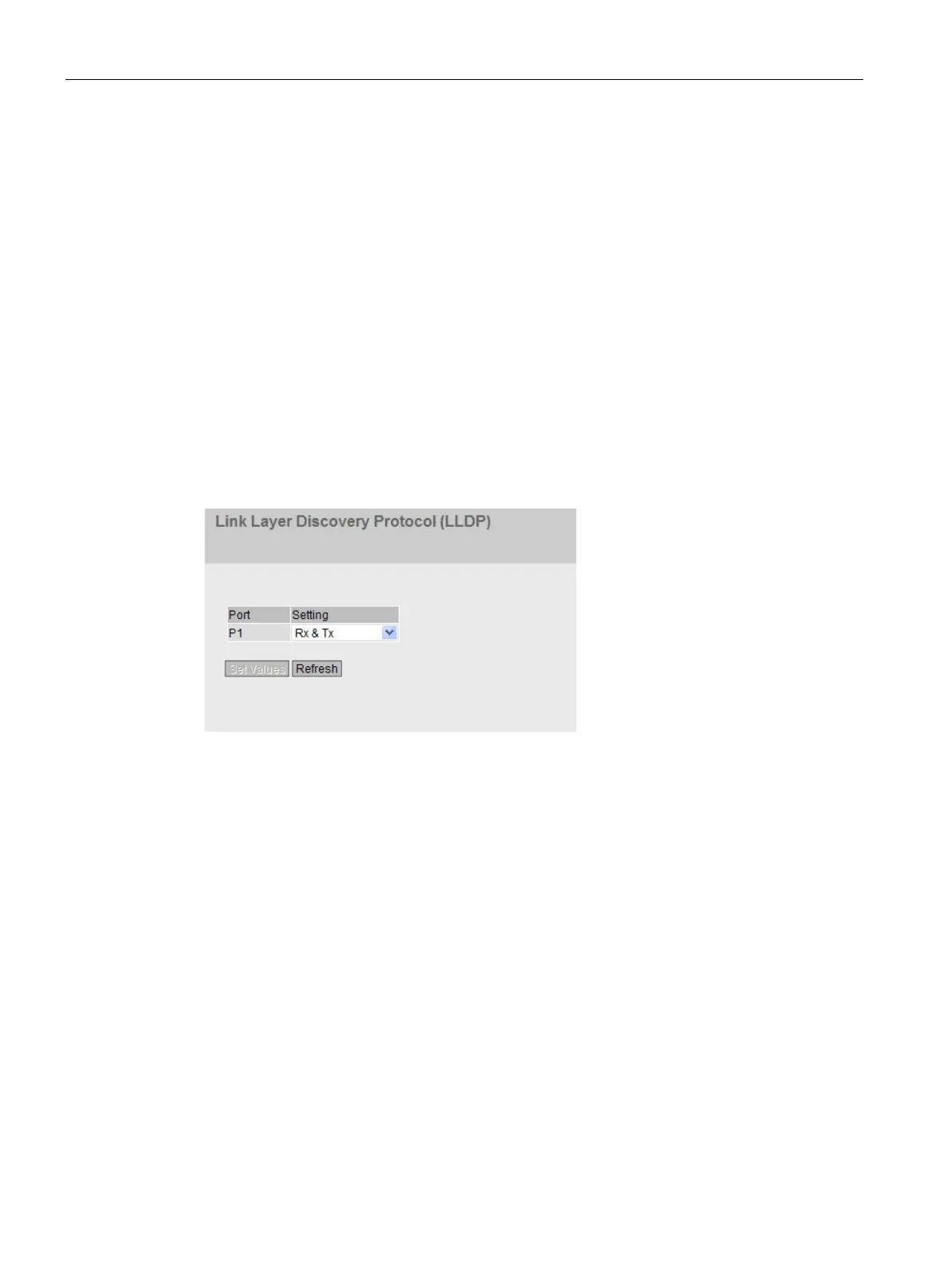

Description
The table has the following columns:
●
Port
Shows the port.
●
Setting
Specify the LLDP functionality. The following options are available:
– Tx
This port can only send LLDP frames.
– Rx
This port can only receive LLDP frames.
– Rx & Tx
This port can receive and send LLDP frames.
– "-" (Disabled)
This port can neither receive nor send LLDP frames.
