Configuring with Web Based Management
5.6 "Interfaces" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 03/2015, C79000-G8976-C267-08
235

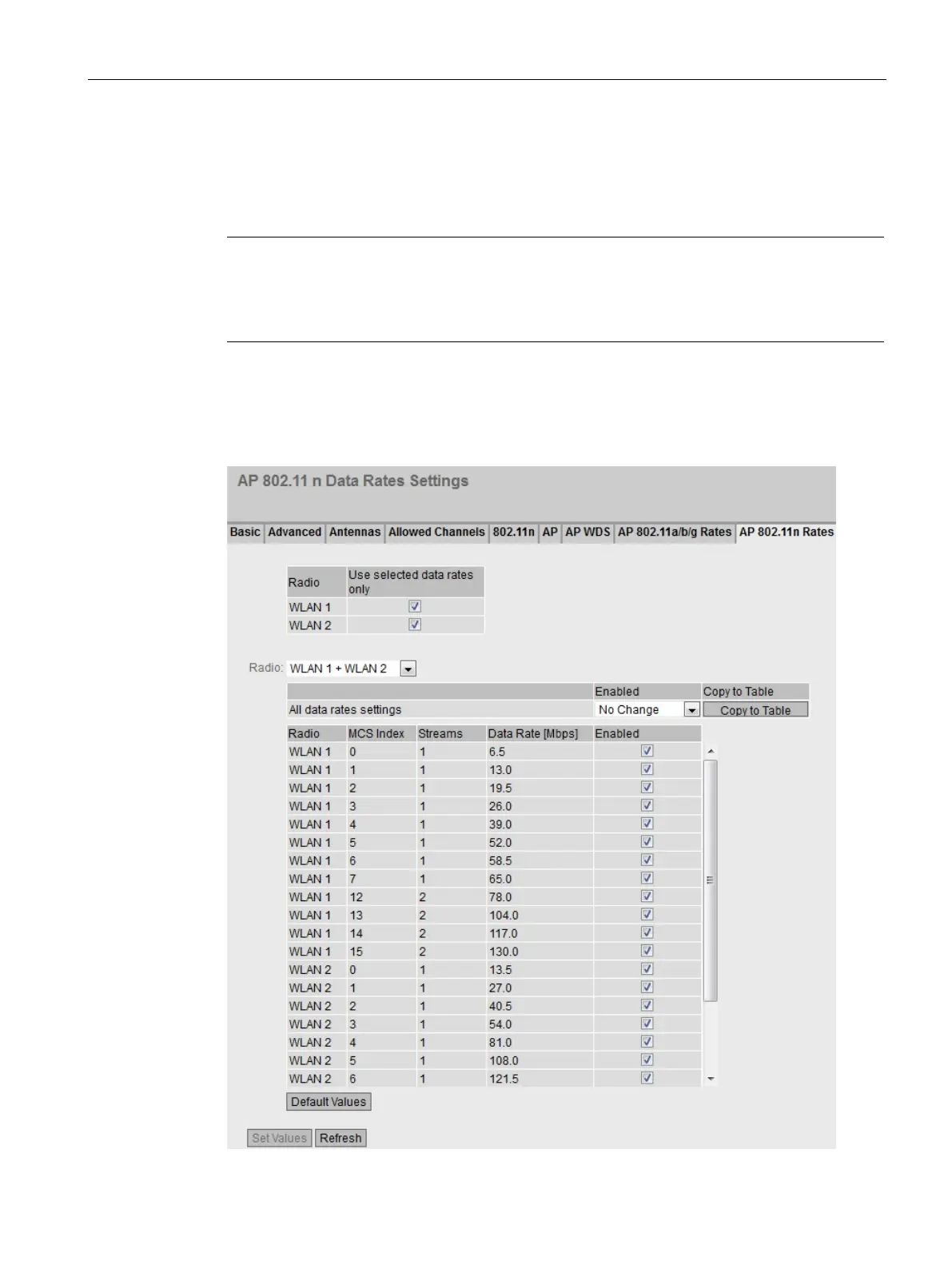

AP 802.11n Rates
Data transmission speeds in IEEE 802.11n
Note
The tab is available only in access point mode.
The WBM page can only be configured if "802.11n only" or "802.11n" is set for the WLAN
mode.
The WBM page shows the available data transmission speeds (MCS = Modulation and
Coding Schemes) for the WLAN mode 802.11n. You can select any combination of these
data transmission speeds. The access point will then use only the selected data
transmission speeds for communication with the clients.
