Siemens SIMATIC NET SCALANCE W700 Series User Manual

Configuring with Web Based Management
5.7 "Layer 2" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 03/2015, C79000-G8976-C267-08
259
5.7.3.4
MST general

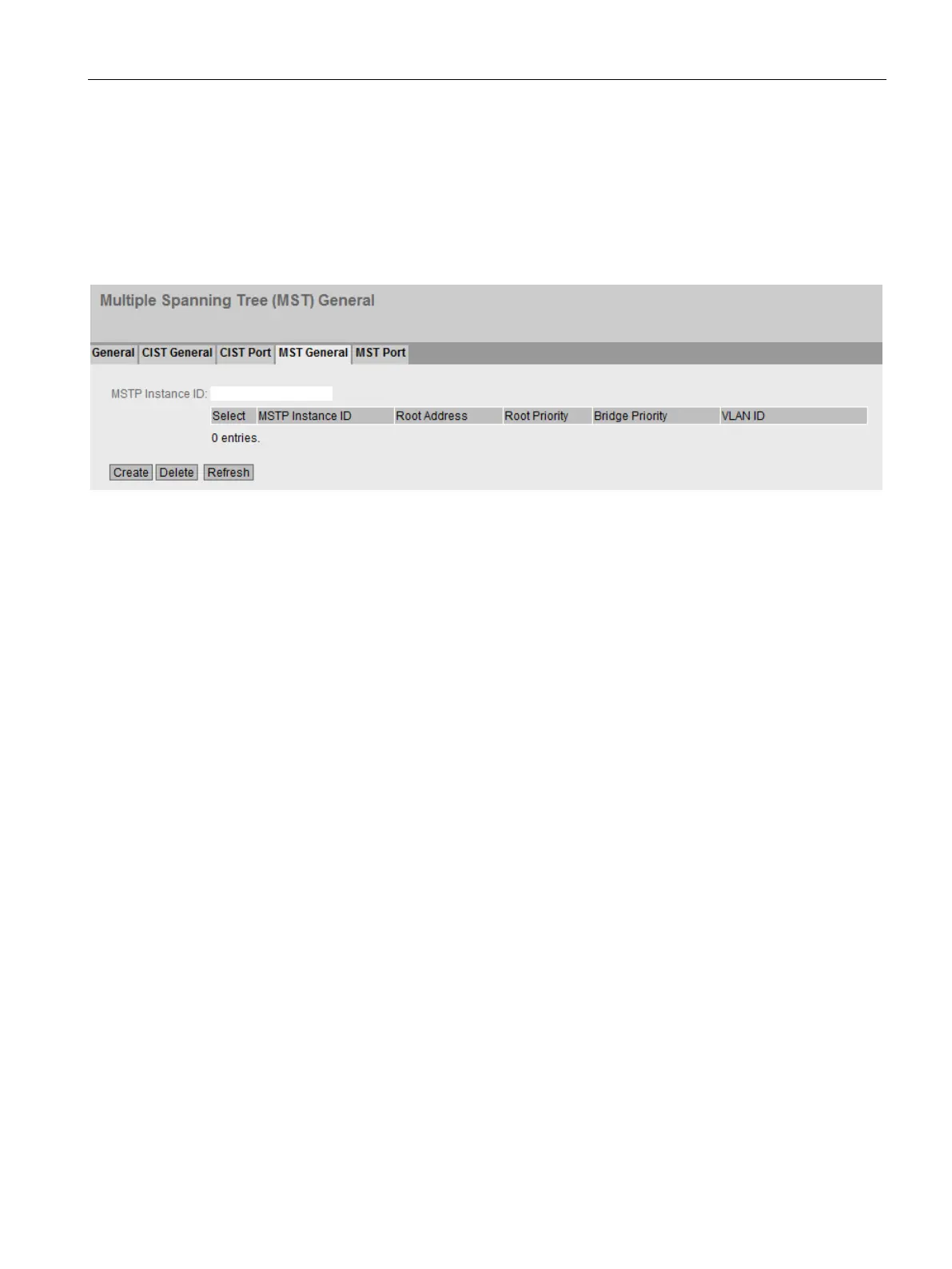

Multiple Spanning Tree configuration
With MSTP, in addition to RSTP, several VLANs can be managed in a LAN with separate
RSTP trees.
Description
The page contains the following box:
●
MSTP Instance ID
Enter the number of the MSTP instance.
Permitted values: 1 - 64
You can define up to 16 MSTP instances.
The table has the following columns:
●
Select
Select the row you want to delete.
●
MSTP Instance ID
Shows the number of the MSTP instance.
●
Root Address
Shows the MAC address of the root bridge
●
Root Priority
Shows the priority of the root bridge.
●
Bridge Priority
Enter the bridge priority in this box. The value for the bridge priority is a whole multiple of
4096 with a range of values from 0 to 61440.
●
VLAN ID
Enter the VLAN ID. Here, you can also specify ranges with Start ID, "-", End ID. Several
ranges or IDs are separated by ",".
Permitted values: 1- 4094
