Software section
3.2 Creating the program
S7-1500
Getting Started, 05/2014, A5E03981761-AC
63

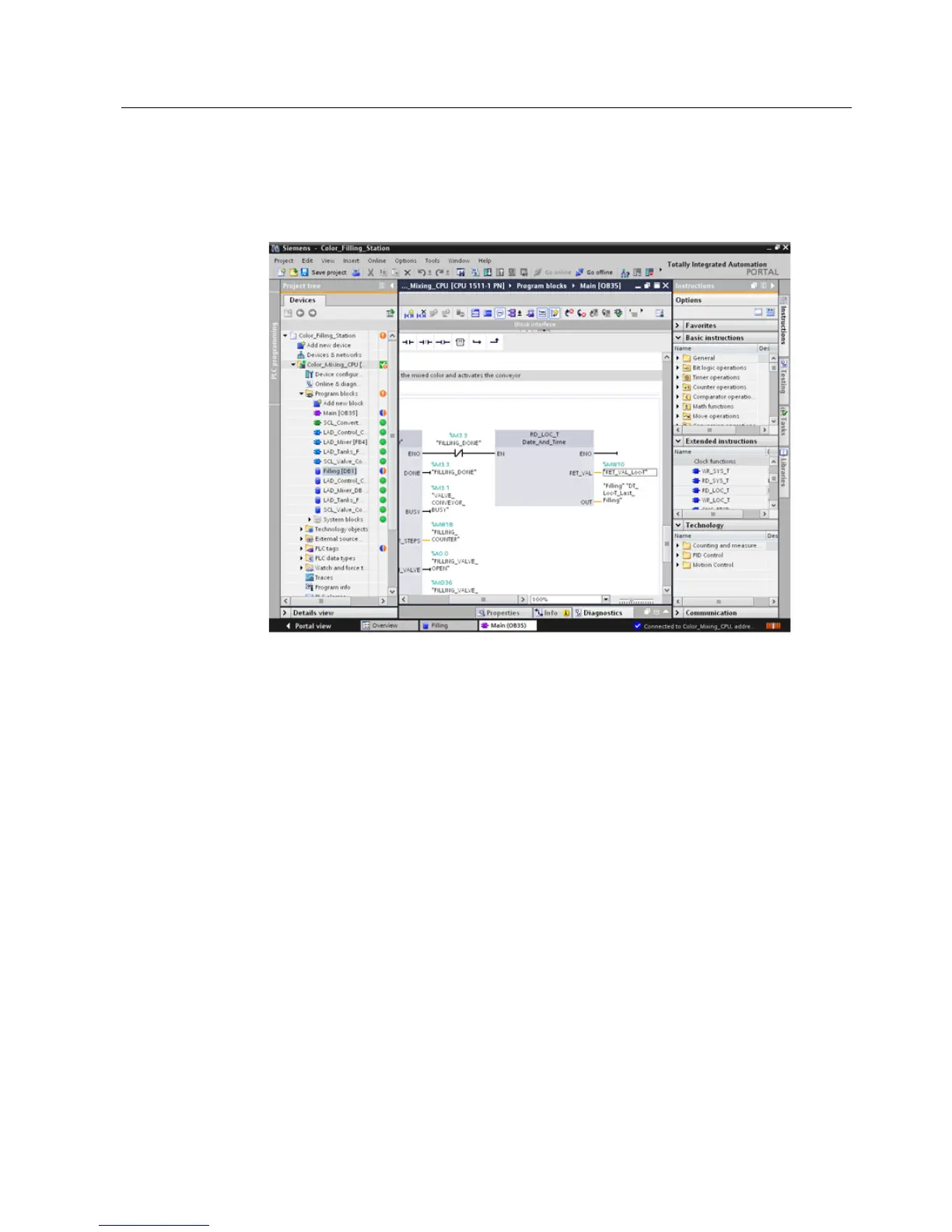

9. Interconnect the "OUT" output with the "DT_Loc-T_Last_Filling" parameter and the
"RED_VAL" output with the newly created "RED_VAL_Loc-T" parameter. Use the
"LAD_Tanks_Filling_Process" data block as the storage location for the "RED_VAL_Loc-
T" parameter.
10.Compile and download the project.
