3.9 FUNCT button
You can use the FUNCT button to select and initiate module functions.
'4
&4%'"#
5-
"
&






① FUNCT button
② 7-segment display

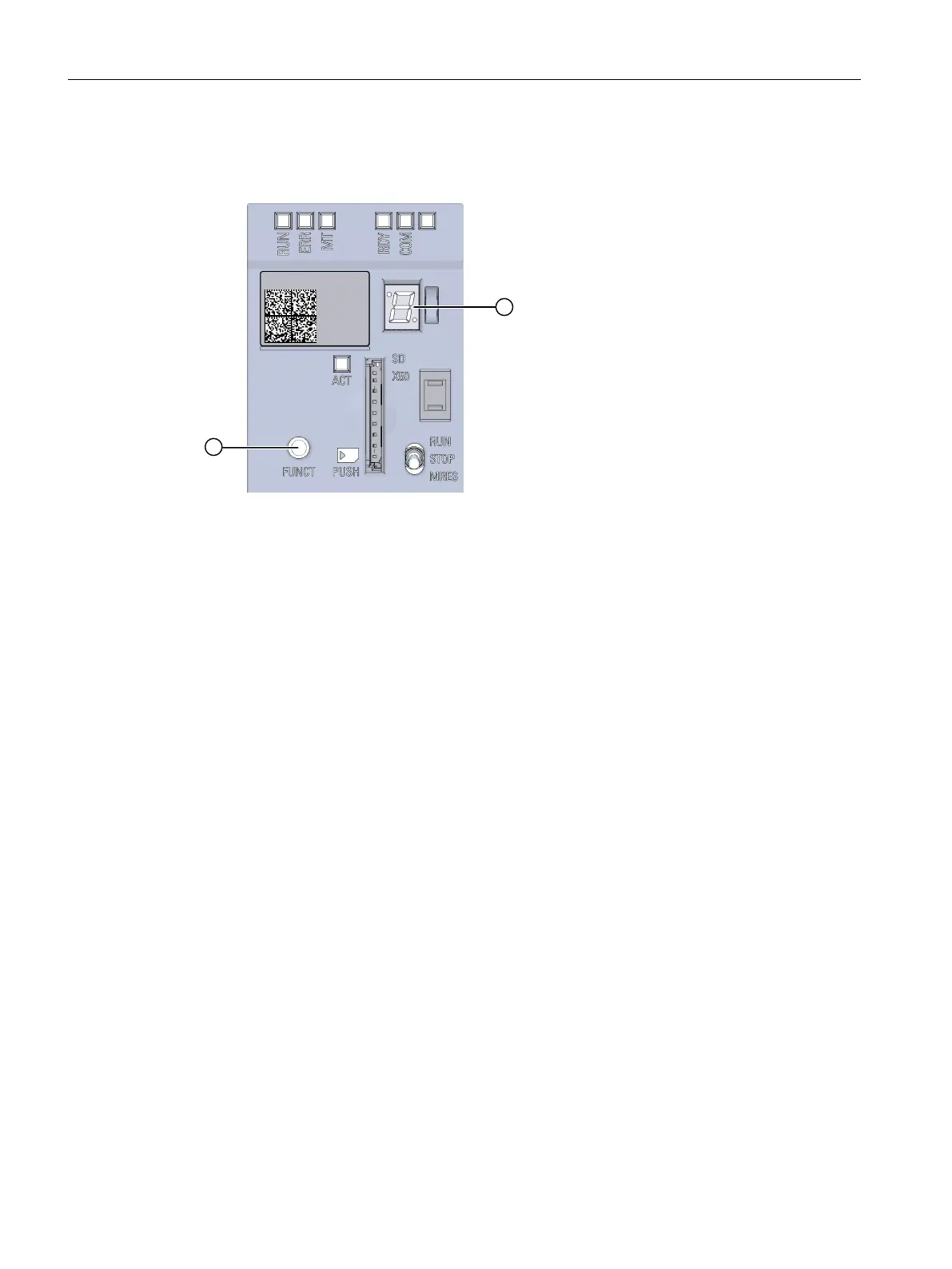

Figure 3-13FUNCT button
The following functions are available via the FUNCT button:
•
Function 1: Save service data on SIMATIC Memory Card
•
Function 2: Switching the SIMATIC Memory Card from program card to firmware update
card and performing a firmware update
•
Function 3: Switching the SIMATIC Memory Card from firmware update card to program
card
Functions 1 to 3 are selected via the FUNCT key. The selection is shown on the 7-segment
display. You can only select functions after the CPU has started up.
Exception: The service data is saved to the SIMATIC Memory Card during startup of the
SIMATIC Drive Controller using the FUNCT button.
