7.3 Electrical configuration
Galvanic isolation
In the redundant System S7-1500R/H, there is electrical isolation between:
•
The communication interfaces (PROFINET) of the R-CPU and all other circuit components
•
The communication interfaces (PROFINET) of the H-CPU and all other circuit components
High-frequency interference currents are conducted and electrostatic charges are avoided
through integrated RC combinations or integrated capacitors.
S7‑1500R/H potentials

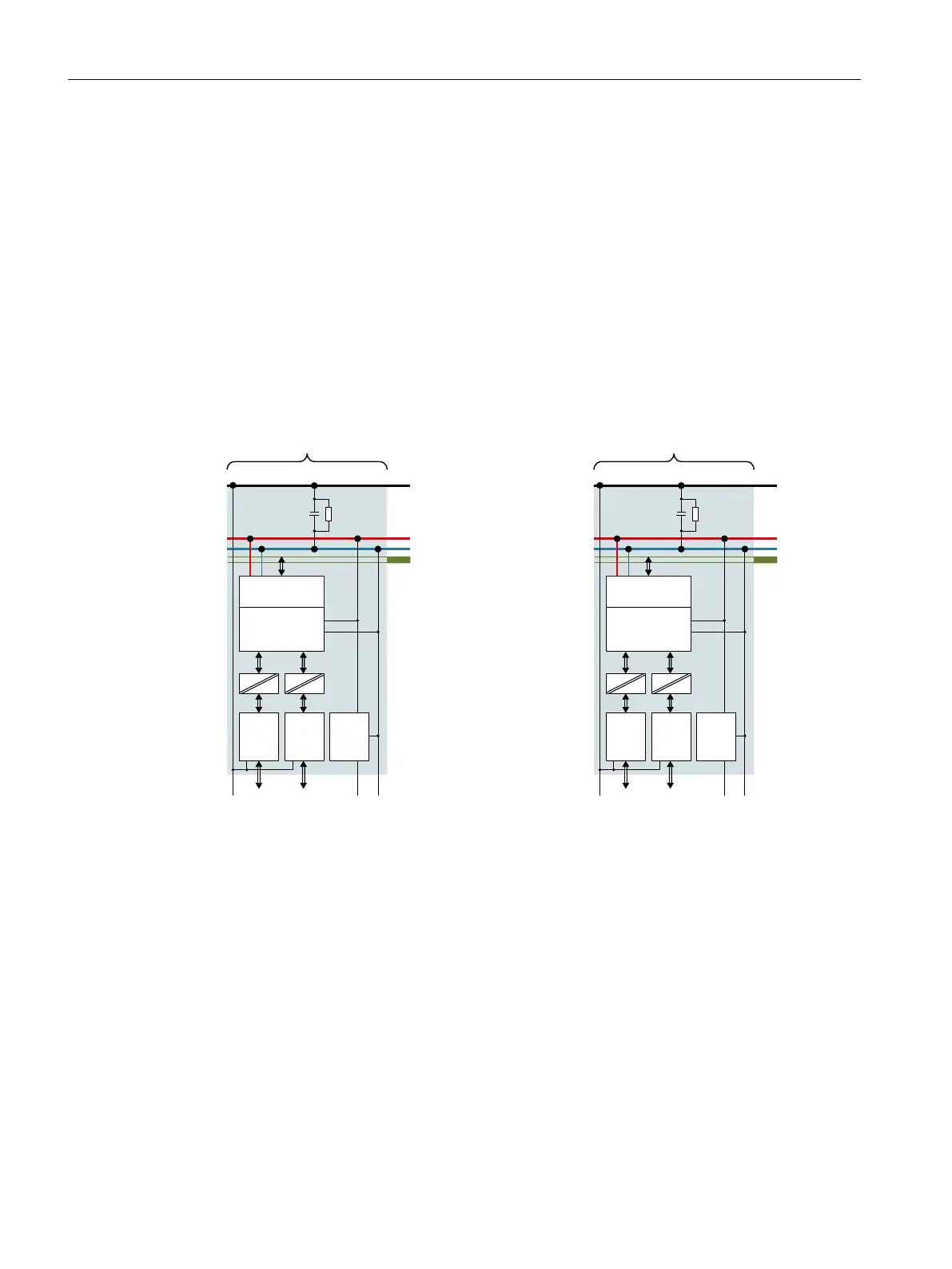

The figure below is a simplified diagram of potentials in the S7-1500R/H redundant system.
'DWD
0RXQ
WLQJ
UDLO
8
,QWHUQDO
0
,QWHUQDO
(OHFWURQLFV
31
LQWHU
IDFH
3RZHU
VXSSO\
31
LQWHU
IDFH
%XV
LQWHUIDFH
6KLHOG
FRQQHFWLRQ
5+&38 5+&38
'DWD
0RXQ
WLQJ
UDLO
8
,QWHUQDO
0
,QWHUQDO
(OHFWURQLFV
31
LQWHU
IDFH
3RZHU
VXSSO\
31
LQWHU
IDFH
%XV
LQWHUIDFH
6KLHOG
FRQQHFWLRQ
/
0
/
0
Figure 7-2Potentials in S7‑1500R/H using the example of CPU1515R‑2PN
7.4 Wiring rules
Introduction
Use suitable cables to connect the S7-1500R/H redundant system. The tables below set out
the wiring rules for the R/H-CPUs and load current supply.
