Control keys
You operate the display using the following keys:
•
Four arrow keys: "up", "down", "left", "right"
If you press and hold an arrow key for 2 seconds, this generates an automatic scroll
function.
•
One ESC key
•
One OK key

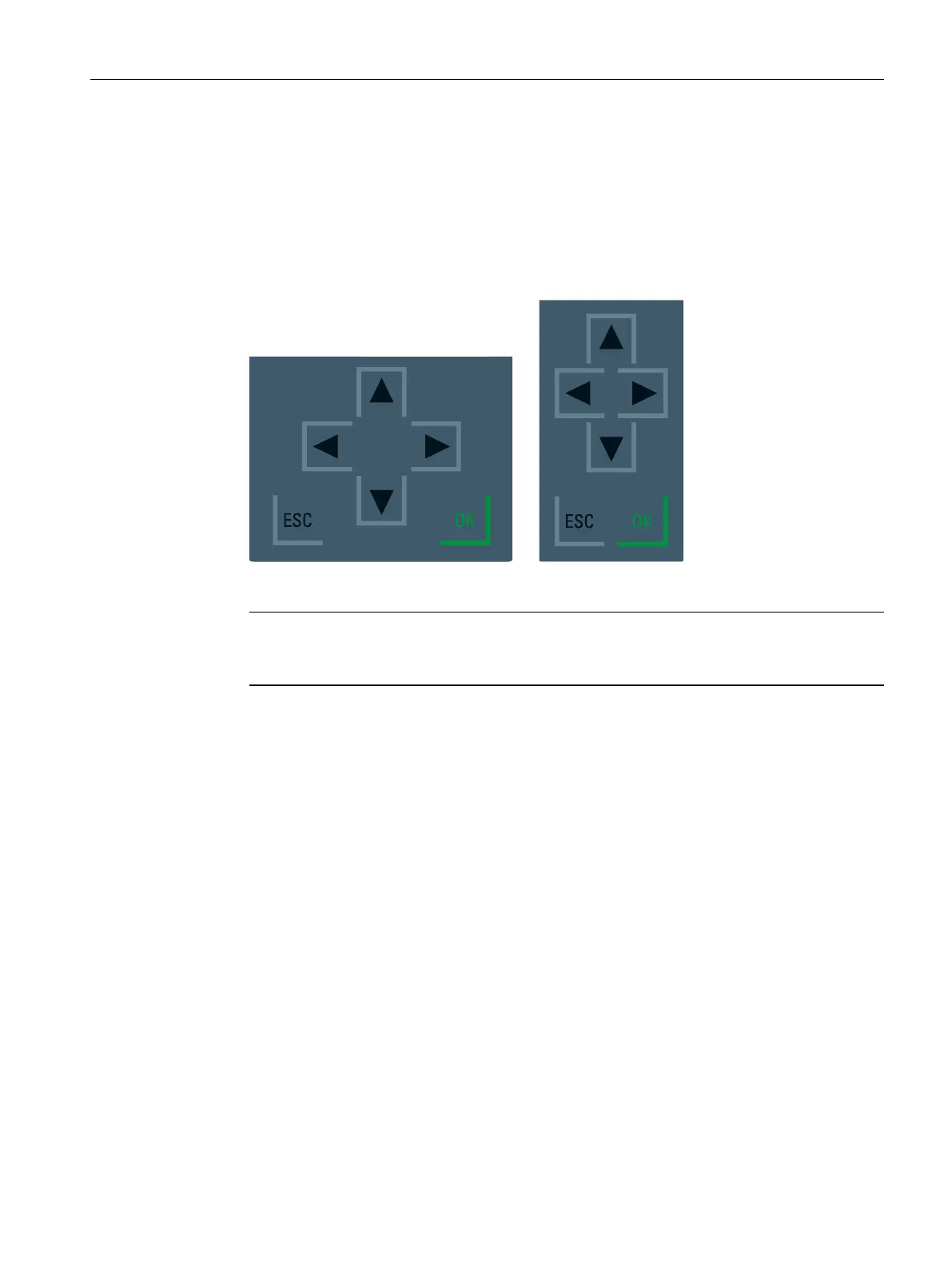

Figure 12-2Control keys
NOTE
If the display is in energy-saving mode or in standby mode, you can exit this mode by
pressing any key.
Functions of the "OK" and "ESC" keys
•
For menu commands in which an entry can be made:
–
OK → valid access to the menu command, confirmation of input, and exit from the edit
mode
–
ESC → restore original content (changes are not saved) and exit edit mode
•
For menu commands in which no entry can be made:
–
OK → to next submenu command
–
ESC → back to previous menu command
Hold ESC for about 3 seconds on any screen of the display. Result: You automatically return to
the home page.
