Primary CPU Backup CPU
Example: Paired
•
In STEP7 in the diagnostic status (Online & diagnostics) of the S7-1500R/H system:
Check the system state in the diagnostic status:
–
Pairing: "Paired" is shown in the "Pairing state" field.
–
No pairing: "No pairing" is displayed in the "Pairing status" field.

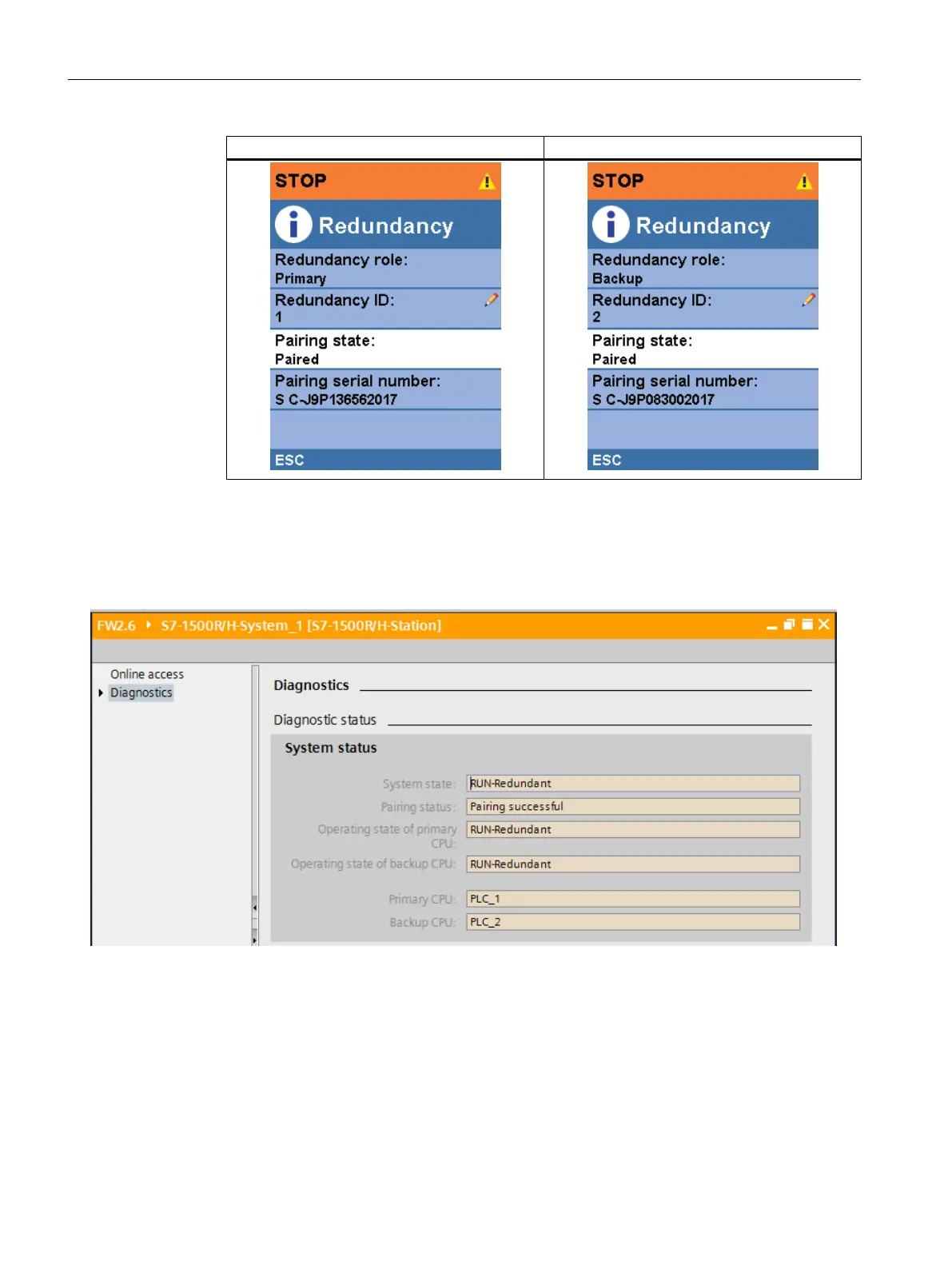

Figure 13-1"Paired" diagnostics state
•
In STEP7 in the diagnostics buffer (Online & diagnostics): Check the entries on pairing.
