The signal table ③ lists the signals of the selected measurement and provides setting options
for specific properties.




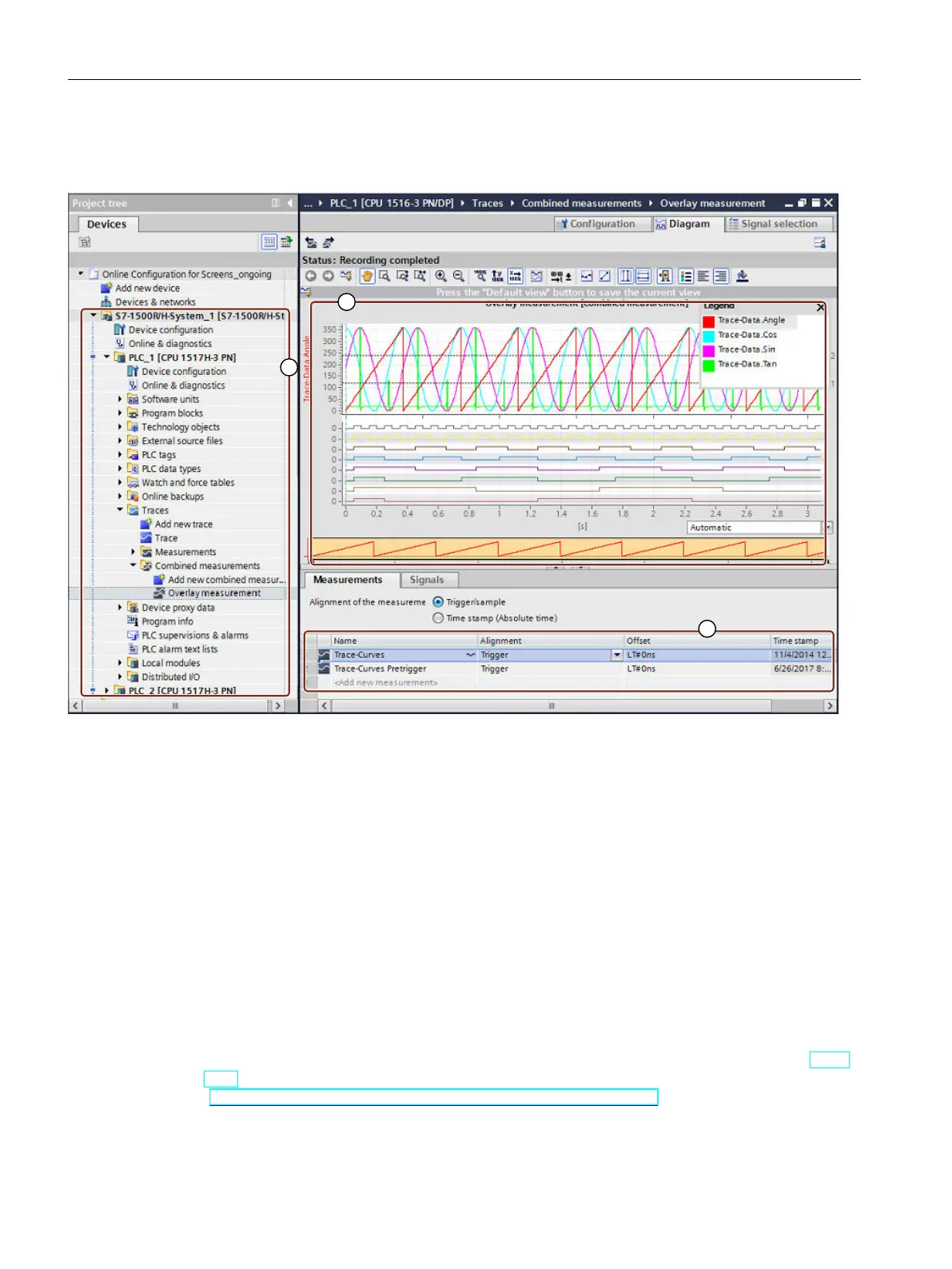

① Trace recordings for S7-1500R/H in the project tree
② Trend diagram
③ Signal table
Figure 4-23Trace measurement for S7-1500R/H
Advantages and customer benefits
The trace function offers the following advantages:
•
Recording of up to 64 different signals and up to four (R-CPUs) or eight (H-CPUs)
independent trace jobs simultaneously
•
A uniform standard for tag analysis that allows even sporadic errors to be located rapidly
Reference
You can find additional information on the trace function in the section Test functions (Page
344) and in the Using the trace and logic analyzer function manual
(http://support.automation.siemens.com/WW/view/en/64897128).
