Siemens SIMATIC S7-1500T User Manual

Parameter data records
B.3 Structure of a data record for output channels of the analog on-board I/O
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
156 Manual, 09/2016, A5E35306440-AB
Data record structure
The figure below shows the structure of data record 64 for channel 0 as an example. The
structure is identical for channel 1. The values in byte 0 and byte 1 are fixed and must not be
changed.
You enable a parameter by setting the corresponding bit to "1".

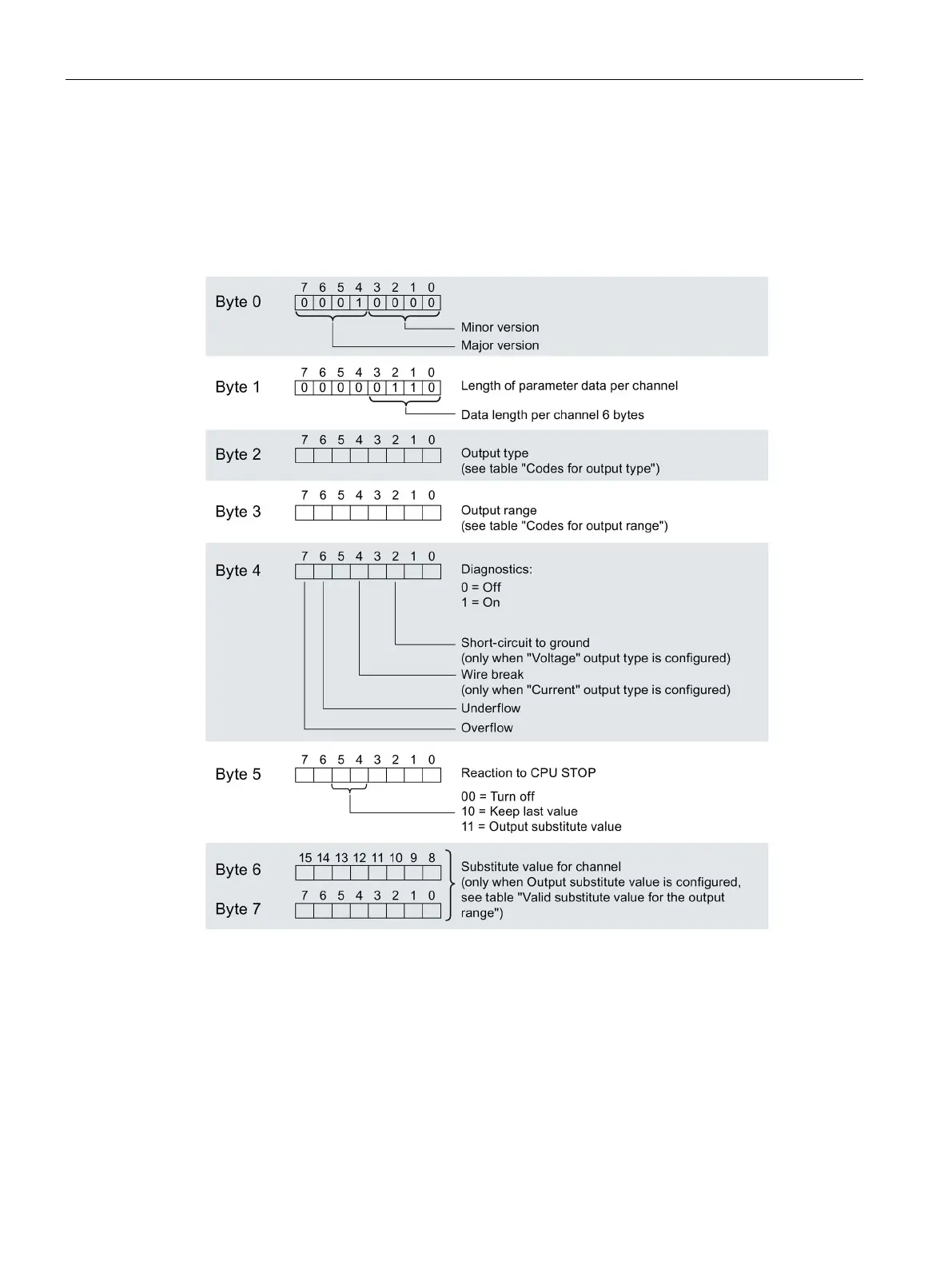

Figure B-3 Structure of data record 64: Bytes 0 to 7
