Siemens SIMATIC S7-1500T User Manual

Wiring
4.3 Terminal and block diagrams
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
80 Manual, 09/2016, A5E35306440-AB
Wiring: Current output

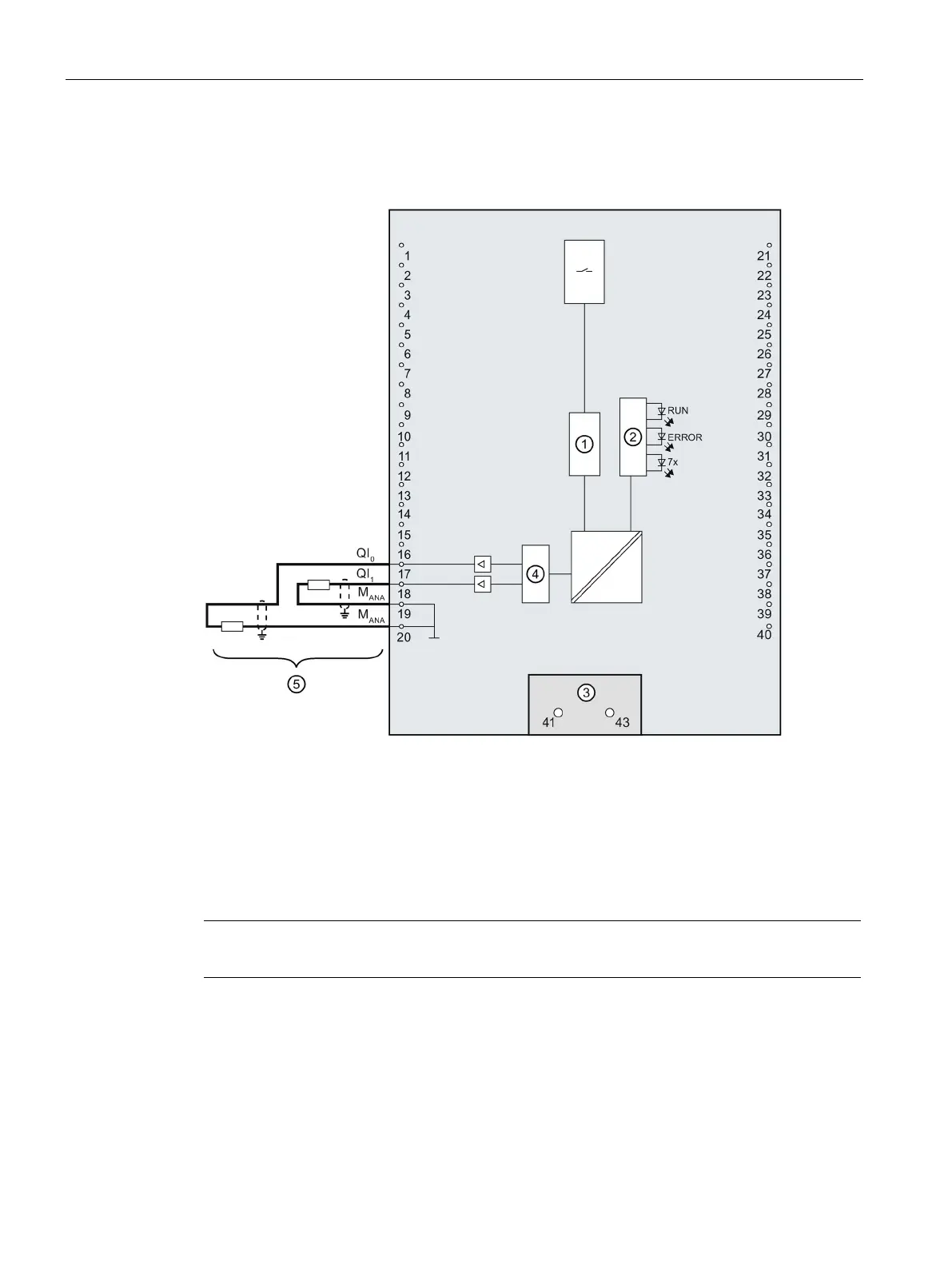

The following figure shows an example of the terminal assignment for wiring current outputs.
①
Analog-to-digital converter (ADC)
②
LED interface
③
Infeed element (for shielding only)
④
Digital-to-analog converter (DAC)
⑤
Current output CH0 and CH1
Figure 4-10 Block diagram and terminal assignment for current output
Note
M
ANA
on terminals 19 and 20 is equivalent.
