Cycle and reaction times
5.3 Response time
CPU 31xC and CPU 31x, Technical Data
Manual, 01/2006 Edition, A5E00105475-06
5-15
5.3.2 Shortest response time
Conditions for the shortest response time

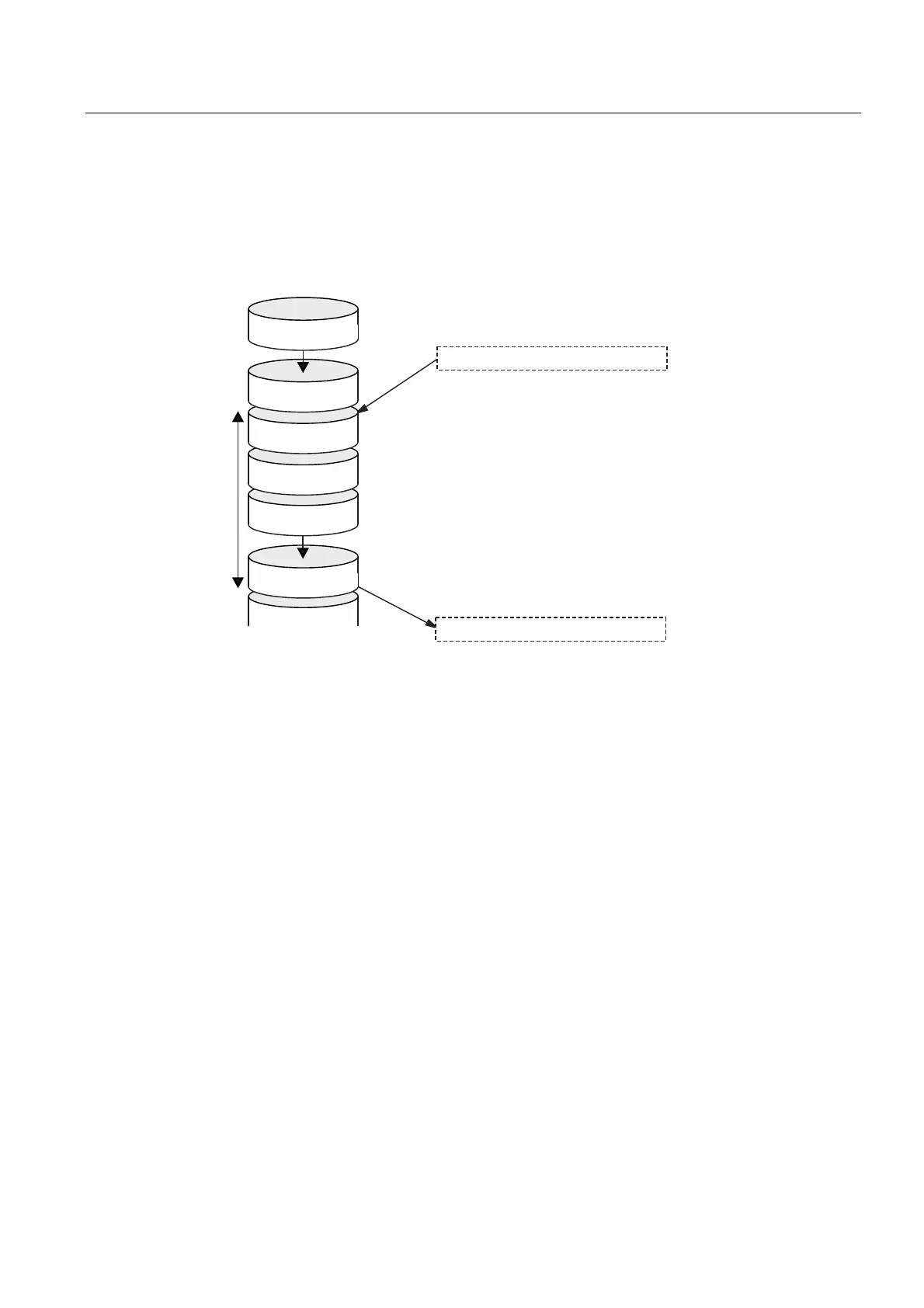

The figure below shows the conditions under which the shortest response time is reached.
'HOD\RILQSXWV
,PPHGLDWHO\EHIRUHUHDGLQJLQWKH3,,WKHVWDWXVRI
WKHPRQLWRUHGLQSXWFKDQJHV7KLVFKDQJHRIWKHLQSXW
VLJQDOLVVWLOOLQFOXGHGLQWKH3,,
7KHFKDQJHRIWKHLQSXWVLJQDOLVSURFHVVHGE\
WKHDSSOLFDWLRQSURJUDP
7KHUHVSRQVHRIWKHXVHUSURJUDPWRWKHFKDQJH
RIWKHLQSXWVLJQDOLVLVVXHGWRWKHRXWSXWV
'HOD\RIRXWSXWV
5HVSRQVHWLPH
&&326
3,2
3,,
8VHUSURJUDP
&&326
3,2
Calculation
The (shortest) response time is the sum of:
Table 5-10 Formula: Shortest response time
1 x process image transfer time for the inputs
+ 1 x process image transfer time for the outputs
+ 1 x program processing time
+ 1 × operating system processing time at the SCC
+ I/O delay
= Shortest response time
The result is equivalent to the sum of the cycle time plus the I/O delay times.
See also
Overview (Page 5-13)

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
