Siemens SIMATIC S7-300 Module data Technical Data Manual

Communication
3.2 Communication services
CPU 31xC and CPU 31x, Technical Data
Manual, 01/2006 Edition, A5E00105475-06
3-11
3.2.7 Routing
Properties
STEP 7 V5.1 + SP4 or higher allows you to access your S7 stations on all subnets with your
PG/PC, for example, to
• download user programs
• download a hardware configuration, or
• perform debugging and diagnostic functions.
Note
If you use your CPU as I-slave, the routing function is only possible when the
DP interface is switched to active IN STEP 7, set the Test, Commission Routing check
box on the properties dialog of the DP interface. For detailed information, refer to the
Programming with STEP 7 manual, or directly to the STEP 7 Online Help
Routing network nodes: MPI - DP

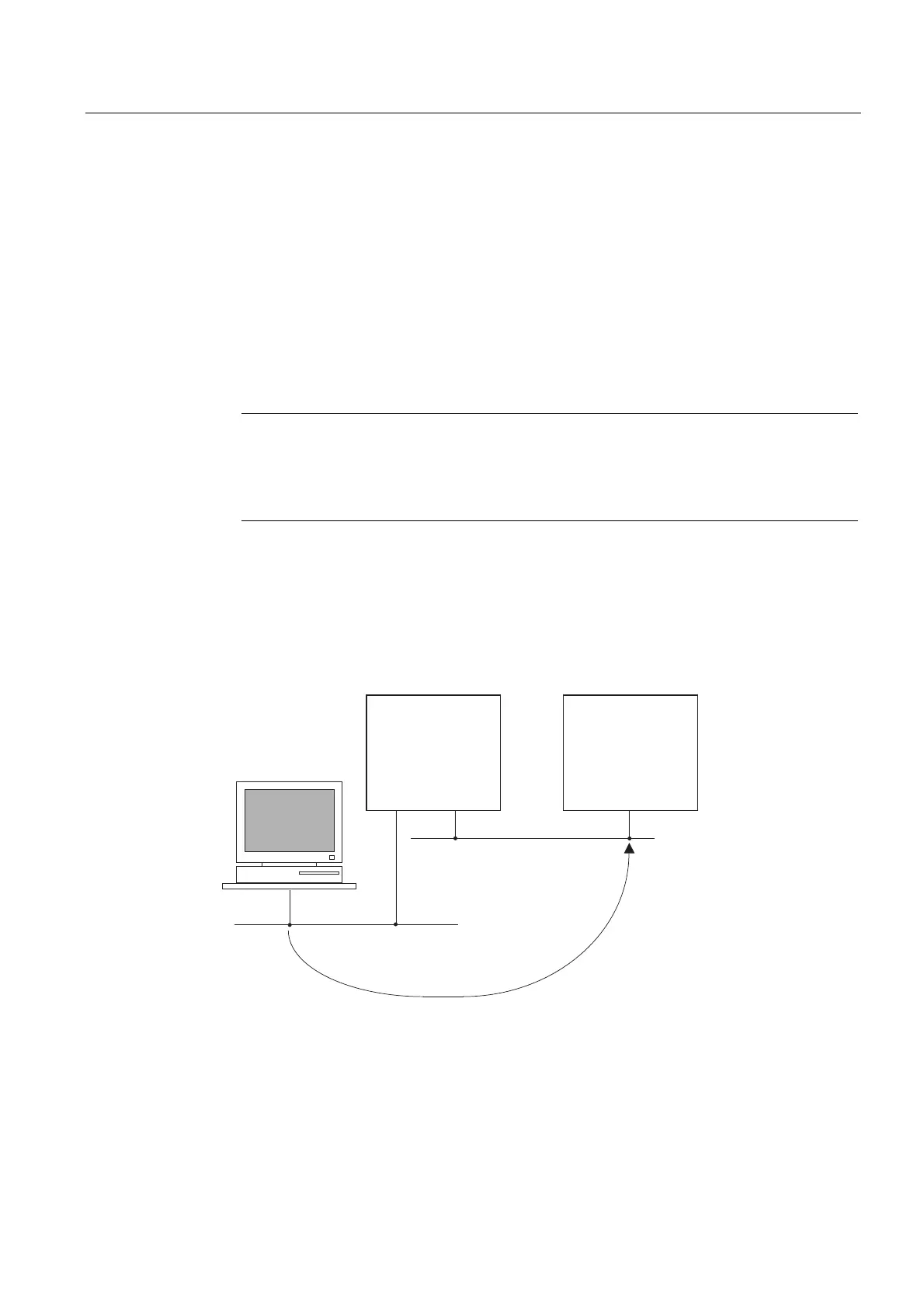

Gateways between subnets are routed in a SIMATIC station that is equipped with interfaces
to the respective subnets. The figure below shows CPU 1 (DP master) acting as router for
subnets 1 and 2.
3*
6 6
6XEQHWHJ352),%86'3
6XEQHWHJ03,
&38'3PDVWHU &38'3VODYH

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
