Cycle and reaction times
5.2 Cycle time
CPU 31xC and CPU 31x, Technical Data
Manual, 01/2006 Edition, A5E00105475-06
5-11
Extending the OB1 cycle time
The OB1 cycle is extended by
• Increasing the number of PROFINET interconnections,
• Increasing the number of remote partners,
• Increasing the data volume and
• Incrasing the transfer frequency
Note
The use of CBA with cyclical PROFINET interconnections requires the use of switches to
maintain the performance data. 100-Mbit full-duplex operation is mandatory with cyclical
PROFINET interconnections.

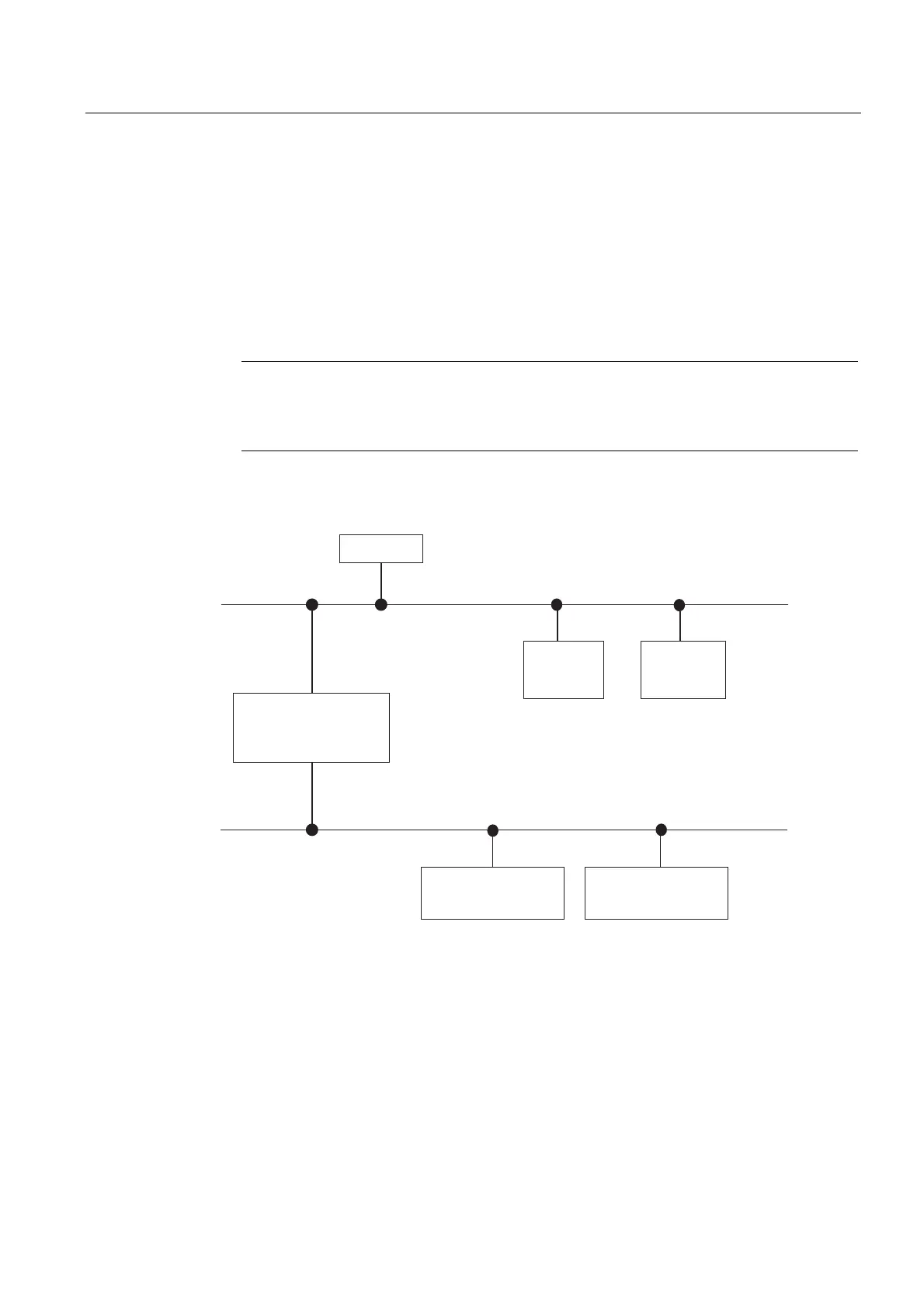

The following graphic shows the configuration that was used for the measurements.
,QGXVWULDO(WKHUQHW
352),%86
+0,23&


352),%86GHYLFH
DV'3VODYH
352),1(7
UHPRWH
QRGH
352),%86GHYLFH
DV'3VODYH
352),1(7
UHPRWH
QRGH
1XPEHURIREVHUYHG
LQWHUFRQQHFWLRQV
LQ6,0$7,&L0$3
RU23&
352),1(7GHYLFHZLWK
SUR[\IXQFWLRQDOLW\
&38[31'3
4XDQWLW\
4XDQWLW\

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
