Siemens SIMATIC S7-400H - SM 331; AI 8 X 16 Bit; 6 ES7 331-7 NF00-0 AB0

Connection examples for redundant I/Os
E.27 SM 331; AI 8 x 16 Bit; 6ES7 331–7NF00–0AB0
S7-400H
System Manual, 03/2012, A5E00267695-11
487
E.27 SM 331; AI 8 x 16 Bit; 6ES7 331–7NF00–0AB0

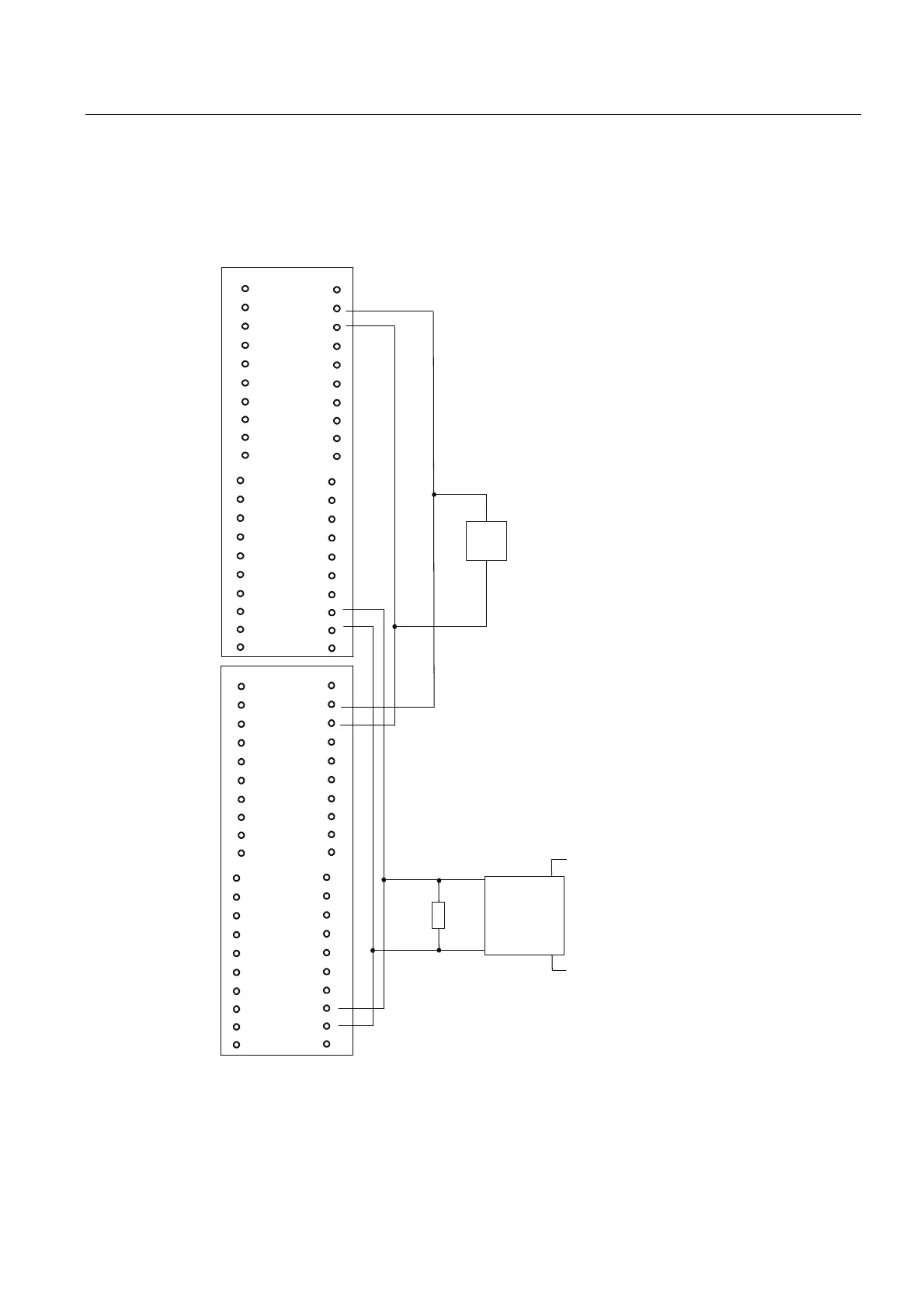

The figure below shows the connection of a transmitter to two redundant SM 331; AI 8 x 16
Bit. The transmitter is connected to channel 0 and 7 respectively.


















 



















 









































8
9
9
9
+
8
+
˖
7UDQVGXF HU
ZLUHWUDQVGXFHU
Figure E-27 Example of an interconnection with SM 331; AI 8 x 16 Bit
