02.05 3 FM-STEPDRIVE specifications
© Siemens AG 1998 All Rights Reserved
FM-STEPDRIVE/SIMOSTEP (FB)
3-5
3.2 Mechanical data
Dimensions (H x W x D) 125 x 80 x 117 mm
Weight 890 g
3.3 Ambient conditions

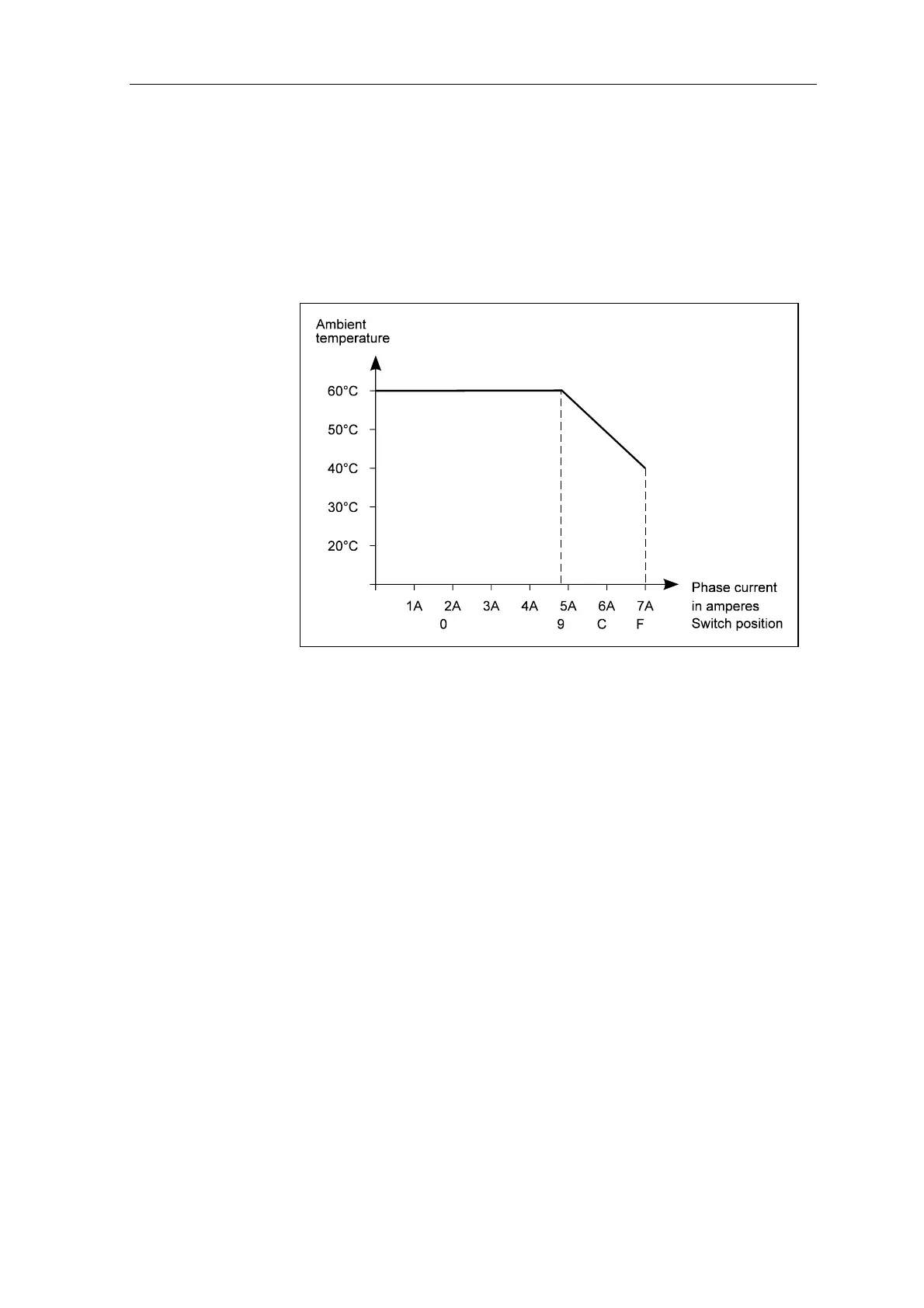

Figure 3-1 Interrelation between phase current and ambient temperature
Non-condensing
Transport and storage temperature -40°C to +70 °C
Vibration strain during operation
10 Hz to 58 Hz 0.075 mm deflection
over 58 Hz to 500 Hz 8.9 m/s
2
Vibration strain during transport (packaged)
5 Hz to 9 Hz 3.5 mm deflection
over 9 Hz to 500 Hz 10 m/ s
2
Shock 15 g 11 ms
Free fall non-packaged 100 mm
packaged 500 mm
Drop and topple admissible
Continuous sound pressure level <50 dB(A)
