6 Wiring 02.05
© Siemens AG 1998 All Rights Reserved
6-10 FM-STEPDRIVE/SIMOSTEP (FB)
6.5 Operating an axis in a safe working area

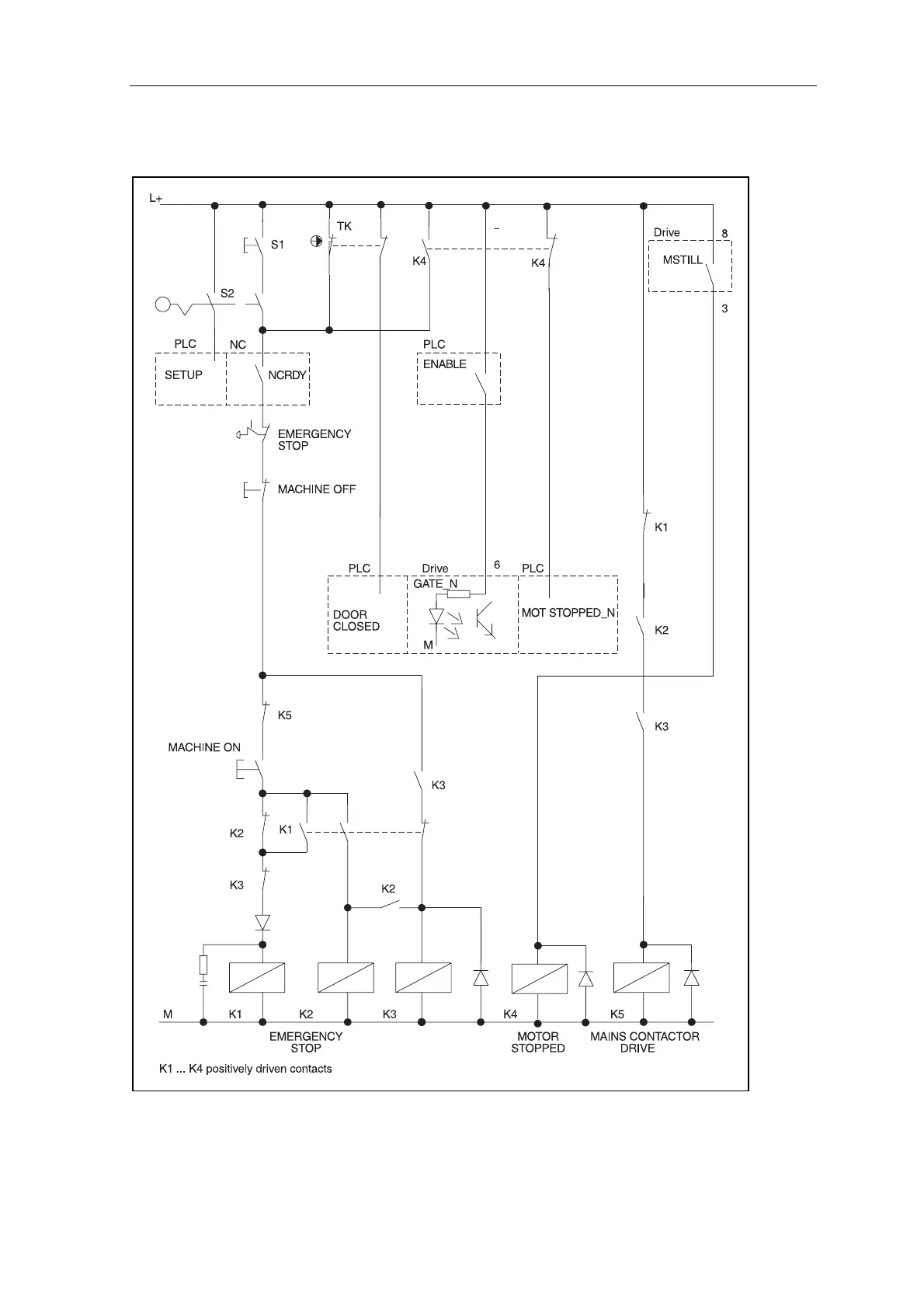

Figure 6-9 Wiring example for an NC axis with stepping motor drive in a safe working area
