6 Wiring 02.05
© Siemens AG 1998 All Rights Reserved
6-6 FM-STEPDRIVE/SIMOSTEP (FB)
6.3 Wiring layout for control cabinet

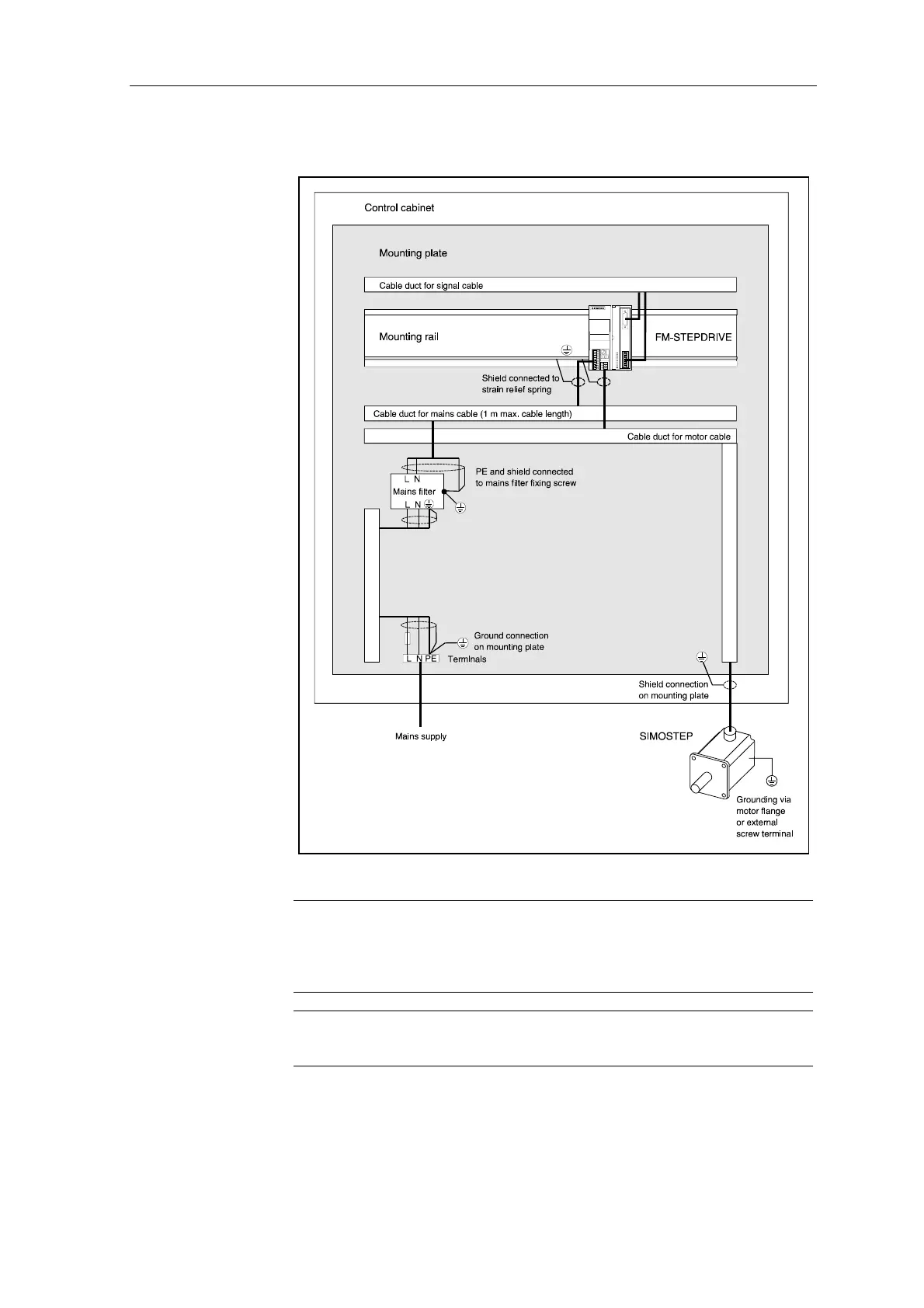

Figure 6-5 Wiring layout for control cabinet
Note
For reasons of noise immunity, the mains, motor and signal cables must
be run separately and shielded on both ends. The mounting rail and the
mains filter must be mounted surface to surface with the mounting plate.
Note
For FM-STEPDRIVE and SIMOSTEP wiring, see figure 6-1.
