6 Wiring 02.05
© Siemens AG 1998 All Rights Reserved
6-8 FM-STEPDRIVE/SIMOSTEP (FB)
DC
+
DC
-
115
230
N
PE
MS
DC
+
DC
-
115
230
N
PE
MS
DC
+
DC
-
115
230
N
PE
MS
L1
L2
L3
N
PE
Mains filter types:
Mains
filter
FM-STEPDRIVES
for 115 V=B84299-K55
for 230 V=B84299-K53

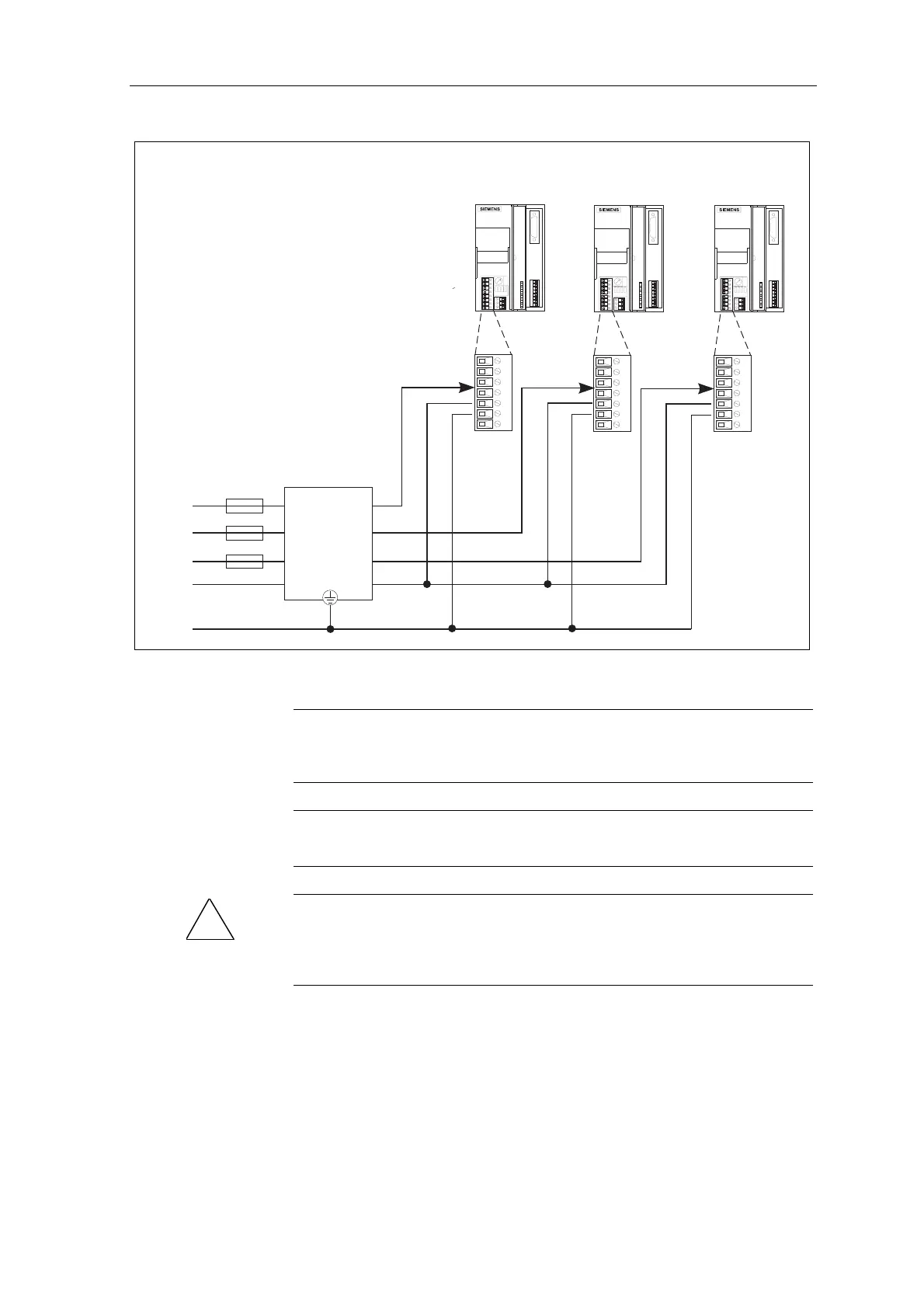

Figure 6-7 Multi-axis wiring with a three-phase mains connection (115 V or 230 V between phase and neutral)
Note
The intermediate circuit connections (DC+ and DC-) of the power
controllers must not be interconnected!
Note
The mains connection cables must be shielded on both ends.
!
Danger
In order to avoid overvoltage, the three-phase power supply requires that
the individual phases and neutral be connected / disconnected
simultaneously.
