Electrical connection
8.3 System integration
1FT2 synchronous motors for SINAMICS S120
126 Configuration Manual, 03/2021, A5E50645584B AA

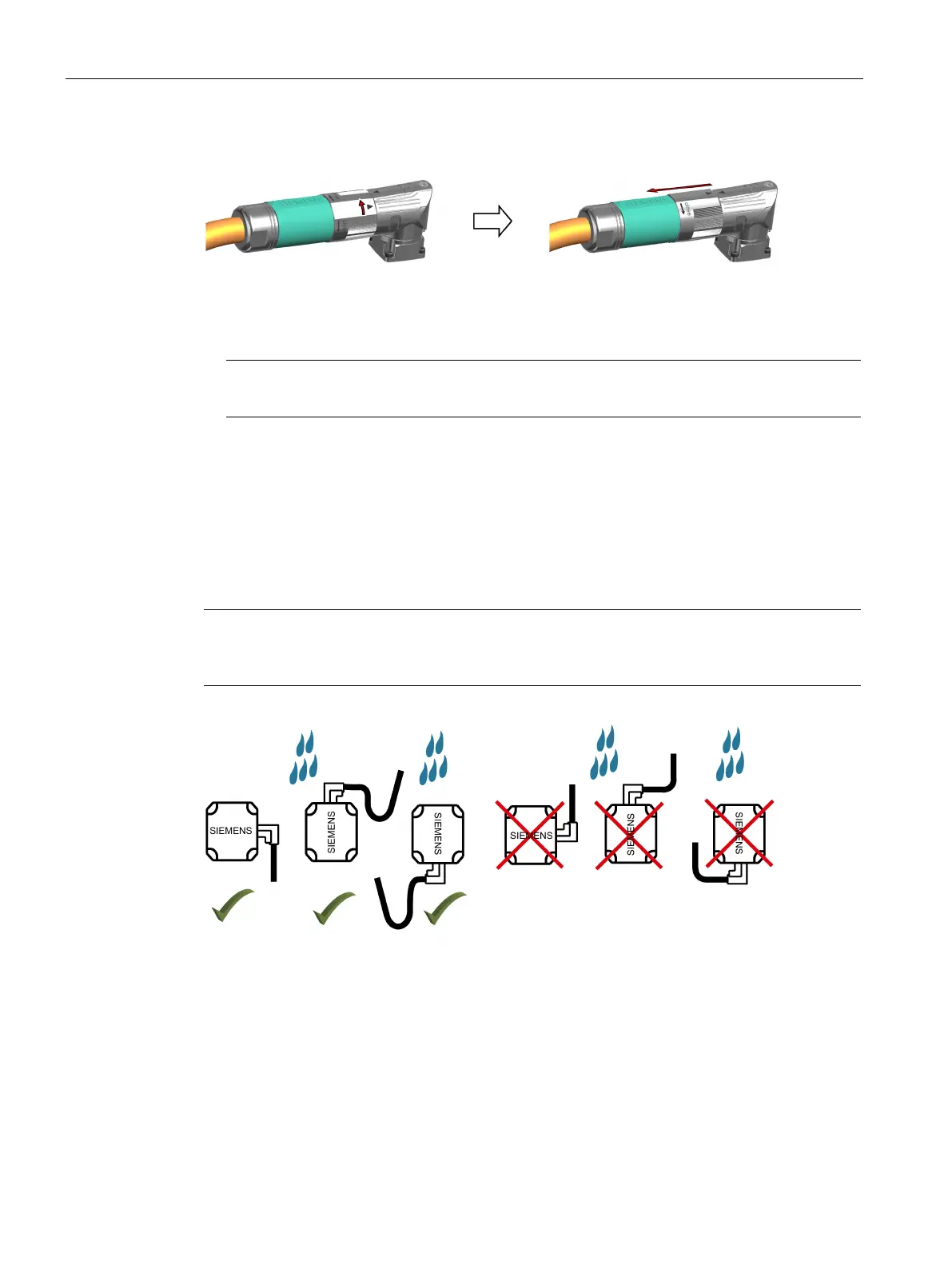

Releasing a SPEED-CONNECT connection
1. Turn the union nut of the SPEED-CONNECT connector in the direction of "open" to the end
stop. The triangles on the top of the connectors must be opposite one another.
2. Withdraw the connector.
Note
Pull out the connector at the connector itself, and do not pull on the cable.
You have disconnected the SPEED-CONNECT connection.
❒
8.3.4.3 Routing cables in a damp environment
Cable routing
Note
If the motor is mounted in a humid environment, the power and signal cables must be routed
as shown in the following figure.
Figure 8-2 Routing cables in a damp environment
