Assembly drawings/dimension sheets

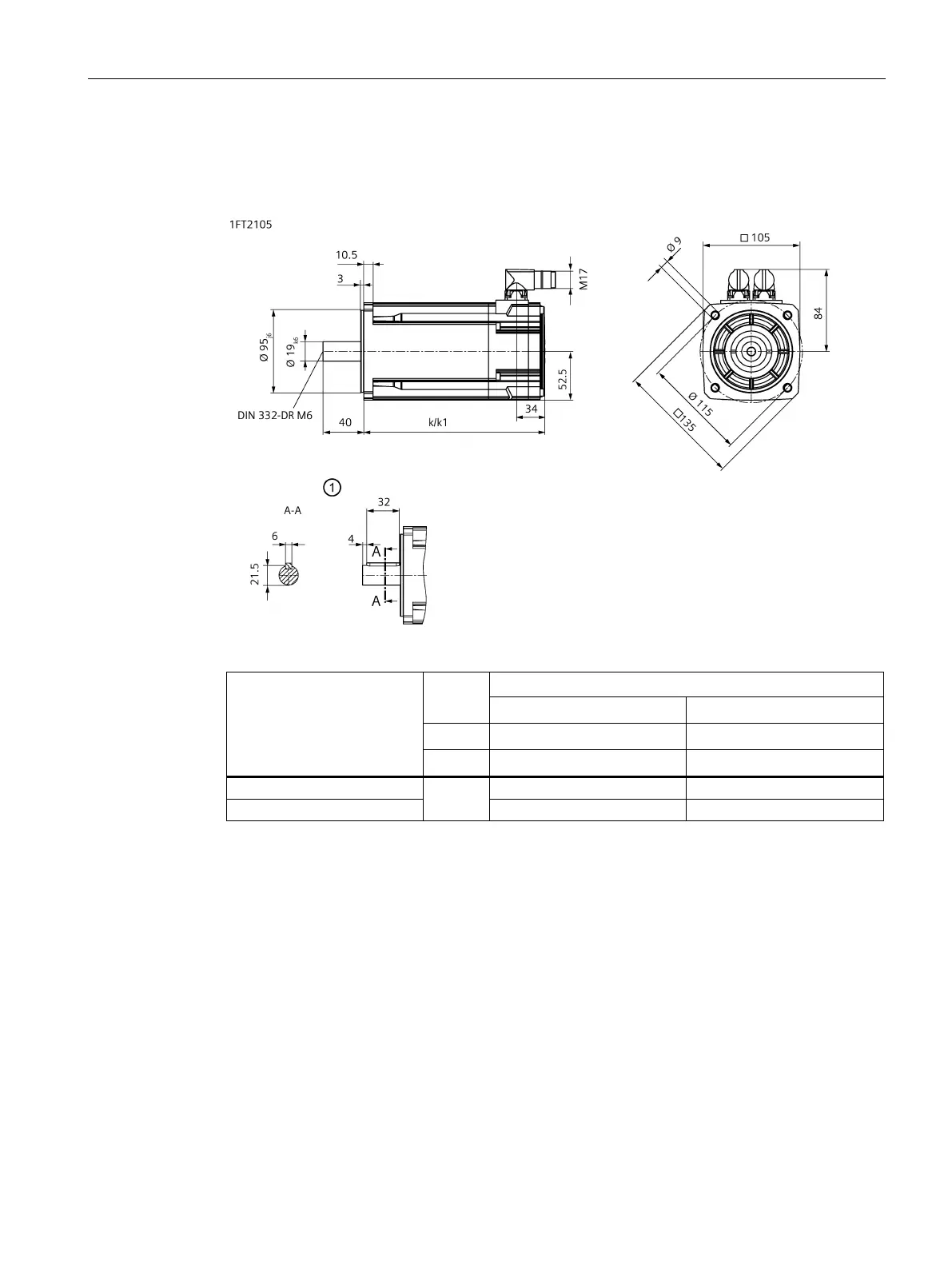

9.3 Dimension drawing 1FT2, shaft height 52
1FT2 synchronous motors for SINAMICS S120
Configuration Manual, 03/2021, A5E50645584B AA
129
9.3 Dimension drawing 1FT2, shaft height 52
All dimensions are in mm.
①
Option shaft with feather key
SIMOTICS S-1FT2
Shaft height 52
Motor length
Without brake
With brake
DIN
k
k1
IEC
LB
LB1
1FT2105-4
173
200
1FT2105-6
215
242
