Description of the motors
2.5 Rating plate data
1FT2 synchronous motors for SINAMICS S120
Configuration Manual, 03/2021, A5E50645584B AA
29
2.5 Rating plate data
The rating plate contains the article number and the technical data of the motor.

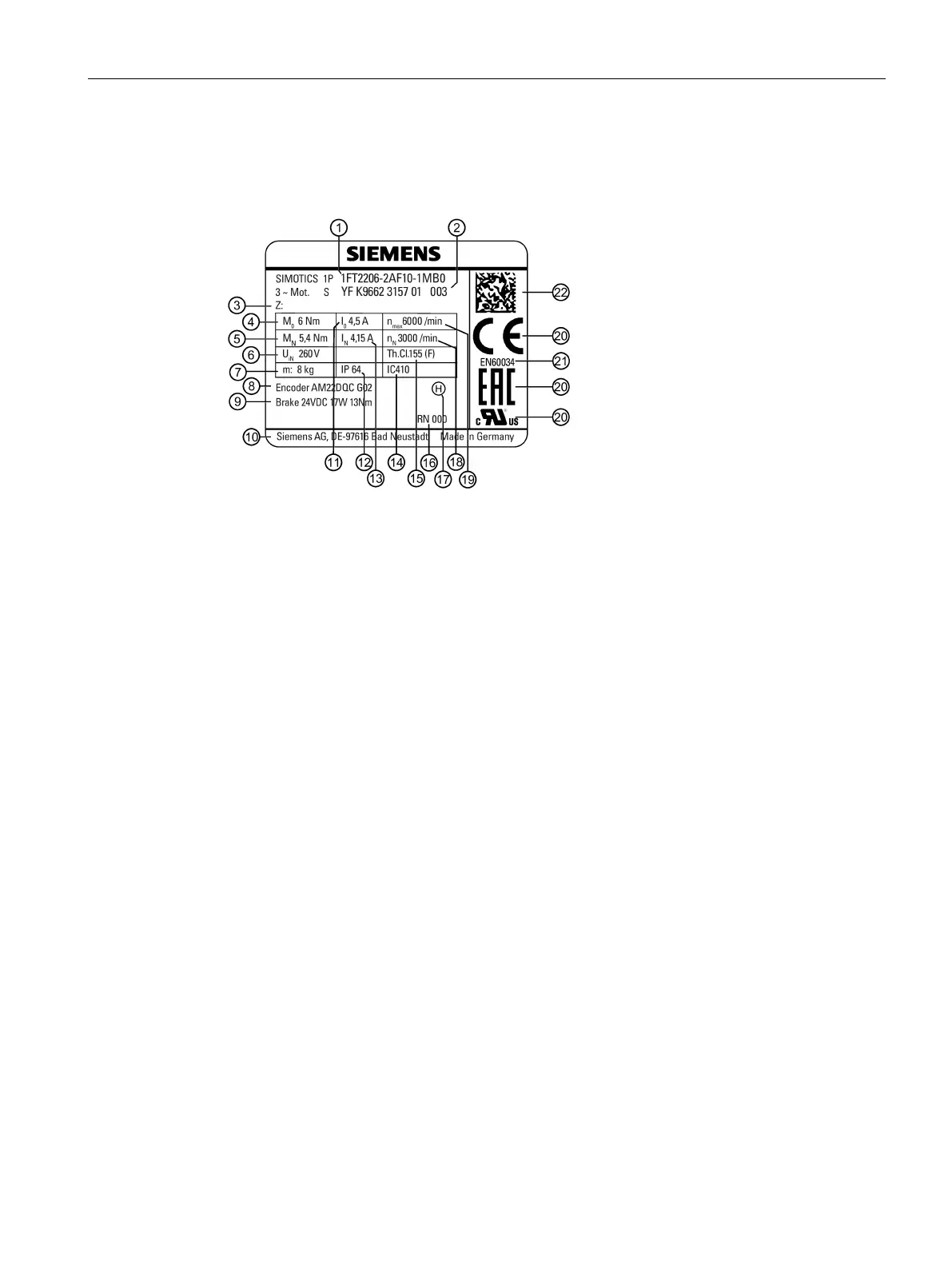

Figure 2-7 1FT2 rating plate
1
Article number
12
Degree of protection
2
ID No., serial number
13
Rated current IN / A
3
Additional options specified as a supple-
ment to the article number
14
Cooling mode according to EN 60034-6
4
Static torque M0 / Nm
15
Thermal class of the insulation system
5
Rated torque MN / Nm
16
Revision
6
Induced voltage at rated speed U
IN
/ V
17
Type of balancing (only for motors with
feather key)
7
Motor weight m / kg
18
Rated speed nN / r/min
8
Marking of encoder type
19
Maximum speed nmax / r/min
9
Data of the holding brake
20
Certifications
10
Manufacturer's address
21
Standard for all rotating electrical ma-
chines
11
Stall current I0 / A
22
Data matrix code
