Siemens SIMOTICS 1FT2104-4AF - Dimension Drawing 1 FT2, Shaft Height 63

Assembly drawings/dimension sheets

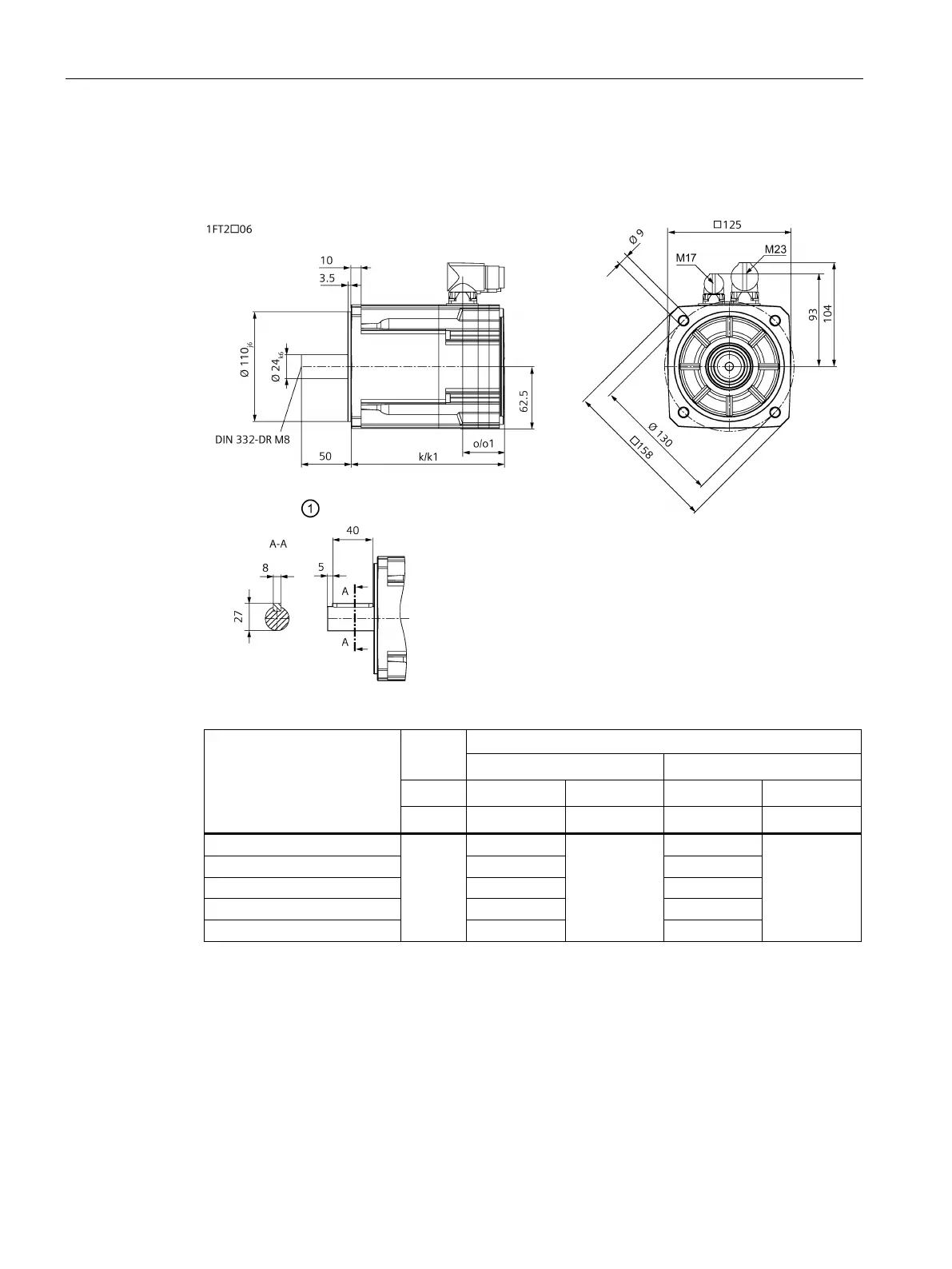

9.4 Dimension drawing 1FT2, shaft height 63
1FT2 synchronous motors for SINAMICS S120
130 Configuration Manual, 03/2021, A5E50645584B AA
9.4 Dimension drawing 1FT2, shaft height 63
All dimensions are in mm.
①
Option shaft with feather key
SIMOTICS S-1FT2
Shaft height 63
Motor length
Without brake
With brake
DIN
k
o
k1
o1
IEC
LB
-
LB1
-
1FT2106-3
174
41
225
53
1FT2106-4
193
244
1FT2106-6
232
283
1FT2206-2
154
205
1FT2206-4
193
244
