Siemens SIMOTICS 1FT2104-4AF - 1 Ft2204-6 Af

Technical data and characteristics
6.3 Data sheets and characteristics
1FT2 synchronous motors for SINAMICS S120
Configuration Manual, 03/2021, A5E50645584B AA
89
6.3.2.3 1FT2204-6AF

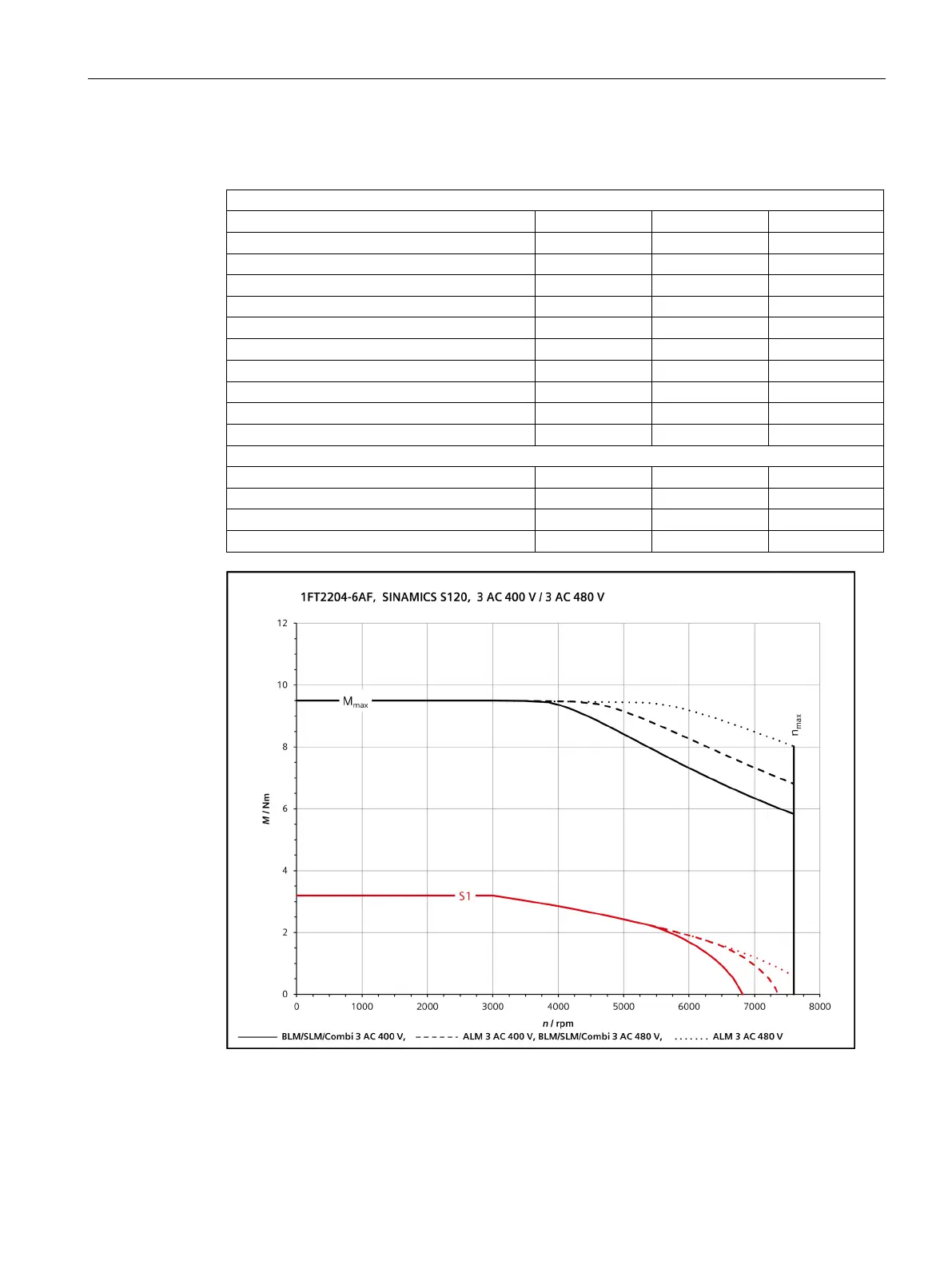

Three-phase servo motor 1FT2204-6AF
Technical specifications in S120 system
Symbol
Unit
Value
Static torque
M0
Nm
3.2
Stall current
I0
A
3
Maximum permissible speed (at converter)
nmax Inv
rpm
7600
Maximum torque
Mmax
Nm
9.5
Maximum current
Imax
A
9.9
Thermal time constant
Tth
min
35
Moment of inertia
JMot
kg cm
2
1.61
Moment of inertia (with brake)
JMot Br
kg cm
2
1.69
Weight
mMot
kg
3.5
Weight (with brake)
mMot Br
kg
4.35
Rated data with S120, 3 AC 400 V / 3 AC 480 V
Rated speed
nN
rpm
3000
Rated torque
MN
Nm
3.2
Rated current
IN
A
3
Rated power
PN
kW
1
