Data on the rating plate
Note
The data on the rating plate only applies in conjunction with the corresponding rotor.

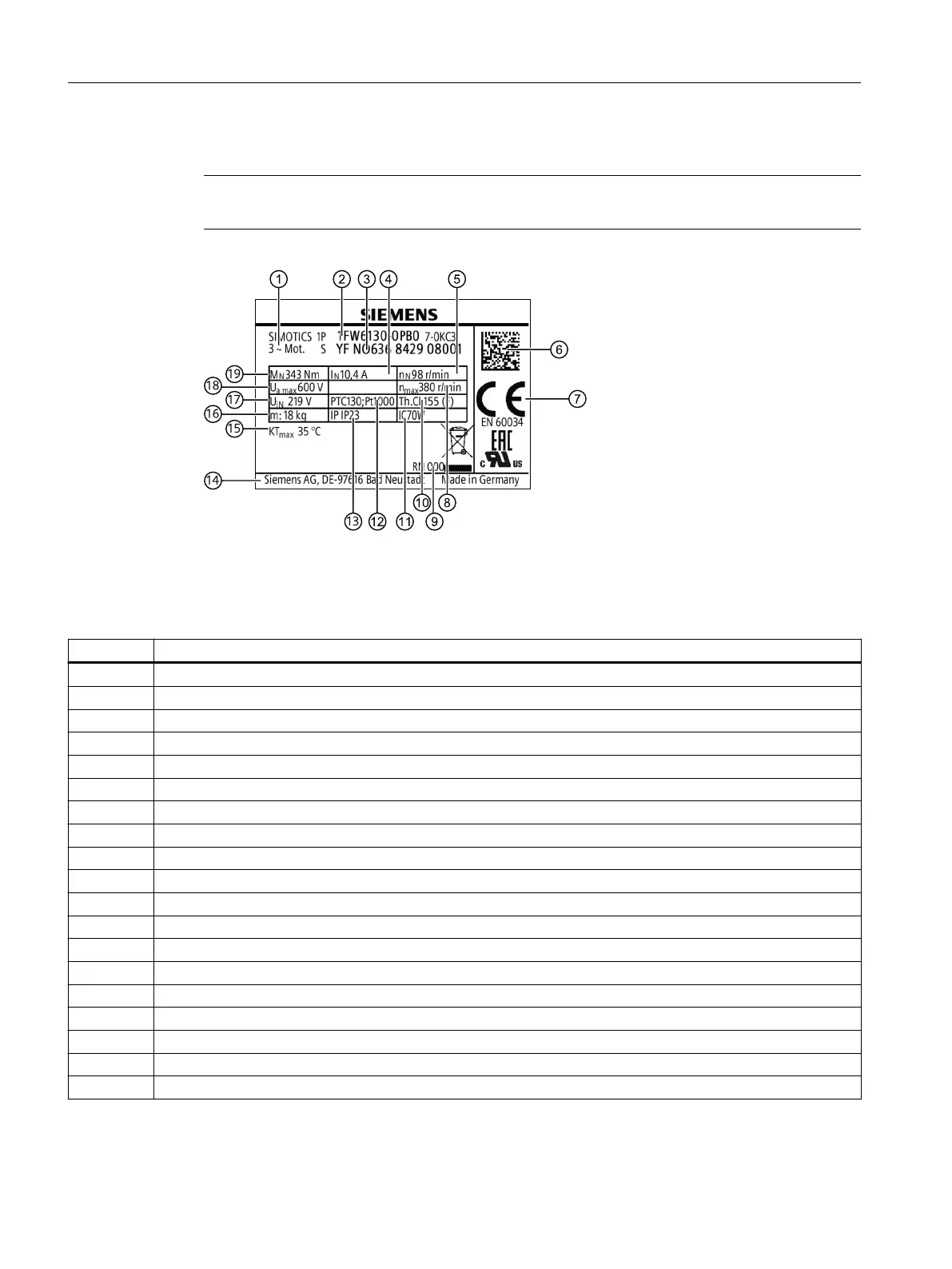

Figure3-4 Example of a rating plate for 1FW6 built-in torque motors
Table 3-4 Data on the rating plate for 1FW6 built-in torque motors
Position Description
1 Type of motor
2 Article No.
3 Serial number
4 Rated current I
N
5 Rated speed n
N
6 2D code, contains the motor data
7 Approvals/conformities
8 Maximum speed n
max
9 Motor version
10 Temperature class
11 Cooling method
12 Temperature sensors
13 Degree of protection
14 Manufacturer
15 Max. coolant temperature at which the ratings are reached
16 Weight
17 Induced voltage U
iN
at rated speed n
N
18 Maximum permissible rms value of the motor terminal voltage U
a max
19 Rated torque M
N
Description
3.3Rating plate data
1FW6 built-in torque motors
38 Operating Instructions, 09/2022, A5E52220812B AA
