&XVWRPHUHQFORVXUH

&DEOHRXWOHWSRVLWLRQ

2ULQJV

5RWRU

6WDWRU

$OOGLPHQVLRQVLQPP

:DWHUFRROLQJ

,QOHWRUUHWXUQ

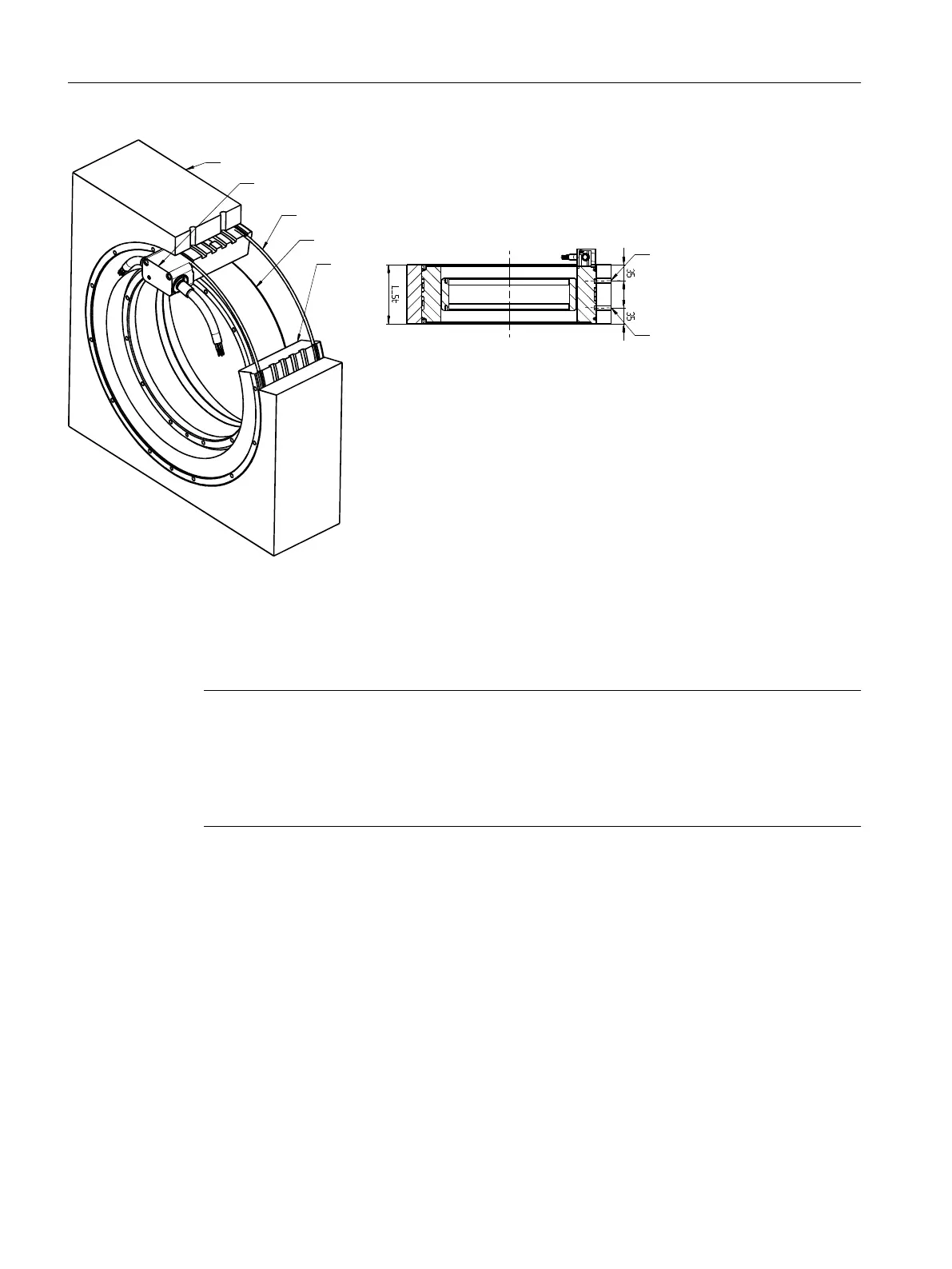

Figure6-2 Cooler connection for 1FW6150 (example)

6.1.2 Cooler connection for motors with integrated cooling

Note

Signi󹪝cance of the 7th position in the Article No.

In this chapter, for certain 1FW6 Article Nos., an "x" should be inserted at the 7th position. This

means that the information provided for the speci󹪝c cooler connections and the cooling

connection adapter for the particular frame size also applies to 1FW6 High Speed built-in torque

motors.

You can directly connect the cooler through the appropriate 󹪝ttings (1/8" pipe thread,

DIN2999). Motors, sizes 1FW6050 and 1FW6060 are connected to the cooling system using

plug connections that can be simply released. For motors equipped with a precision and

main cooler, each cooling circuit can be separately fed and connected/disconnected.

Connection

6.1Cooler connection

1FW6 built-in torque motors

84 Operating Instructions, 09/2022, A5E52220812B AA
