Siemens SIMOTICS T-1FW6 - Circuit Diagram of the Motor

Types of temperature monitoring circuits
Article No. Temp-S (PTC 130°C),
Temp-F (KTY84)
Temp-S (PTC 130°C),
Temp-F (Pt1000)
Temp-S (PTC 130°C and
PTC150°C),
Temp-F (KTY84)
1FW6050-xxxxx-xxx1 *) X  
1FW6050-xxxxx-xxx3  X 
1FW6060-xxxxx-xxx1 *) X  
1FW6060-xxxxx-xxx3  X 
1FW6090-xxxxx-xxx2 *)   X
1FW6090-xxxxx-xxx3  X 
1FW6130-xxxxx-xxx2 *)   X
1FW6130-xxxxx-xxx3  X 
1FW6150-xxxxx-xxx2 *)   X
1FW6150-xxxxx-xxx3  X 
1FW6160-xxxxx-xxx2 *)   X
1FW6160-xxxxx-xxx3  X 
1FW6190-xxxxx-xxx2 *)   X
1FW6190-xxxxx-xxx3  X 
1FW6230-xxxxx-xxx2 *)   X
1FW6230-xxxxx-xxx3  X 
1FW6290-xxxxx-xxx2 *)   X
1FW6290-xxxxx-xxx3  X 
*) These motors and/or stators are now only available as spare part.
6.2.6 Circuit diagram of the motor
The circuit diagram of a stator looks like this:
557373
˽
˽˽˽
3(
:98
7HPS)7HPS6

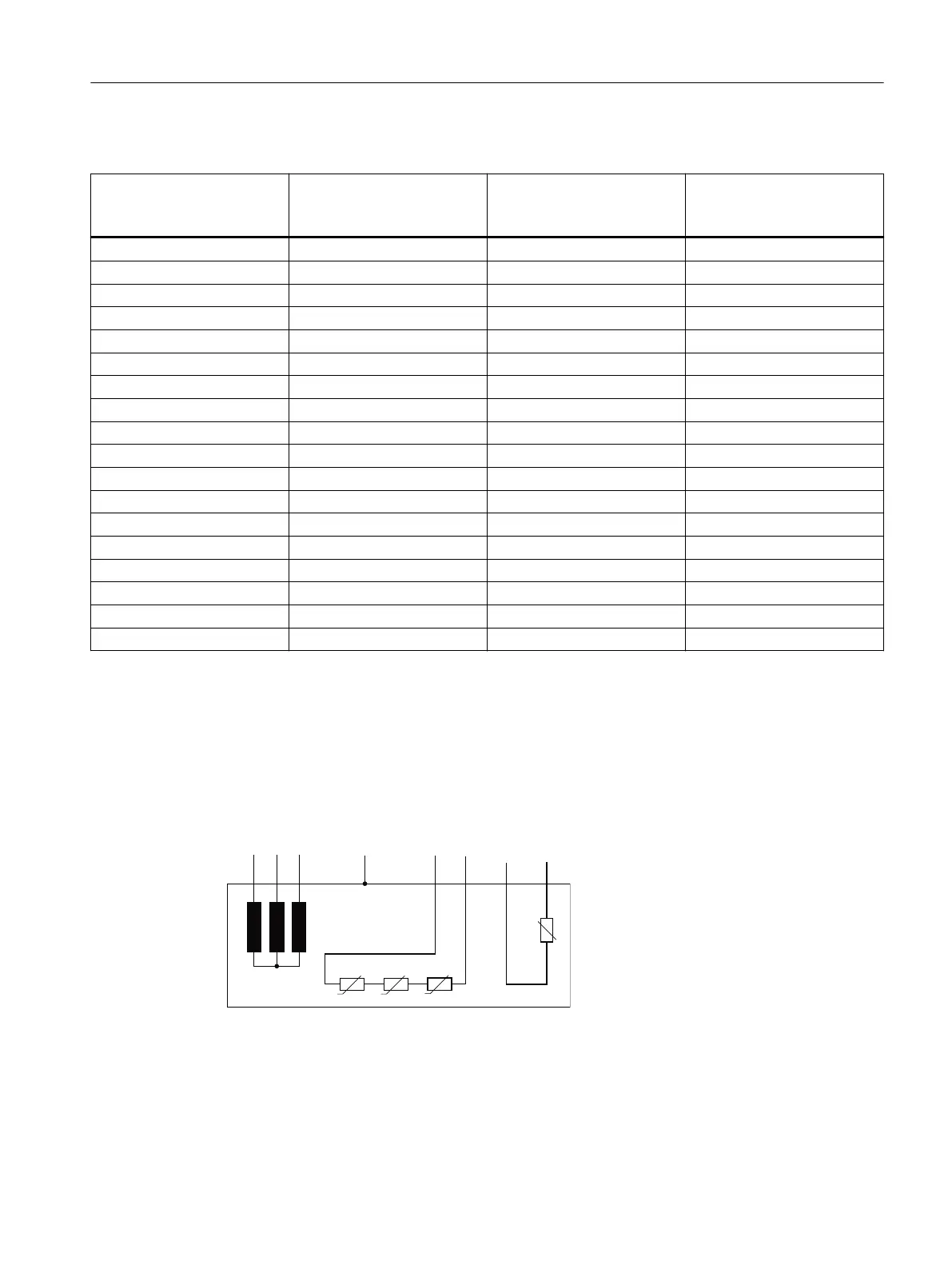

Figure6-14 Circuit diagram of a stator
Connection
6.2Electrical connection
1FW6 built-in torque motors
Operating Instructions, 09/2022, A5E52220812B AA 103
