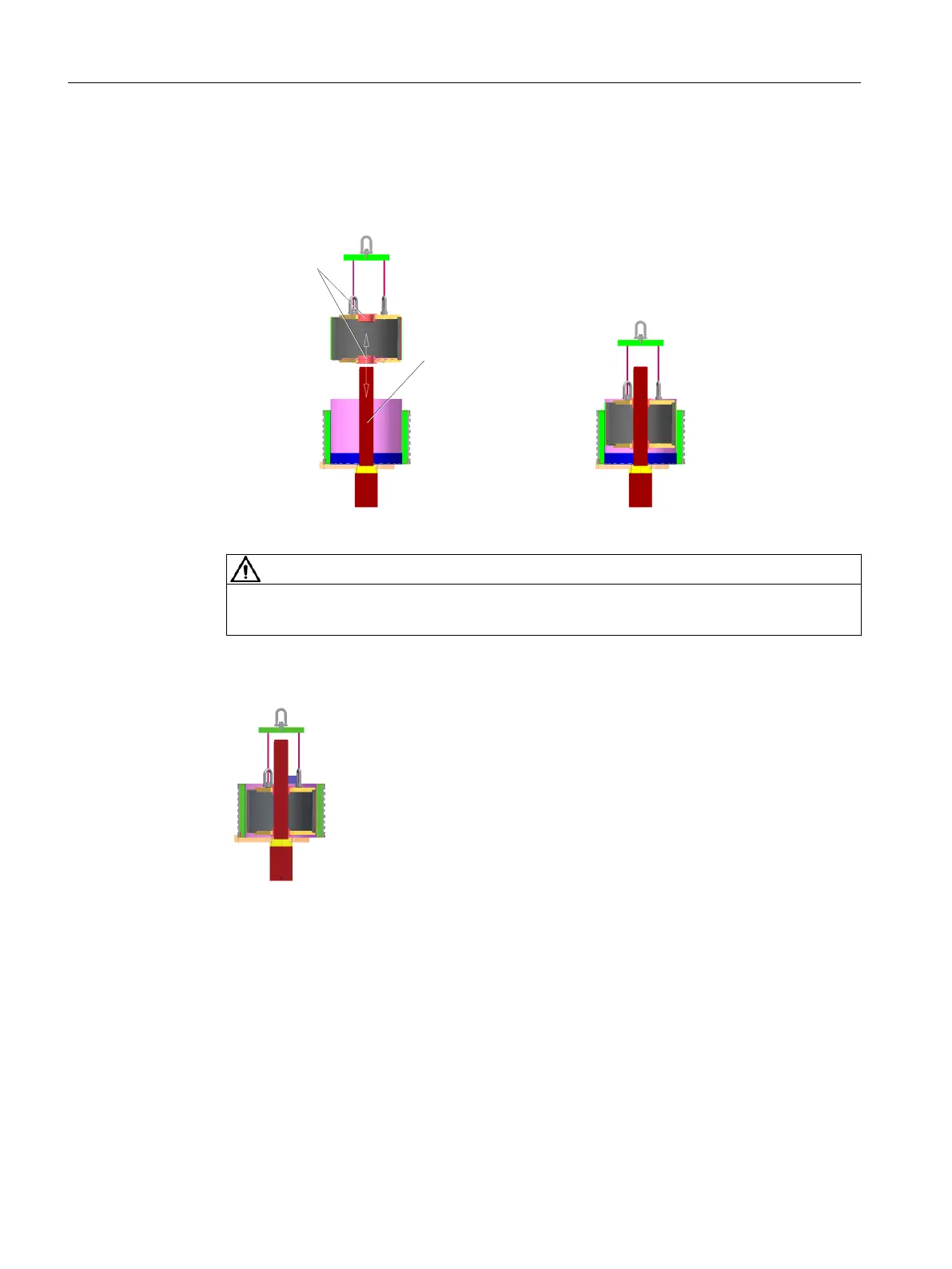

4. Carefully lower the rotor using the upper part of the installation device and carefully t it into
the lower part of the installation device in such a way that the rotor can be aligned centrically
over the sleeve bearing and shaft in the stator.
*XLGHV
MRXUQDOEHDULQJV
6KDIW
WARNING
Risk of crushing when the rotor is lowered.
• Take extreme care when performing any work.
5. Using the top part of the installation device, lower the rotor as far as it will go into the lower
part of the installation device.
Installation
5.3Installation device
1FW6 built-in torque motors
72 Operating Instructions, 09/2022, A5E52220812B AA
