Siemens SIMOTICS XP - Page 127

Spare Parts
10.9 Machine parts
1MB..5/6 shaft height 71 ... 355
Operating Instructions, 07/2020, A5E41926185A
125
10.9 Machine parts
Part
Description
Part
Description
1.00

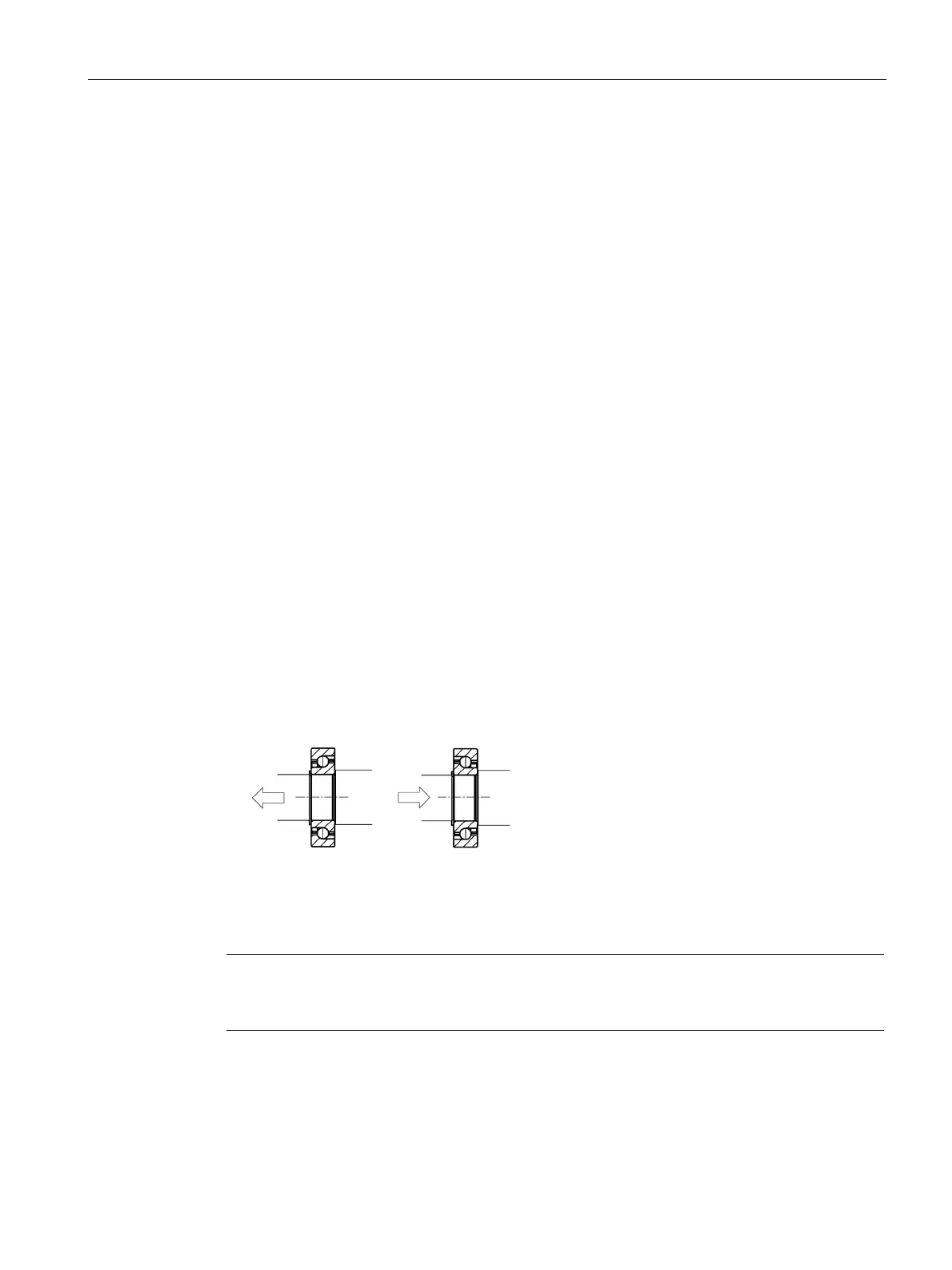

DE bearings
5.64
Spring washer
1.28
Screw
5.65
Screw
1.29
Spring washer
5.70
Terminal clamp
1.30
Screw
5.76
Terminal plate / contact bracket
1.31
Spring washer
5.78
Spring washer
1.34
Spring washer
5.79
Screw
1.40
Bearing shield
5.83
Seal
1.43
Shaft sealing ring
5.84
Terminal box cover
1.44
Bearing cover DE, inner
5.89
Screw
1.45
Screw
5.94
Screw
1.59
Locking ring
6.00
Bearings, NDE
1.60
Rolling bearings
6.02
Locking ring
1.65
Grease nipple
6.03
NDE bearing cover, inner
1.67
Bearing cover NDE, outer
6.10
Rolling bearings
1.68
Grease slinger (optional)
6.15
Shaft nut
3.00
Rotor, complete
6.20
Bearing shield
3.02
Locking ring
6.22
O ring
3.38
Feather key
6.23
Shaft sealing ring
4.00
Stator, complete
6.25
Lubrication sleeve
4.04
Eyebolt
6.27
Bearing cover NDE, outer
4.05
Washer
6.29
Screw
4.07
Housing foot
6.32
Spring washer
4.10
Spring washer
6.38
Feather key
4.11
Screw
6.39
Feather key
4.13
Grooved drive stud
6.45
Screw
4.15
Dowel pin
6.46
Spring washer
4.18
Rating plate
6.50
Screw
4.31
Grounding bracket
6.51
Spring washer
4.37
Ground terminal plate
6.52
Threaded pin
4.38
Spring washer
6.58
Spring washer
4.39
Grounding stud
6.59
Rubber sub-plate
5.00
Terminal box, complete
6.60
Cover plate
5.03
Seal
6.61
Washer
5.05
Sealing plug
6.62
Spring washer
5.06
Mounting rail
6.63
Screw
5.07
Screw
6.65
Grease nipple
5.10
Complete terminal board
6.72
Grease slinger (optional)
5.11
Terminal block
7.00
Complete ventilation
5.12
Slotted screw
7.04
Fan
5.13
Connecting bar
7.12
Locking ring
5.14
Gland plate
7.40
Fan cover
5.16
Spring washer
7.42
Sealing plug
5.17
Screw
7.48
Washer
