Siemens SIMOTICS XP - Types of Construction;Method of Installation

Description
3.3 Design
1MB..5/6 shaft height 71 ... 355
26 Operating Instructions, 07/2020, A5E41926185A
3.3.5 Balancing
As standard, the machine is designed with vibration severity level A. The rotor is dynamically
balanced with a half feather key (code "H").
Vibration severity level B can be ordered as option, and stamped on the rating plate.
See also
Mounting the drive output elements (Page 63)
3.3.6 Types of construction/method of installation
The type of construction of the machine is stated on the rating plate.

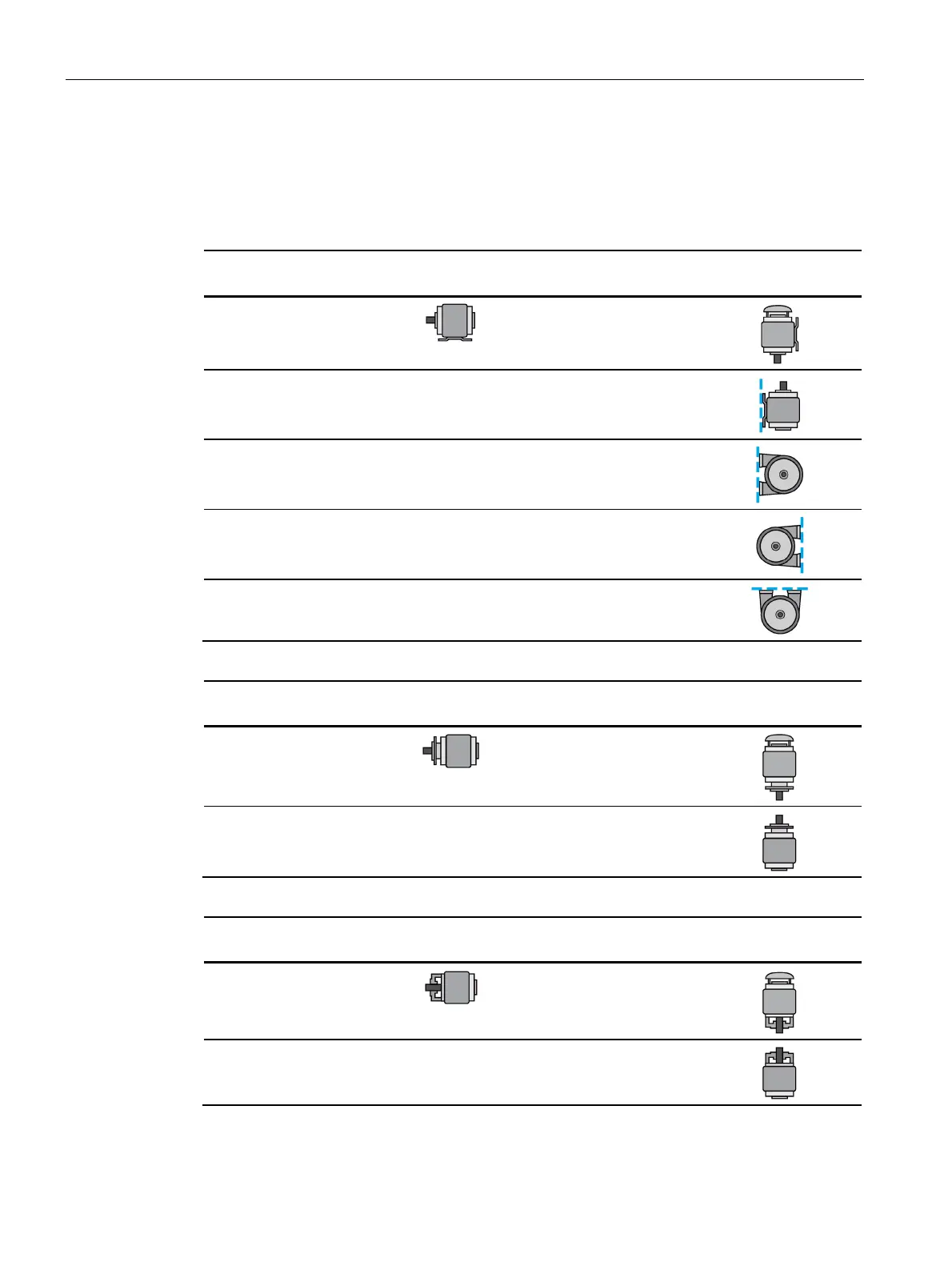

Table 3- 3 Type of construction
Basic type of construc-
tion code
Diagram Other methods of
installation
Diagram
IM B3 (IM 1001)
IM V5 (IM 1011)
IM V6 (IM 1031)
IM B6 (IM 1051)
IM B7 (IM 1061)
IM B8 (IM 1071)
Basic type of construc-
tion code
Diagram Other methods of
installation
Diagram
IM B5 (IM 3001)
IM V1 (IM 3011)
IM V3 (IM 3031)
