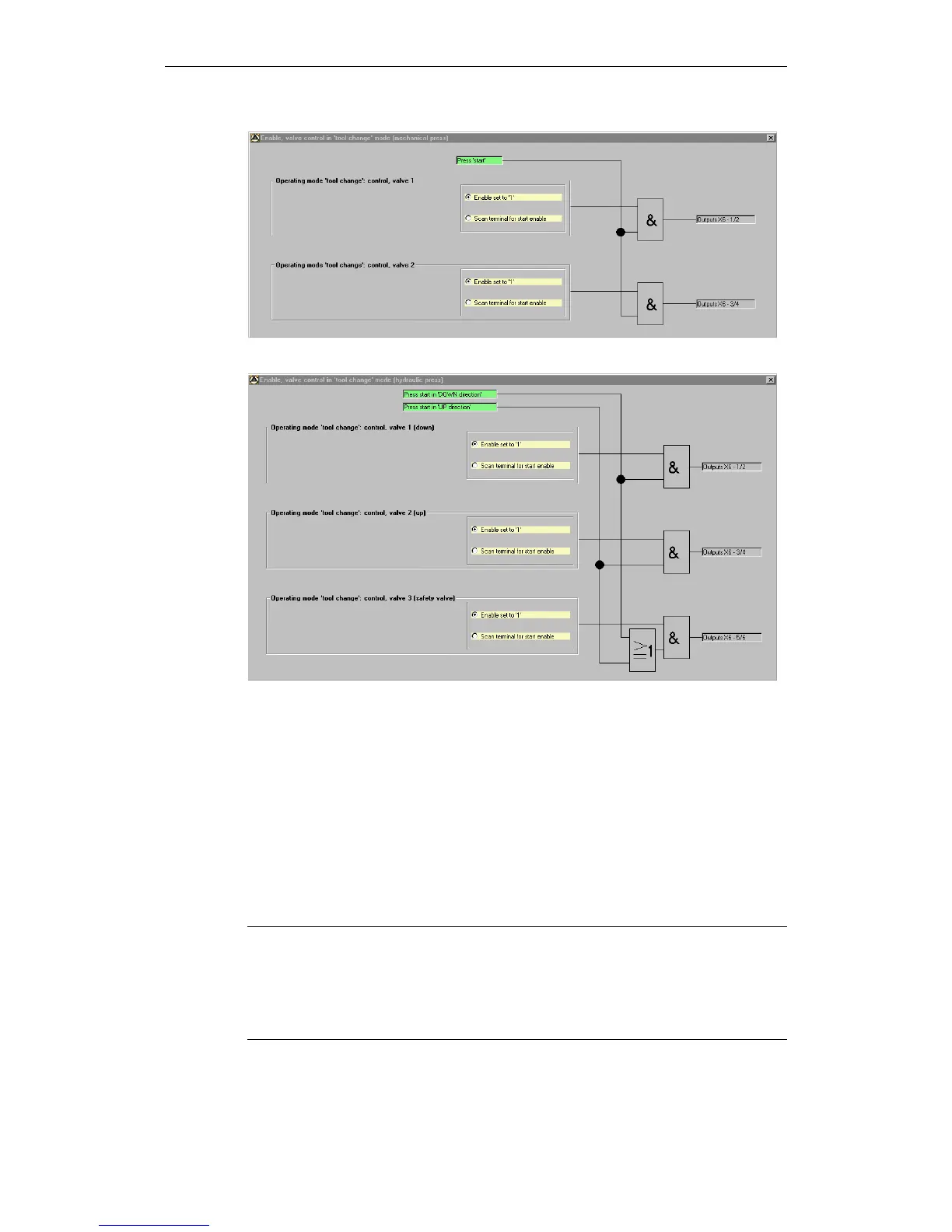

Figure 2-7 Valve control of mechanical press (mechanical operation)
Figure 2-8 Valve control of hydraulic press (hydraulic operation)
2.2.5 Automatic continuous stroke (operating mode 5)
Definition
This operating mode differs from the continuous mode in that two steps are
required to enable the machine for the first time:
• First, the automatic continuous stroke mode is enabled using the two-hand
control.
• Then the machine can be started by an external enable signal via the terminal.
Note
• If at the time of the two-hand activation there is an external enable signal, the
machine starts immediately.
• In this mode, the two-hand control acts as a command device only (not a
safety device). The operator must be protected by additional safety
equipment, e.g. ESPE!
