2.5 Installation
Installation
1. Place the component on the DIN rail.
2. Snap the component on to the DIN rail. Make sure that the mounting slides at the rear latch
into place.
3. You can now move the component on the DIN rail to the left or to the right to its final position.
Disassembly
3XVKFOLS
GRZQZDUGV
6ZLYHOWKH
PRGXOHIRUZDUG
0RXQWLQJVOLGH

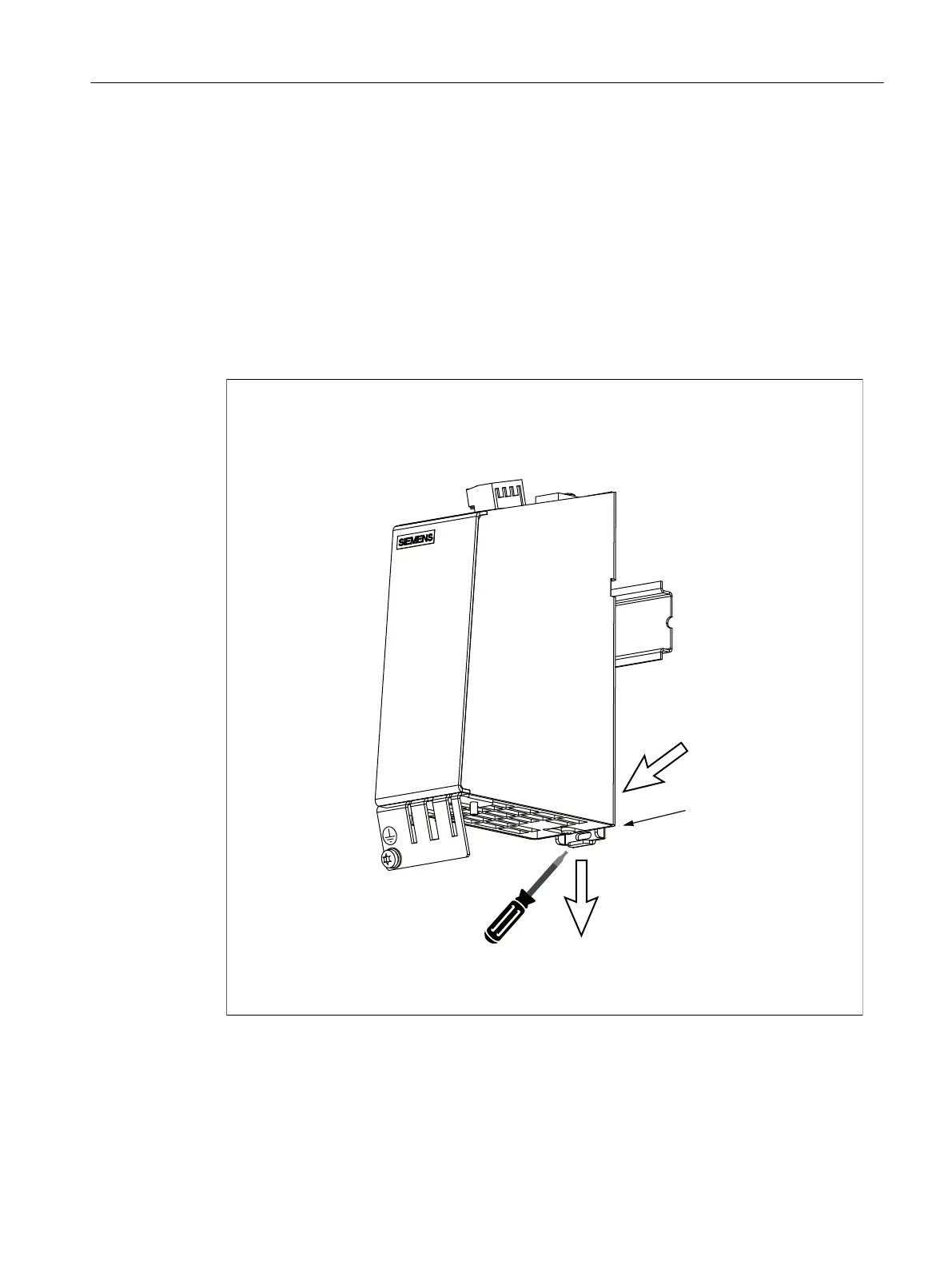

Figure 2-4 Releasing the component from a DIN rail
Terminal Module TM15
2.5 Installation
TM15 / TM17 High Feature Terminal Modules
Manual, 11/2016 29
