Parameter
Number
Description
Display
Setting
(Default)
Notes
P05 RUN/STOP mode
(see section 5.1.1 for detailed
explanation)
000
001
002
003
004
005
006
007
008
009
(000)
Ramp down; edge–triggered; trip inactive.
Ramp down; level–triggered; trip inactive.
Free run; edge–triggered; trip inactive.
Free run; level–triggered; trip inactive.
Ramp down; edge–triggered; trip active.
Free run; edge–triggered; trip active.
Ramp down; level–triggered; trip active.
Free run; level–triggered; trip active.
Ramp down; push–button control.
Free run; push–button control.

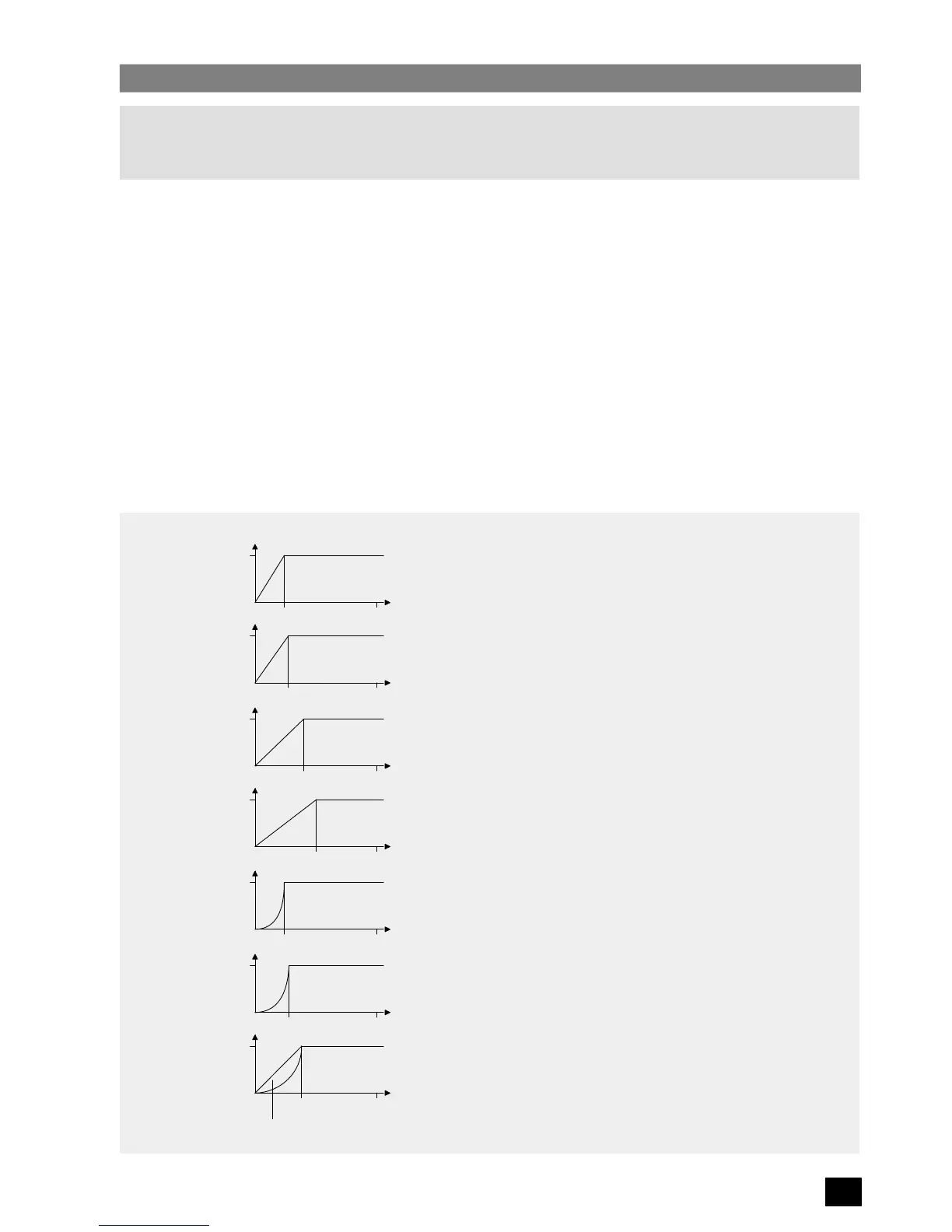

P06 Voltage to frequency curve selection
VOLTAGE
FREQUENCY
50
100
400
VOLTAGE
FREQUENCY
60
100
400
VOLTAGE
87
100
FREQUENCY
400
VOLTAGE
60
100
VOLTAGE
100
VOLTAGE
50
100
FREQUENCY
400
FREQUENCY
FREQUENCY
400
400
VOLTAGE
Knee Point
100
FREQUENCY
400
P15
Curve type
P16
120
000
001
002
003
004
005
006
(000)
[001]
Linear 0 – 50 Hz
100% 50 – 400 Hz
Linear 0 – 60 Hz
100% 60 – 400 Hz
Linear 0 – 87 Hz
100% 87 – 400 Hz
Linear 0 – 120 Hz
100% 120 – 400 Hz
Voltage
∝ (frequency)
1.5
0 – 50 Hz
100% 50 – 400 Hz
(Suitable for use with pumps and fans.)
Voltage
∝ (frequency)
1.5
0 – 60 Hz
100% 60 – 400 Hz
(Suitable for use with pumps and fans.)
User–defined curve.
When this curve is selected, the ‘knee–point’ and curve type must be
selected using parameters P15 and P16.
