Accessories
8.7 Line reactor
Power Module PM240-2
Hardware Installation Manual, 01/2020, A5E33294624B AL
131

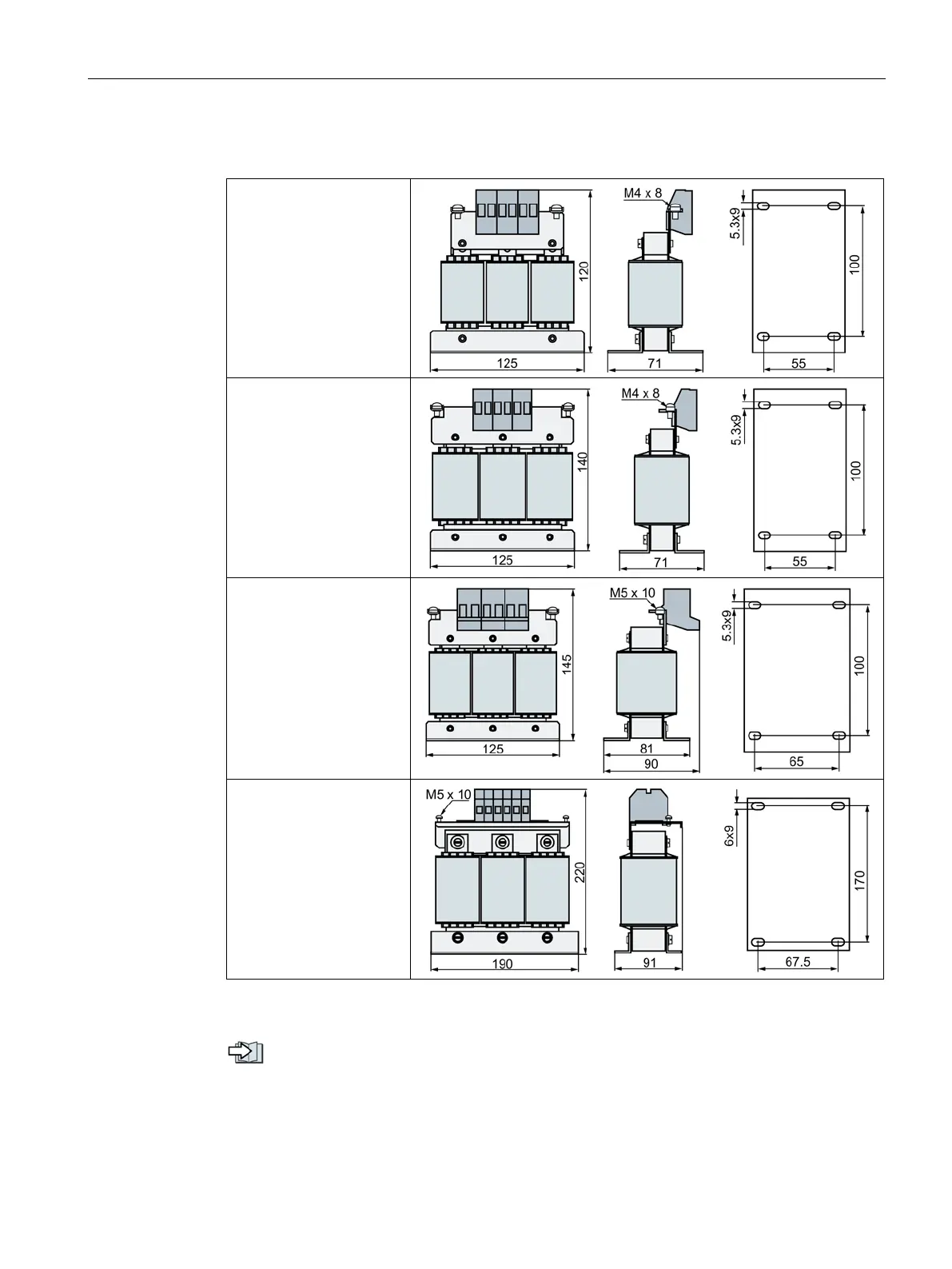

Dimensions [mm] and drilling patterns
6SL3203-0CE13-2AA0
6SL3203-0CE21-0AA0
6SL3203-0CE21-8AA0
6SL3203-0CE23-8AA0
Mount the line reactor using M5 screws, nuts and washers. Tightening torque: 6 Nm
Assignment of line reactor to converter:
Table 8-4 Assignment table (Page 132)
