4.7 Connecting encoders
Feed an encoder cable through the floor of the cabinet
Cable entry (Page 16)
Encoders that can be connected
The encoder connection interface is designed for the 1XP8024-21 encoder.
A SIMOGEAR geared motor with a 1XP8024-21 encoder is to be ordered with the encoder
option Q79.
You will find additional information about the encoder in the Internet:
Installation instructions for 1XP8024-21 SSI/HTL absolute encoders (https://
support.industry.siemens.com/cs/ww/en/view/88653897)
Catalog MD 50.1: SIMOGEAR Geared Motors (https://support.industry.siemens.com/cs/
ww/en/view/109746934)
Connecting the encoder cable
Connect the encoder to the inside of the inverter box.

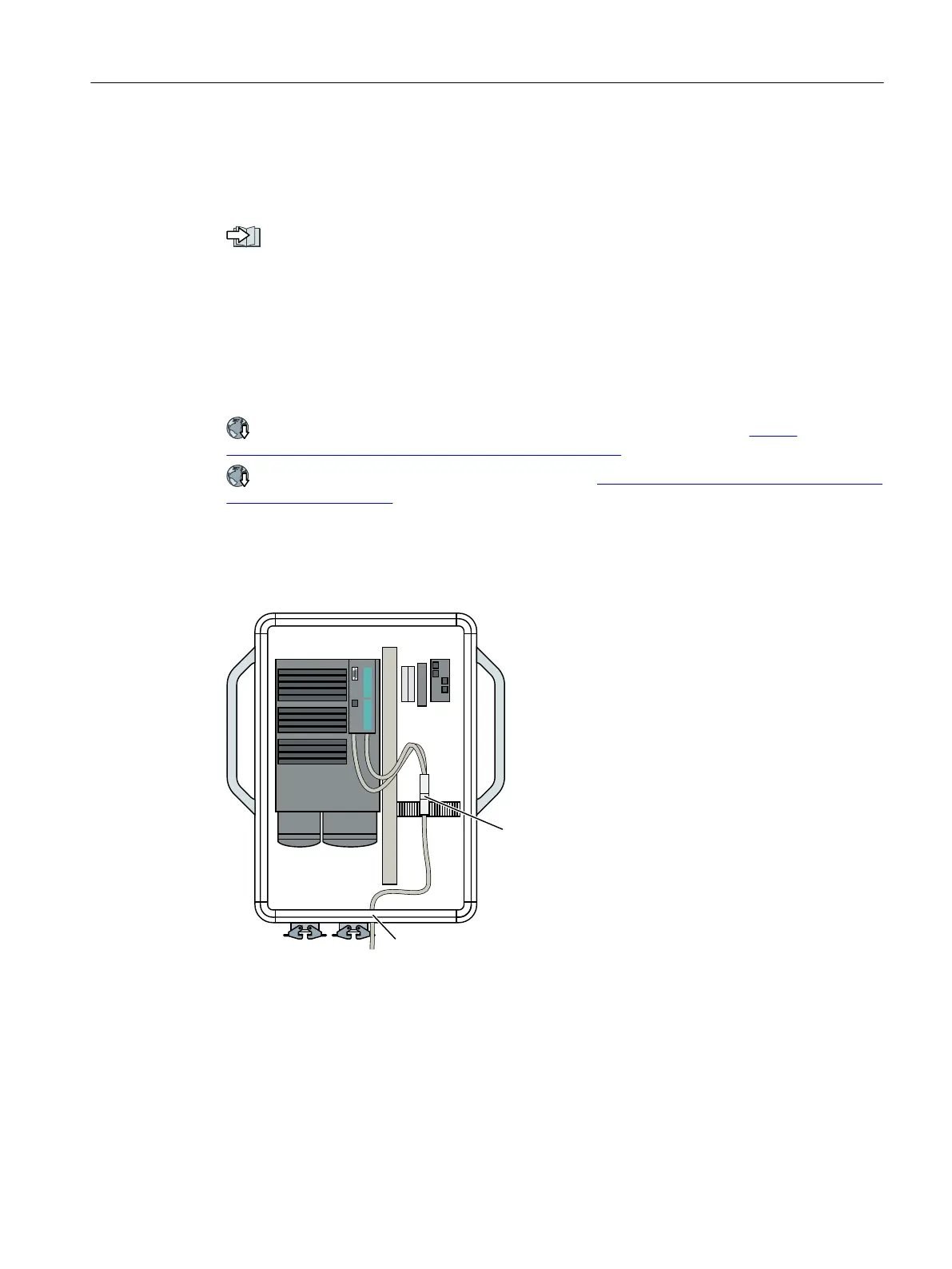

Figure 4-6 Encoder connection to -XGE1
Connection
4.7 Connecting encoders
Distributed inverter box
Manual, 06/2018, A5E43491109B AB 19
