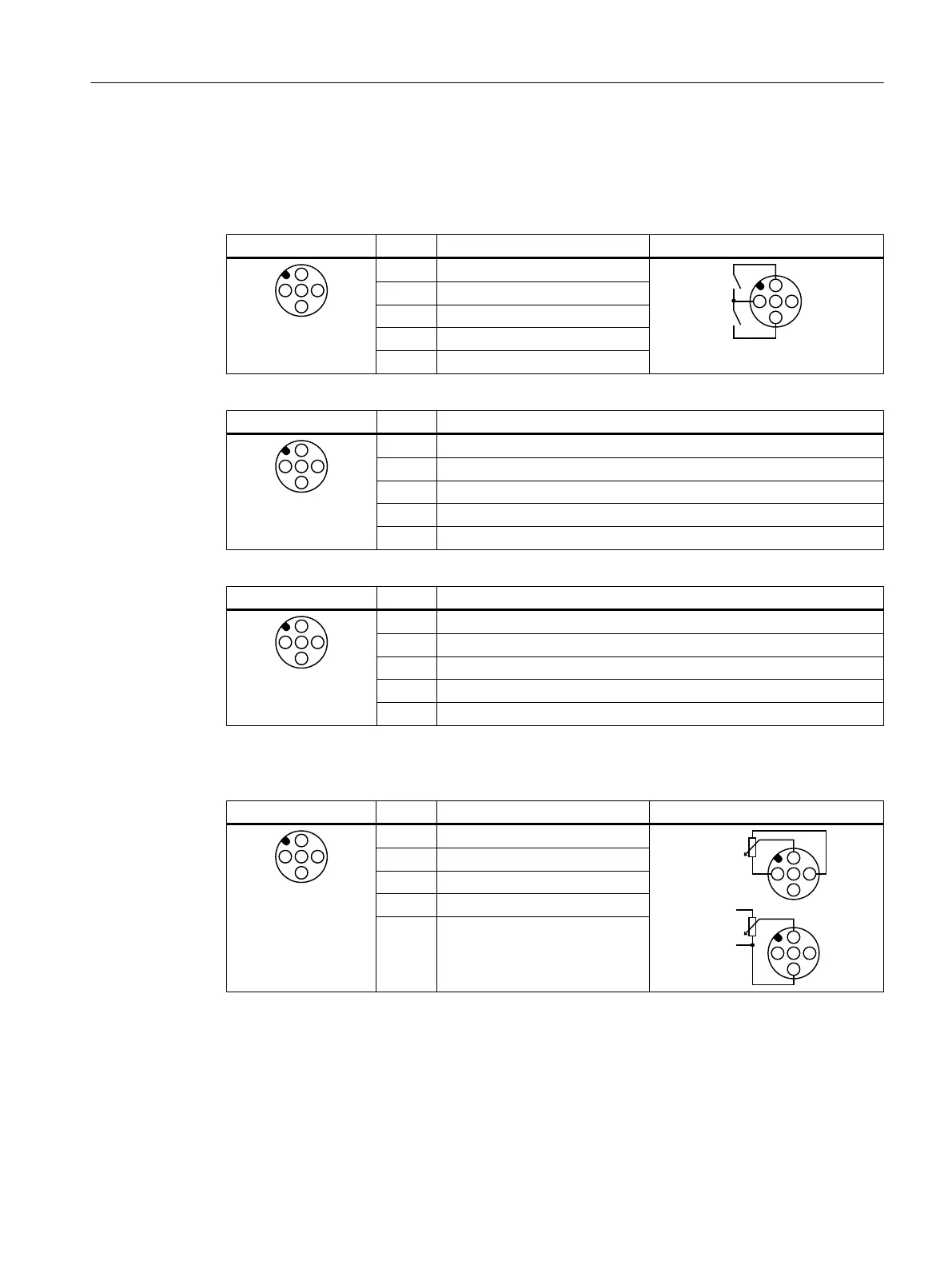

4.3 Connecting inputs and outputs
Connecting digital inputs
-X0, M12, socket Pin Assignment Connection example
1 24 V output
2 Digital input DI 0
3 0 V
4 Digital input DI 1+
5 PE
-X1, M12, socket Pin Assignment
1 24 V output
2 Digital input DI 2
3 0 V
4 Digital input DI 3+
5 PE
-X2, M12, socket Pin Assignment
1 24 V output
2 Digital input DI 4
3 0 V
4 Digital input DI 5+
5 PE
Connecting analog inputs
-X3, M12, socket Pin Assignment Connection examples
1 10 V output
2 Analog input AI 0+
3 0 V
4 Analog input AI 0-
5 PE
Connection
4.3 Connecting inputs and outputs
Distributed inverter box
Manual, 06/2018, A5E43491109B AB 15
