Siemens SINAMICS Intelligent Operator Panel User Manual

Options
7.1 Door mounting kit
Intelligent Operator Panel (IOP)
106 Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF

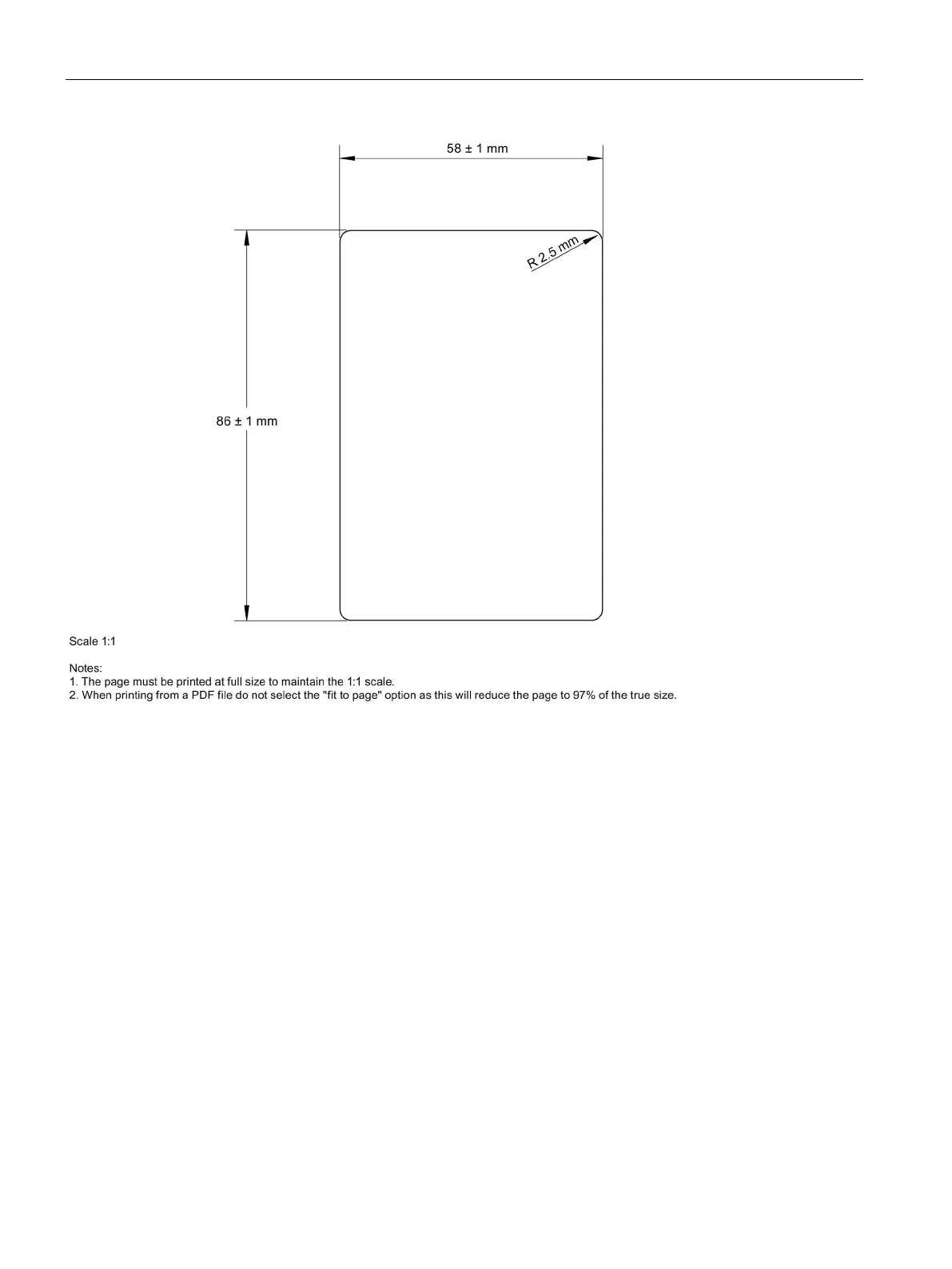

Figure 7-2 IOP DMK drill pattern (Scale 1:1)
The depth of the panel or cabinet door should be between 1 mm to 3 mm
The IOP Door Mounting Kit can be ordered using the following order number:
6SL3256-0AP00-0JA0
The DMK contains the following items:
● Door seal
● Door mounting brackets (x 4)
● Retaining screws (x 4)
● RS232 cable (5 m)

Siemens SINAMICS Intelligent Operator Panel Specifications

General

Brand	Siemens
Model	SINAMICS Intelligent Operator Panel
Category	Control Panel
Language	English
