6.6 Extras
Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
73
6.6
Extras

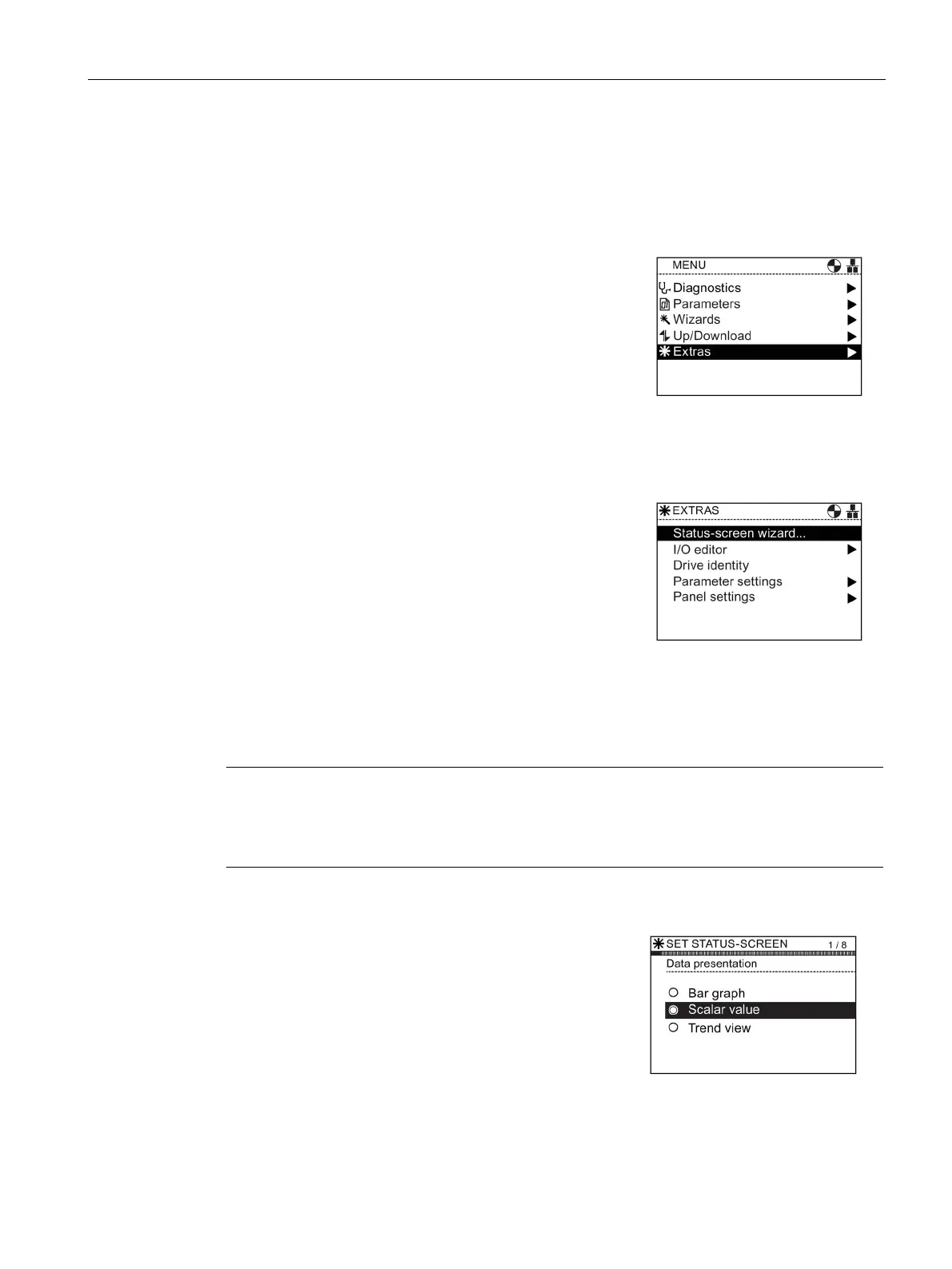

Overview
The Extras menu presents a number of options for the co
n-
figuration of the IOP, these are:
•
Status-screen wizard
•
I/O Editor
•
Drive identity
•
Parameter settings
•
Panel settings
Status-screen wizard
The status
-screen wizard allows the user to configure the
information displayed on the status screen. By default it
displays output voltage and output frequency of the Inverter.
These can be cha
nged by using the wizard to select other
physical values of the Inverter. Displayed units of value can
be specifically adapted using known conversion factors and
with the addition of an offset value to allow the units of
measure to be displayed as required
for the users applica-
tion.
Scalar value
The bar graph (default status screen) and the Scalar value are setup using a similar
procedure. The example below show how to setup the Scalar value status screen.
Note
Scalar view limits for the SINAMICS G110D
Normally, four values can be displayed on the IOP in scalar view, but when using the IOP in
conjuction with the SINAMICS G110D only two values can be displayed on the IOP screen.
1.
From the Set Status
-Screen menu select "Scalar
Va
lue".
