Control
5
Overview
The Control menu allows the user to change the following settings in real-time:
● Setpoint
● Reverse
● Jog
● Custom Hand mode
● Startup in Hand mode
● Hand/Auto disable
The control menu is accessed from the menu at the bottom-centre of the Status screen, as
shown below.

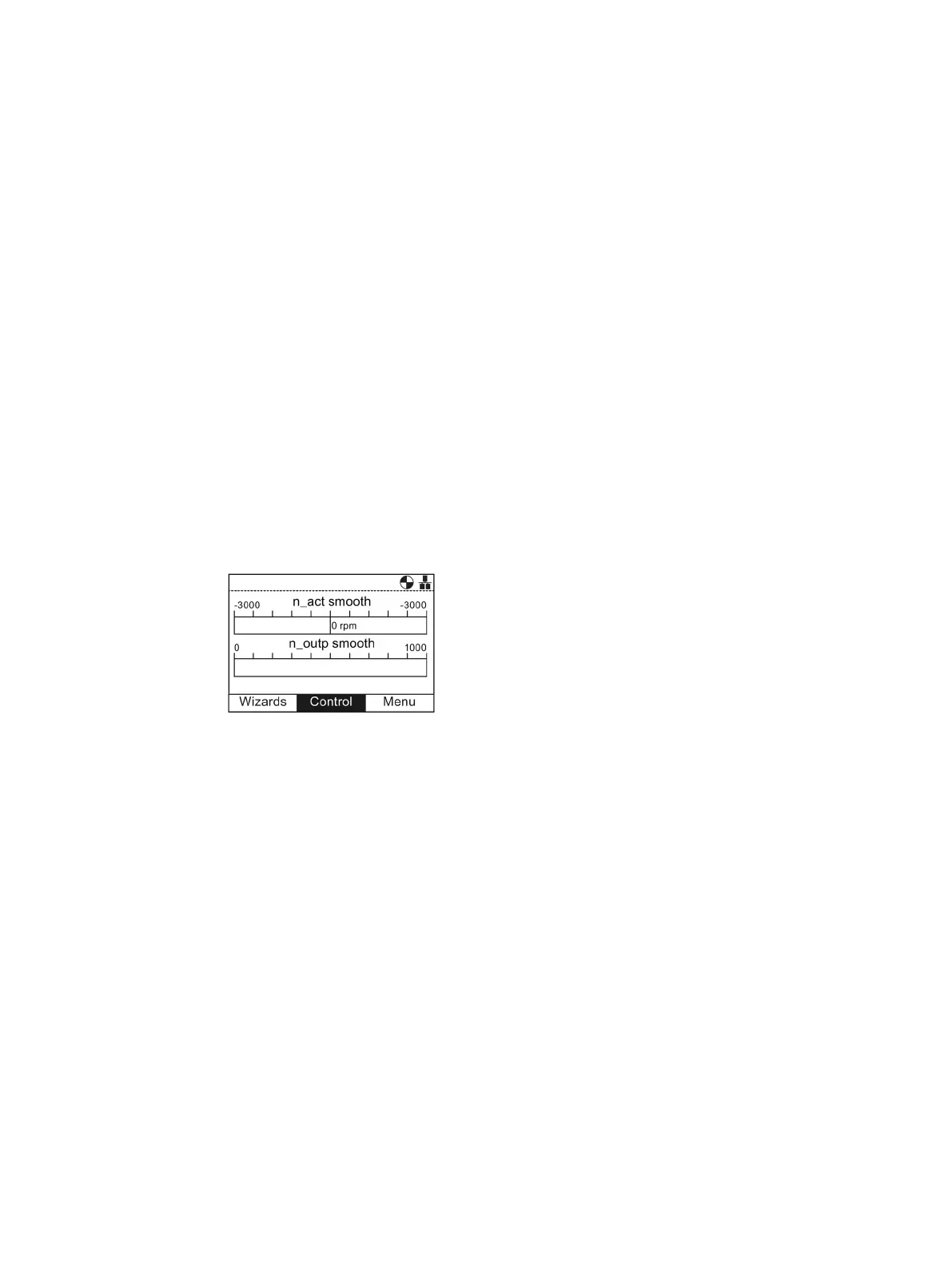

Figure 5-1 Status screen with the Control Menu highlighted
