Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
105
Options
7
7.1
Door mounting kit
Door mounting kit
To allow the IOP to be mounted into the door of a cabinet, the door mounting kit (DMK) has
been designed. This will allow the IOP to be fitted to the front of a panel or door and be IP54
rated.
The fitting of the DMK is accomplished as shown in the figure below.

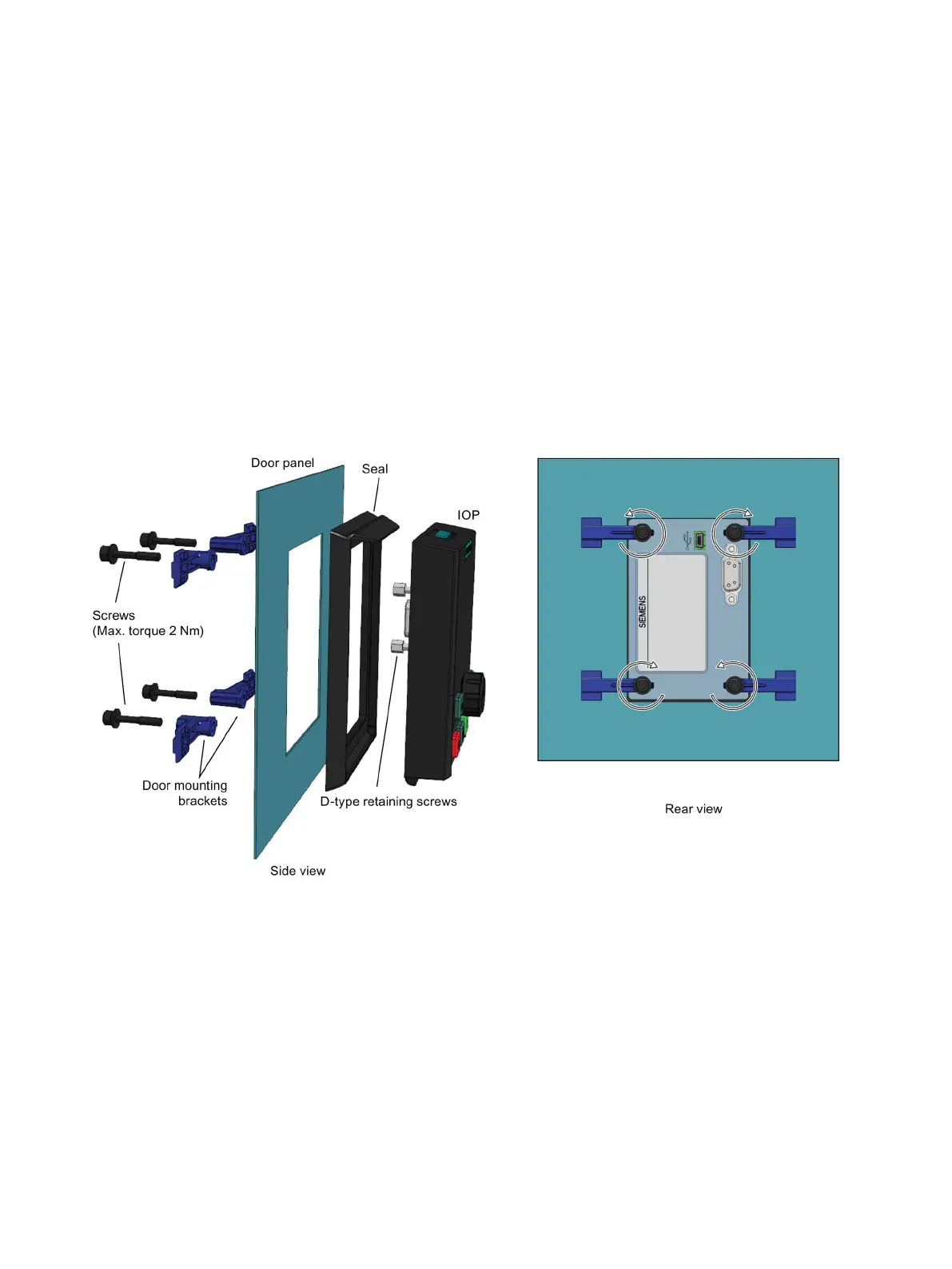

Figure 7-1 Installation of IOP door mounting kit
Prior to the installation of the DMK, it is necessary to create a hole in the panel or cabinet
with the dimensions as shown in the figure below:
