RS232 cable specifications
The RS232 cable can have a maximum length of 10 metres without restrictions. The RS232
cable can be longer than 10 metres and up to a maximum length of 15 metres, but the
communications speed cannot excedd 57,600 bauds.

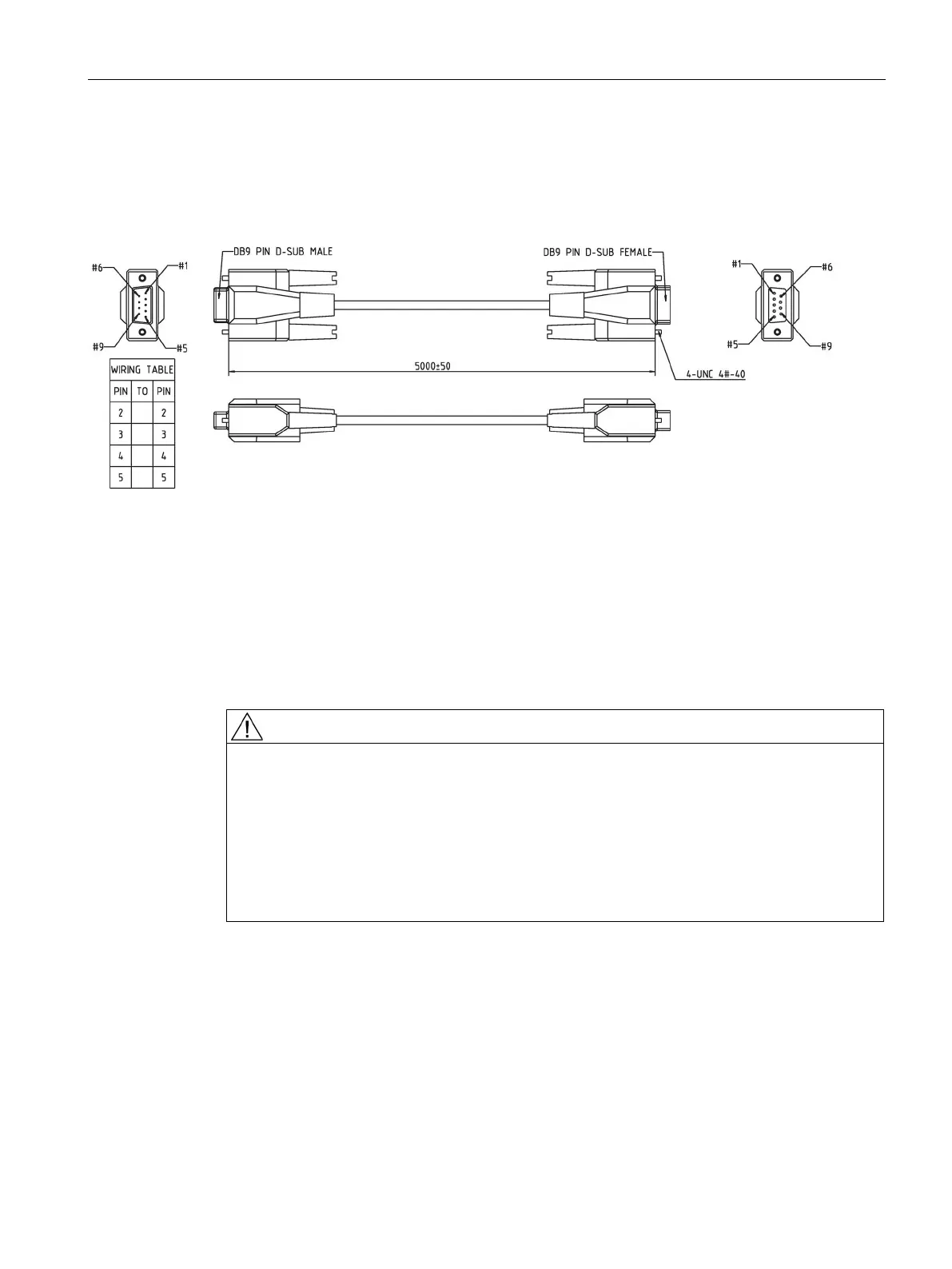

Figure 7-3 9-way male to female D-Type cable Specifications
7.2
Hand-held device
hand-held device
WARNING
Charging unit
• The charging unit for the rechargeable batteries is contained within the hand-
held device
for the sole purpose of charging rechargeable batteries.
• The charging unit contained within the hand-held device should not be used with
standard "AA" batteries as this will result in damage to the batteries and the hand-held
device.
• Only the supplied power supply unit should be used with the IOP. The use of any other
power supply units could seriously damage the hand-held kit.
