Control
Intelligent Operator Panel (IOP)
46 Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
Setpoint
The setpoint value determines the speed at which the motor runs as a percentage of its full
range of motion.

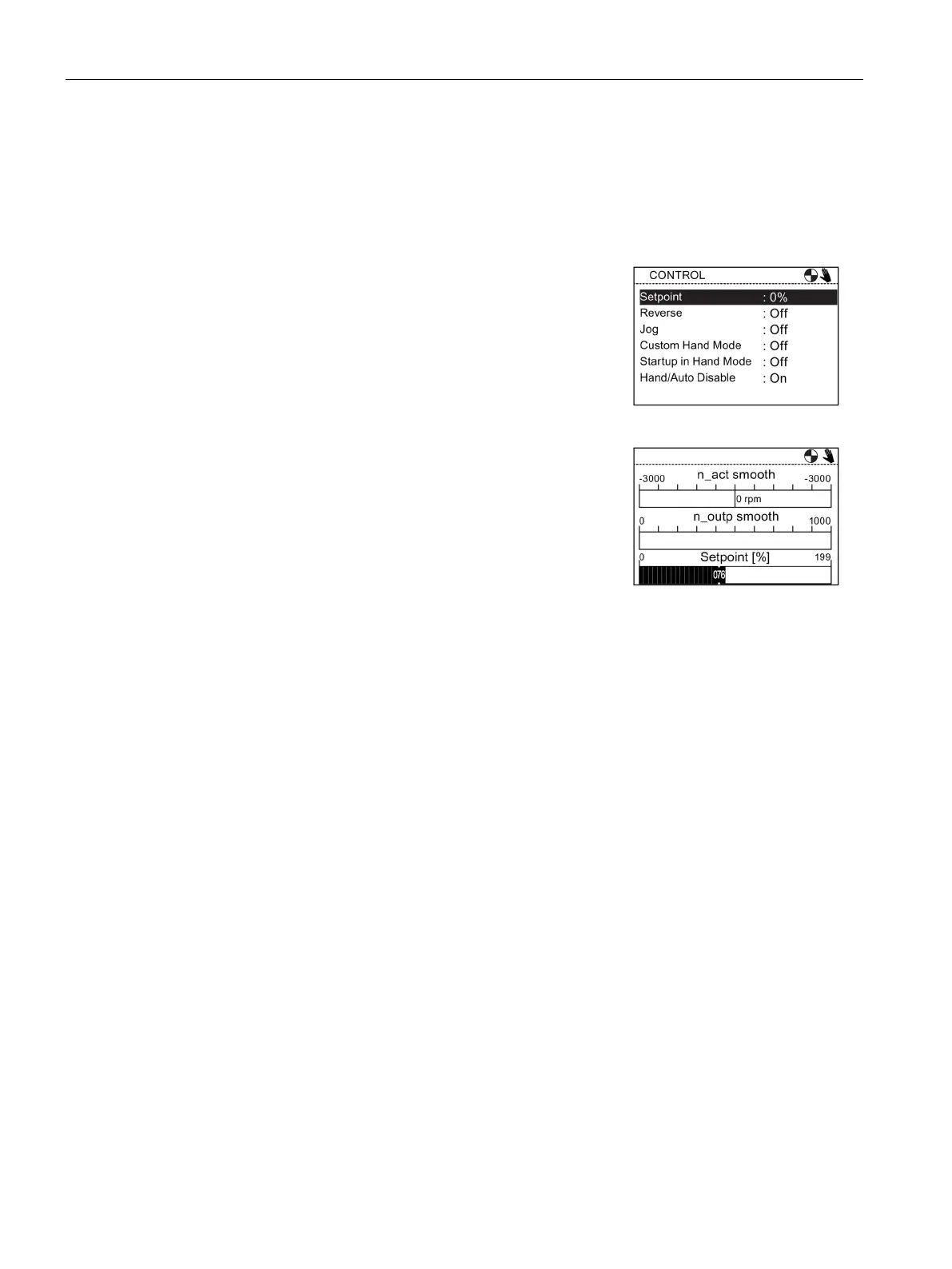

To change the setpoint, the following actions should be performed:
1.
Rotate the
Wheel
to select "
Control
".
2.
Press the
Wheel
to confirm selection.
3.
The "
Control
" screen is displayed.
4.
"
Setpoint
" is already highlighted.
5.
Press the
Wheel
to select the "
Setpoint
".
6.
The "
Setpoint
" screen is displayed.
7.
Rotate the
Wheel
to increase or decrease the setpoint.
8.
Press the
Wheel
to confirm new setpoint. If the "
Esc
" is
given a single or a long press the setpoint is also saved.
9.
The "
Control
" screen is displayed.
10.
Press "
Esc
" to return to the "
Status
" screen.
The setpo
int can only be modified from the IOP when the
IOP is in Hand mode. Changing from HAND back to AUTO
will reset the setpoint.
