Siemens SINAMICS Intelligent Operator Panel - Motor Reverse Function

Control
Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
47
Reverse
The function of the reverse command is to set the direction of rotation of the motor from its
normal forward motion.

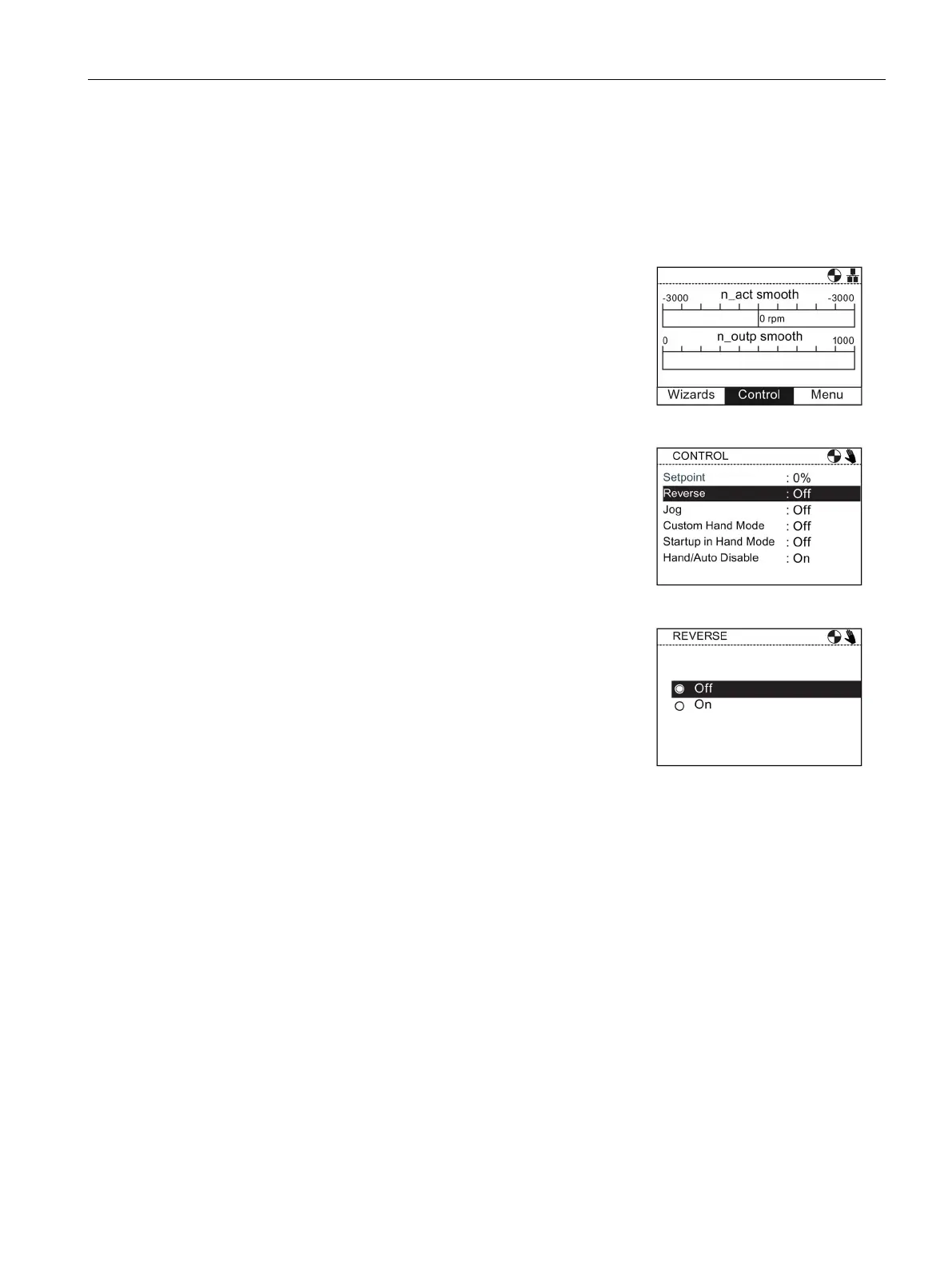

To reverse the direction of the motor, the following actions should be performed:
1.
Rotate the
Wheel
to select "
Control
".
2.
Press the
Wheel
to confirm selection.
3.
The "
Control
" screen is displayed.
4.
Rotate the
Wheel
to select the "
Reverse
" option.
5.
Press the
Wheel
to confirm selection.
6.
The "
Reverse
" screen is displayed.
7.
Rotate the
Wheel
to select "
On
" or "
Off
".
8.
Press the
Wheel
to confirm the selection.
9.
The display returns to the "
Control
" screen.
10.
Press "
Esc
" to return to the "
Status
" screen.
