6.5 Custom parameter sets
Intelligent Operator Panel (IOP)
72 Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF

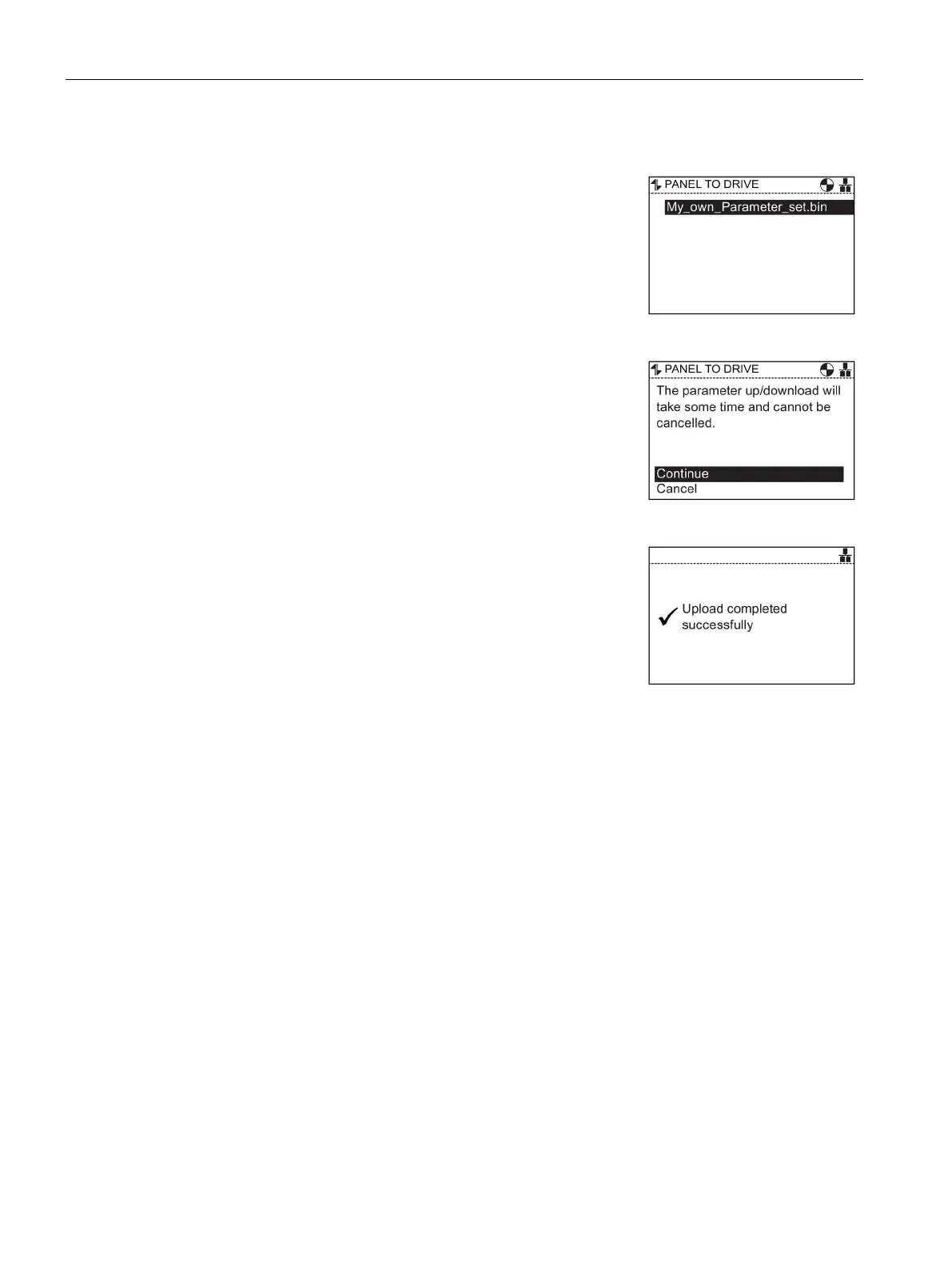

12.
Select "My_own_Parameter_set.bin
".
13.
The IOP will display a warning, select "Continue
" .
14.
The parameters will then be downloaded to the converter
and the IOP will notify the user that the download has
been su
ccessful.
Copying IOP parameter sets
When you have saved a number of parameter sets to an IOP, it is possible to copy your
saved parameter sets to another IOP using the simple process outlined below.
1. Connect the IOP via the USB connector to a PC.
2. The IOP will enter the "Mass Storage Device" Mode.
3. On the PC, navigate to the "ifs/config" folder.
4. Select the parameter sets you require and save them to a new folder on the local drive of
the PC.
5. Disconnect the IOP from the PC.
6. Connect another IOP and copy the saved parameter sets to the "ifs/config" on the new
IOP.
This procedure can be repeated for any number of IOPs.
