6.5 Custom parameter sets
Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
71
8.

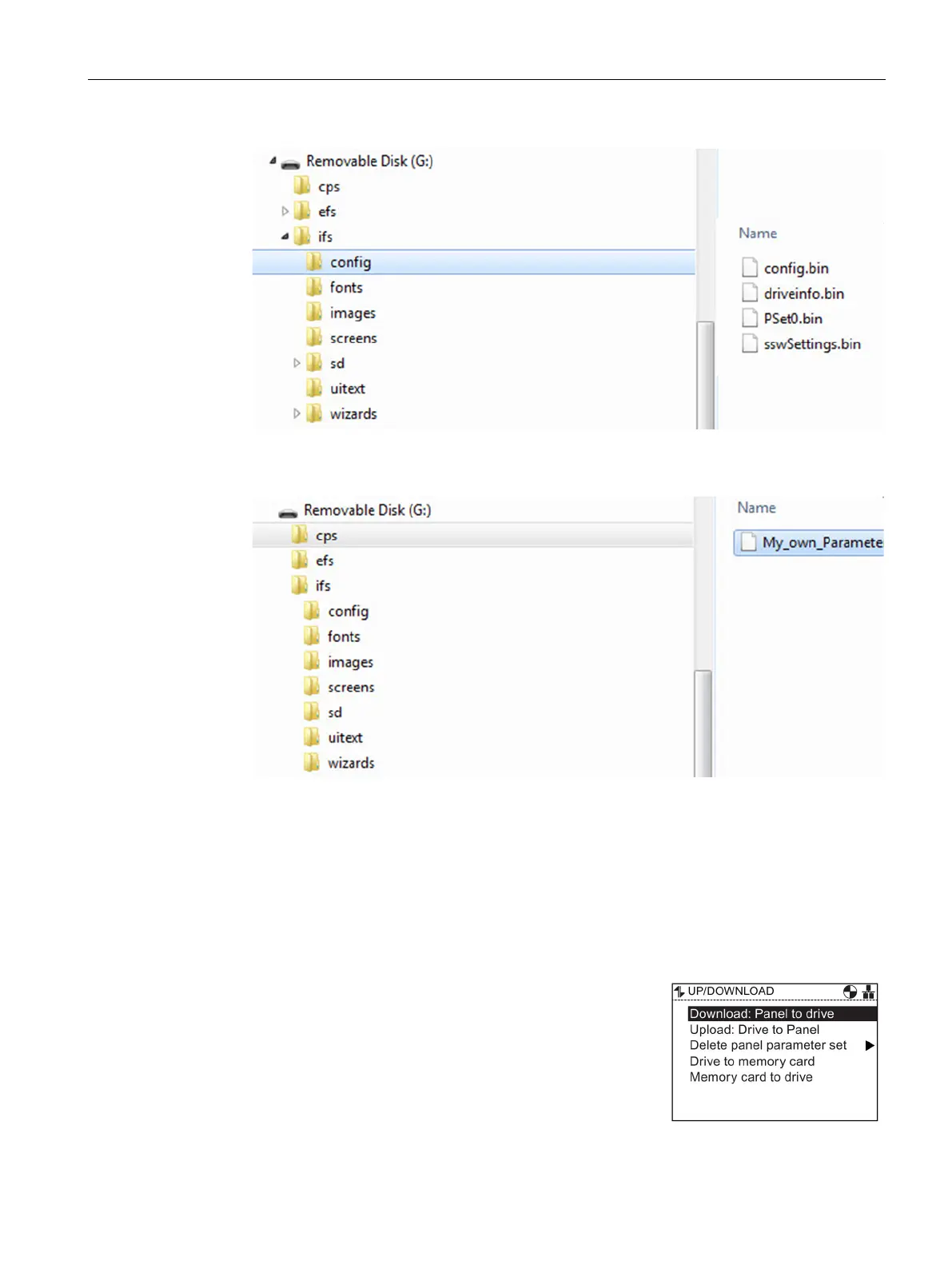

Copy the "PSet0.bin" file to the "CPS" folder
9.
Rename the "PSet0.bin
" file to
"My_own_Parameter_set.bin
"
Note: The file name can be up to 96 ANSI characters long.
10.
Disconnect the IOP from the PC and reconnect the IOP to
the Control Unit.
11.
Navigate to the "Up/Download
" and select "
Download:
Panel to drive
".
