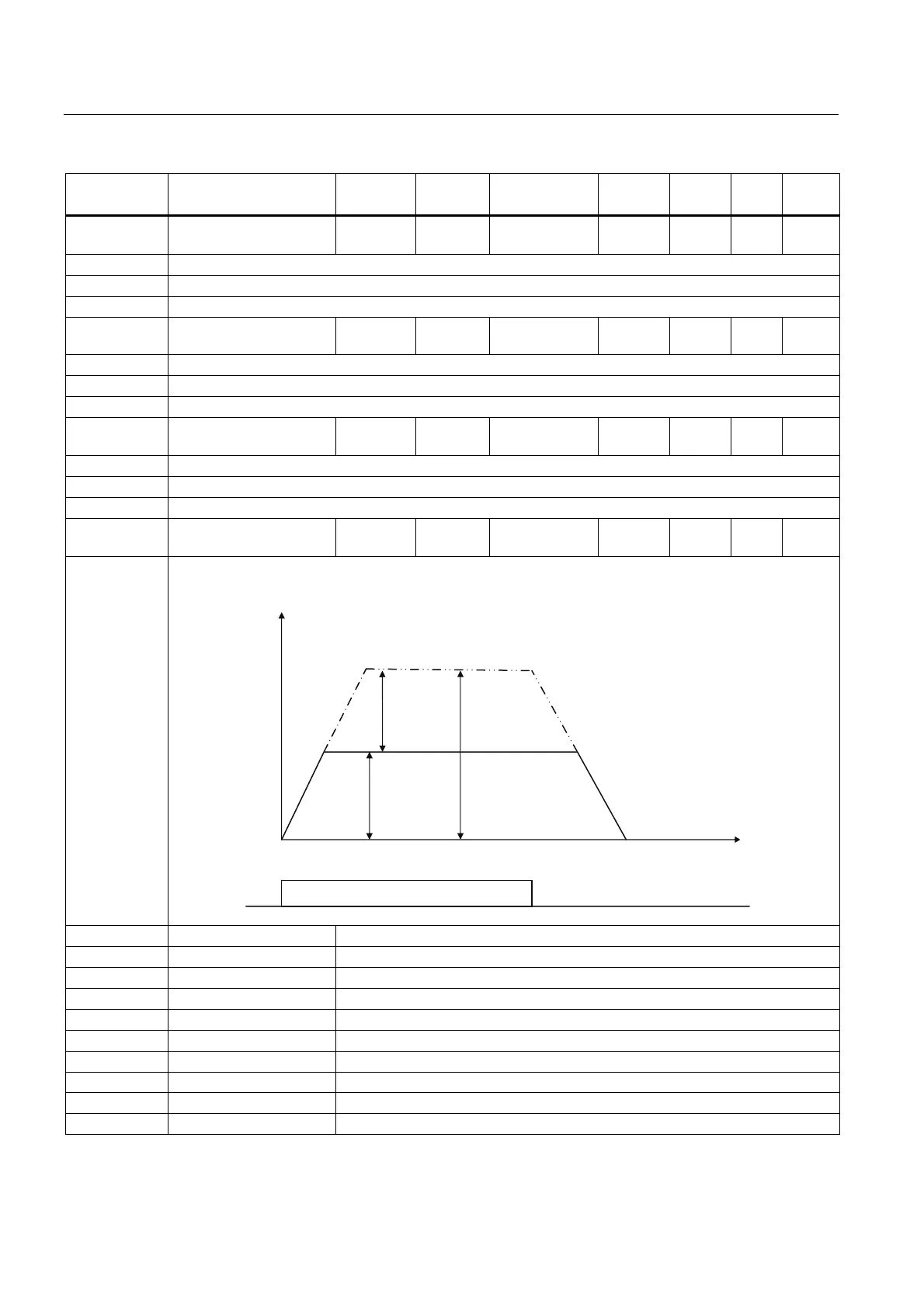

Parameter list
7.2 Parameter list
SINAMICS V20 Inverter
158 Operating Instructions, 07/2012, A5E03728167
Parameter Function Range Factory
default
Can be
changed
Scaling Data
set
Data
type
Acc.
Level
r0987[0...99] List of available
parameter numbers
- - - - - U16 4
Contains 100 parameter numbers index 700 - 799.
Index: See r0980
Note: See r0980
r0988[0...99] List of available
parameter numbers
- - - - - U16 4
Contains 100 parameter numbers index 800 - 899.
Index: See r0980
Note: See r0980
r0989[0...99] List of available
parameter numbers
- - - - - U16 4
Contains 100 parameter numbers index 900 - 999.
Index: See r0980
Note: See r0980
P1000[0...2] Selection of frequency
setpoint
0 - 77 1 C(1), T - CDS U16 1
Selects frequency setpoint source. The main setpoint is given by the least significant digit (right-hand
position) and the additional setpoint is given by the most significant digit (left-hand position). Single digits
denote main setpoints that have no additional setpoint.
2XWSXW
IUHTXHQF\
$GGLWLRQDO
VHWSRLQW
0DLQVHWSRLQW
$FWXDORXWSXW
IUHTXHQF\
5XQ
FRPPDQG
7LPH
0 No main setpoint
1 MOP setpoint
2 Analog setpoint
3 Fixed frequency
5 USS on RS485
7 Analog setpoint 2
10 No main setpoint + MOP setpoint
11 MOP setpoint + MOP setpoint
12 Analog setpoint + MOP setpoint
13 Fixed frequency + MOP setpoint
